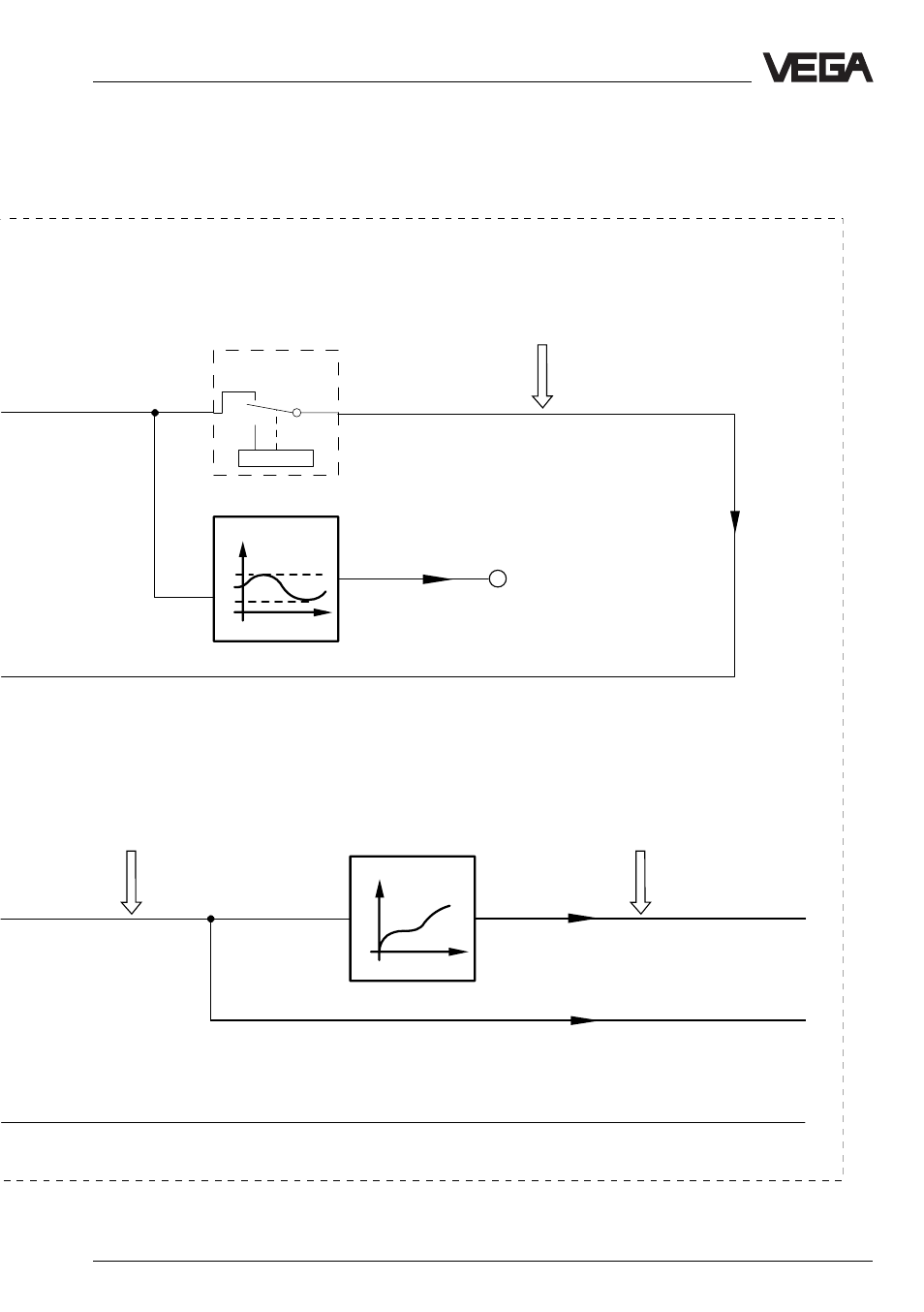

Рабочая диаграмма и параметры PA
min
max
Min/Max memory
Simulation distance value (DS_50)
[sensor unit (m,ft)]
(manuf. spec. parameter)
Simulate value
off
on
Simulation
Linearization
[Level-Volume relation]
Tab X Y value
level unit (%,m,ft )
primary value unit (%,m,ft)
Linearization
Secondary value 2
distance
[Not adjusted value (m,ft ...)]
Min/Max sensor value,
[Sensor unit (m,ft ...)]
Secondary value 1
[adjusted value (%)]
Primary value
[linearized value (%)]
% (adjusted value)
lin %
(linearized value,
vollume)
distance
A 1
A 1
A 2
A 2
A 3
A 3
Transducer Block
Out (VVO…)
PDM
VVO
FDT
PDM
VVO
FDT
MINICOM
PDM
VVO
FDT
MINICOM
