Jet Tools JWS-35X - Инструкция (Страница 43)

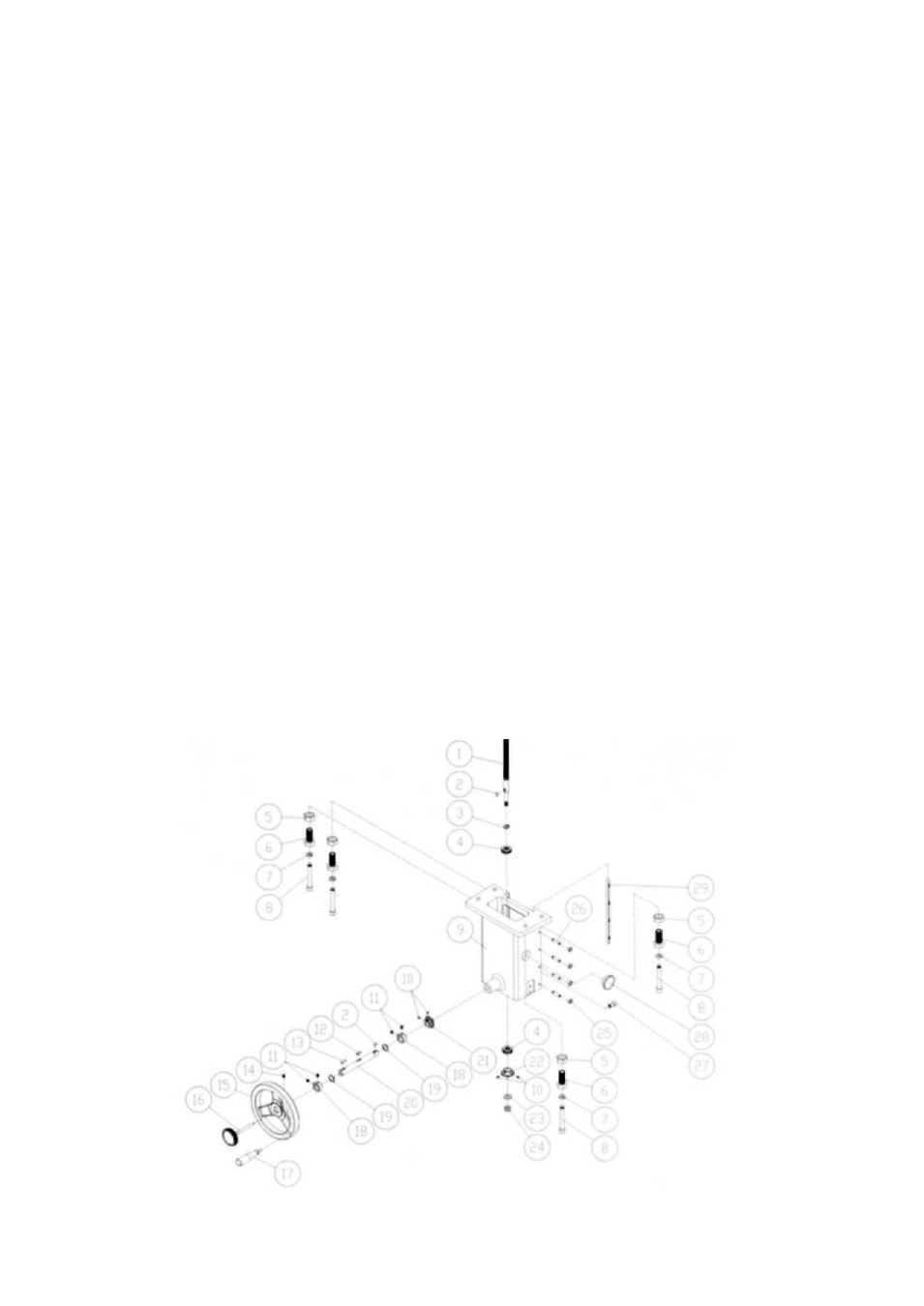

Elevator - Parts and Assembly
Index No. Part No.
Description Size Qty
1 ……………JWS35X-501 ............... Lead Screw .......................................................................................................... 1
2 .................JWS35X-502 ............... Key ............................................................................... 5x5x12 ............................ 2
3 .................PM2700-342 ............... Retaining Ring .............................................................. STW-15 .......................... 1
4 .................PM2700-503 ............... Thrust Bearing .............................................................. 51202 ............................. 2
5 ................. PM2700-504 ................ Hex Nut ........................................................................ M20-1 5P ........................ 4
6 ................. PM2700-505 ................ Adjusting Bolt ....................................................................................................... 4
7 ................. TS-2361121 ................ Lock Washer ................................................................ M12 ................................ 4
8 ................. TS-1506141 ................ Socket Head Cap Screw .............................................. M12x90 .......................... 4
9 ................. PM2700-512 ................ Housing .................................................................................................................1
10 ............... TS-1522011 ................ Socket Set Screw ......................................................... M5x6 .............................. 4
11 ............... TS-0270021 ................ Socket Set Screw ......................................................... 5/16"-18x5/16".................4
12 ............... PM2700-521 ............... Key ........................................................................................................................1
13 ............... PM2700-522 ................ Key ............................................................................... 5x5x20 ............................1
14 ............... TS-1523021 ............... Socket Set Screw ......................................................... M6x8 ...............................1
15 ............... JWS35X-515 ............... Hand Wheel ..........................................................................................................1
16 ............... JWS35X-516 ............... Knob ..................................................................................................................... 1
17 ............... JWS35X-517 ............... Handle .................................................................................................................. 1
18 ............... PM2700-519 ................ Fixing Ring ............................................................................................................ 2
19 ............... PM2700-520 ................ Washer......................................................................... M19 ................................. 2
20 ............... PM2700-523................ Shaft ..................................................................................................................... 1
21 ............... PM2700-513 ............... Worm Gear (Right rotation) ................................................................................... 1
22 ............... JWS35X-522 ............... Worm Gear (Left rotation) ..................................................................................... 1
23 ............... TS-1550071 ............... Flat Washer ................................................................. M10 ................................. 1
24 ............... TS-2342102 ................. Nylon Insert Lock Nut .................................................. M10-1.25P ...................... 1
25 ............... TS-1540061 ............... Hex Nut .........................................................................M8 ................................... 4
26 ............... PM2700-508................ Socket Set Screw ........................................................ M8x30 ............................. 4
27 ............... TS-1505021 ............... Socket Head Cap Screw .............................................. M10x20 ........................... 1
28 ............... PM2700-450................ Plug ...................................................................................................................... 1
29…………..PM2700-510…………..Gib……………………………………………………………………………………… 1
