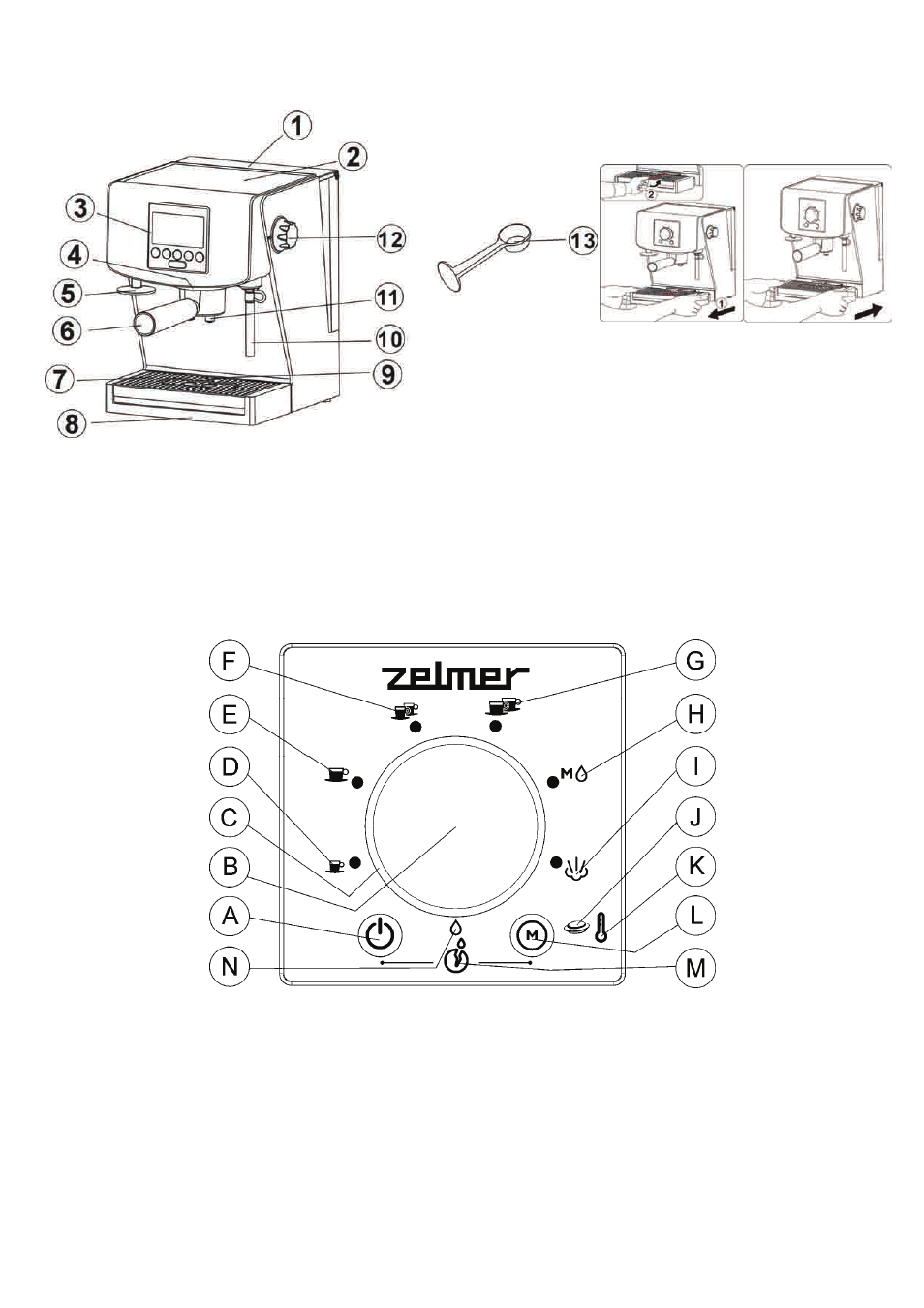

2. Machine design
Before start to use the appliance
first time, remove the water
release hole protective label
from the drip tray plate.
1. Removable water tank with the cover
8. Drip tray
2. Cup heating plate
9. Emptying drip tray full indicator
3. Control panel
10. Steam/cappuccino wand
1. Coffee dispenser
4. Brew head
1
5. Tamping device
12. Steam release knob
6. Filter holder
13. Measuring/tamping spoon
7. Drip tray grid
3. Control panel
Power On/Off button
Manual brewing coffee in
A
H
dicator
B Espresso machine’s knob
C Knob indicator
D Single small cup indicator
I Steam indicator
J Brewing coffee in espresso bags mode indicator
K Temperature level indicator
E Single big cup indicator
L Temperature/coffee in espresso bags/ground coffee button
F Two small cups indicator
M Descaling indicator
G Two big cups indicator
N Low water level indicator
