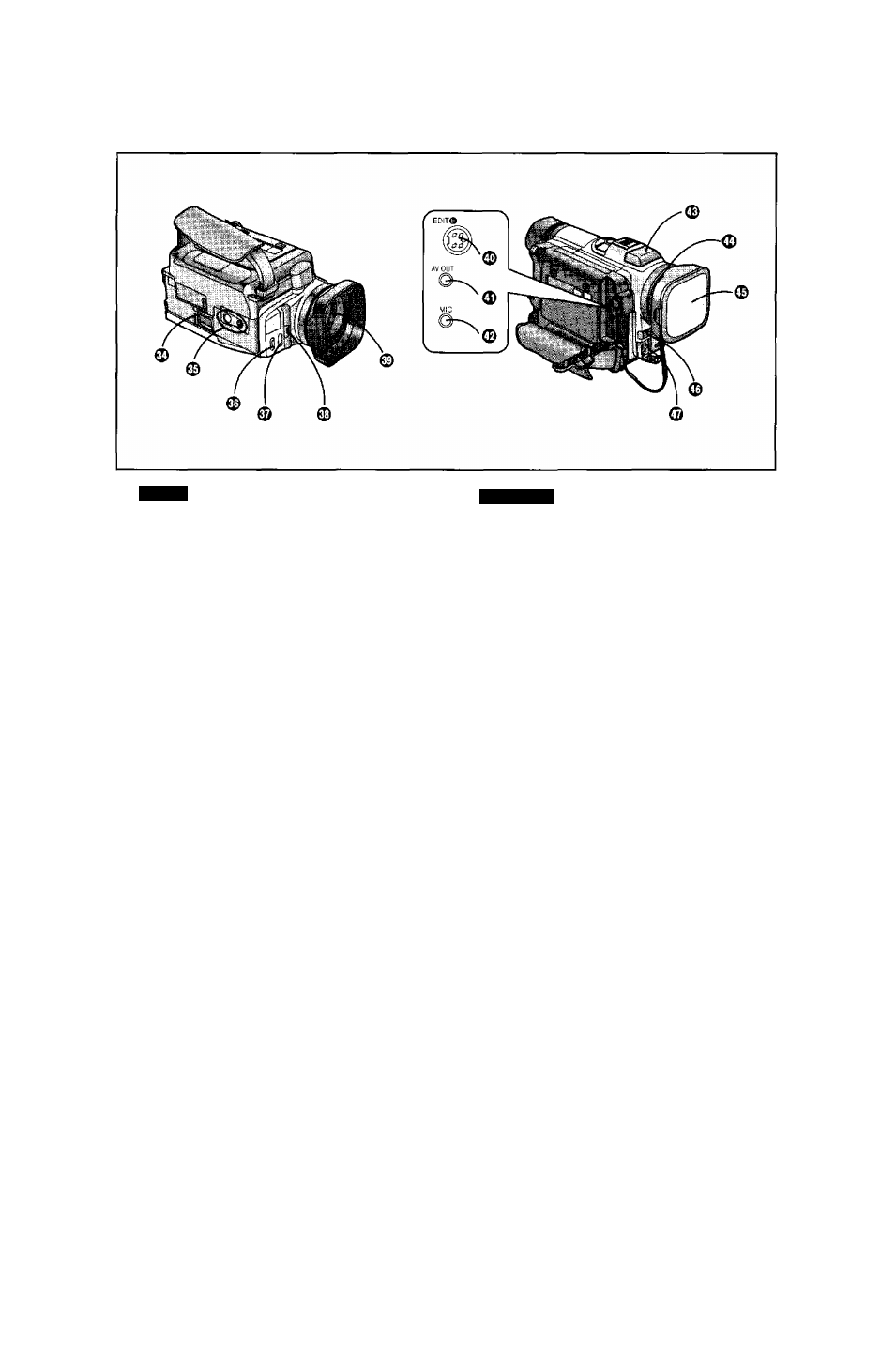

© Support Leg (-» 44)
©Tripod Receptacle
To mount the Movie Camera on an optional tripod.
© Focus Button [FOCUS] {~* 84)
© White Balance Button [W.B] {-¥ 80, 82)
© Recording Lamp (-► 30)
© Lens
© Edit Socket [EDIT©] (-M14,118)
© Audio-Video Output Socket [AV OUT]
(-► 52,110, 114,152)
When a cable is connected to this socket, the Movie
Camera’s built-in speaker is turned off.
© Microphone Socket [MIC]
To connect an external microphone or audio
equipment. (Connecting to this socket deactivates the
built-in microphone.)
© Microphone (built-in, stereo)
© Focus Ring {-► 84)
© Lens Cap (-» 28, 54, 82)
© White Balance Sensor (-* 160)
Remote Control Sensor (-► 108)
© DV input/output Terminal (¡.LINK) [|^] (-f 112)
To input/output digital signals.
“i.LINK” is the name of the connector in accordance
with the International Standard IEEE1394-1995.
"i” is the logo marked on products conforming with
the “i.LINK” specifications.
