English -

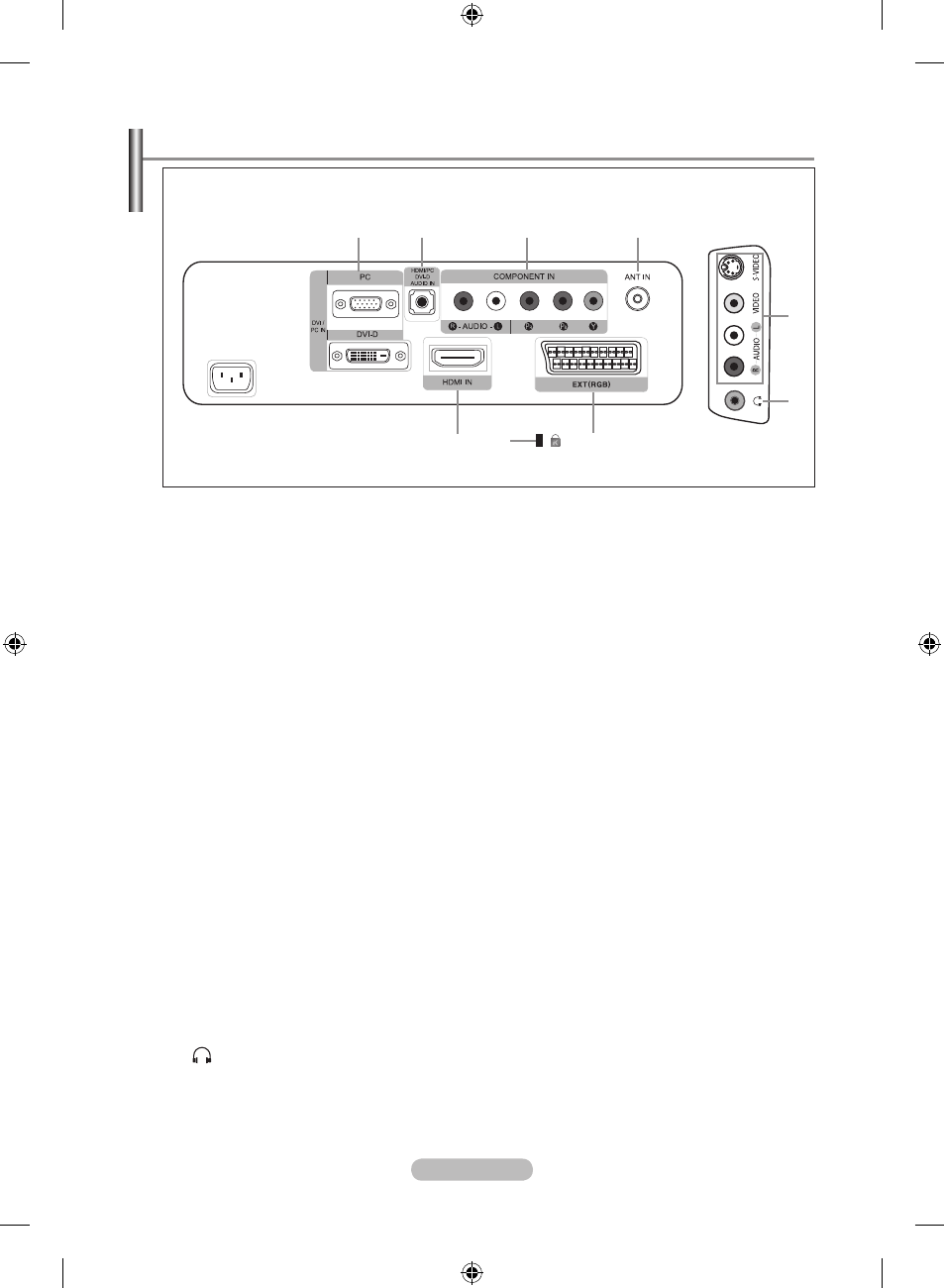

Viewing the Connection Panel
POWER
The product colour and shape may vary depending on the model. ➣
Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
When connecting an external device, match the colour of the connection terminal to the cable.
1 DVI/PC In
PC: Connect the signal cable to the PC port on the back of your monitor.
DVI-D: Connect the DVI cable(optional) to the DVI-D port on the back of your monitor.
2 hDmI/PC/DVI-D auDIo In
Connect the HDMI/PC/DVI-D AUDIO IN terminal at the back of your monitor to your computer’s
sound card.
3 ComPonEnt In
Connect component video cables (optional) to component connector ("P
R
", "P
B
", "Y") on the rear
of your set and the other ends to corresponding component video out connectors on the DTV or
DVD.
If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top
Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector ("P
R
", "P
B
", "Y")
on your set.
The P
R
, P
B
and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y,
B-Y and R-Y or Y, Cb and Cr.
Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends
to corresponding audio out connectors on the DTV or DVD.
4 ant In
To view television channels correctly, a signal must be received by the set from one of the following
sources:
- An outdoor aerial / A cable television network / A satellite network
5 S-VIDEo, VIDEo, r-auDIo-l
- Connect RCA (optional) or S-VIDEO cable (optional) to an appropriate external A/V device such
as VCR, DVD or Camcorder.
- Connect RCA audio cables (optional) to “R - AUDIO - L” on the rear of your set and the other
ends to corresponding audio out connectors on the A/V device.
6 (headphones)
- Headphone may be connected to the headphone output on your set. While the head phone is
connected, the sound from the built-in speakers will be disabled.
➣
➣
1 2 3 4
5
6
7 9 8
