English - 25
1. First, click on “Control Panel” on the Windows start menu.
2. When the control panel window appears, click on “Appearance
and Themes” and a display dialog-box will appear.
3. When the control panel window appears, click on “Display” and
a display dialog-box will appear.
4. Navigate to the “Settings” tab on the display dialog-box.
The correct size setting (resolution):
Optimum : 932MW , 932MG : 1440 X 900
2032MW , 2032MG : 1680 X 1050
If a vertical-frequency option exists on your display settings
dialog box, the correct value is “60” or “60 Hz”. Otherwise,
just click “OK” and exit the dialog box.
SEtting thE PC

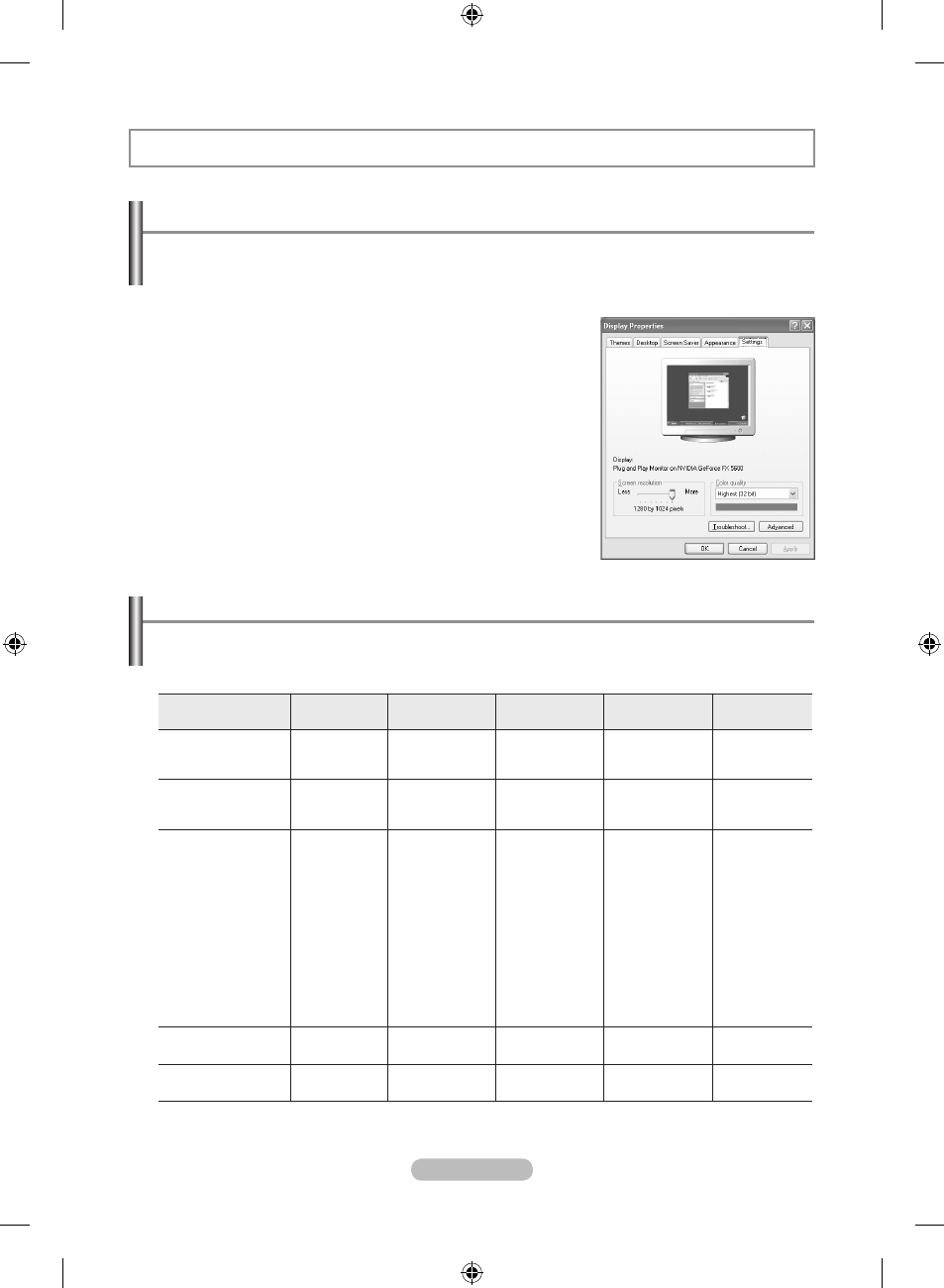

the Windows display-settings for a typical computer are shown below. the actual screens on your
PC may be different depending upon your particular version of Windows and your particular video
card. Even if your actual screens look different, the same, basic set-up information will apply in
almost all cases. (if not, contact your computer manufacturer or Samsung Dealer.)
Setting up Your PC Software (Based on Windows XP)
Display Modes
Both screen position and size will vary depending on the type of PC monitor and its resolution.
the resolutions in the table are recommended. (All resolutions between the supported limits are
supported)
Mode
Resolution
horizontal
Frequency (khz)
Vertical
Frequency (hz)
Pixel Clock
Frequency (Mhz)
Sync Polarity
(h/V)
iBM
640 x 350
640 x 480
720 x 400
31.469
31.469
31.469
70.086
59.940
70.087
25.175
25.175
28.322
+/-
-/-
-/+
MAC
640 x 480
832 x 624
1152 x 870
35.000
49.726
68.681
66.667
74.551
75.062
30.240
57.284
100.000
-/-
-/-
-/-
VESA
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 960
1280 x 1024
1280 x 1024
37.861
37.500
35.156
37.879
48.077
46.875
48.363
56.476
60.023
67.500
60.000
63.981
79.976
72.809
75.000
56.250
60.317
72.188
75.000
60.004
70.069
75.029
75.000
60.000
60.020
75.025
31.500
31.500
36.000
40.000
50.000
49.500
65.000
75.000
78.750
108.000
108.000
108.000
135.000
-/-
-/-
+/+
+/+
+/+
+/+
-/-
-/-
+/+
+/+
+/+
+/+
+/+
VESA
(only 932MW, 932Mg)
1440 x 900
1440 x 900
55.935
70.635
59.887
74.984
106.500
136.750
-/+
-/+
VESA
(only 2032MW, 2032Mg)
1680 x 1050
64.674
59.883
119.000
+/-
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
➣
➣
