14
ENGLISH
ASSEMBLING AND PREPARING
y
y
The items supplied with your product may vary depending on the model.
y
y
Product specifications or contents of this manual may be changed without prior notice due to upgrade of
product functions.

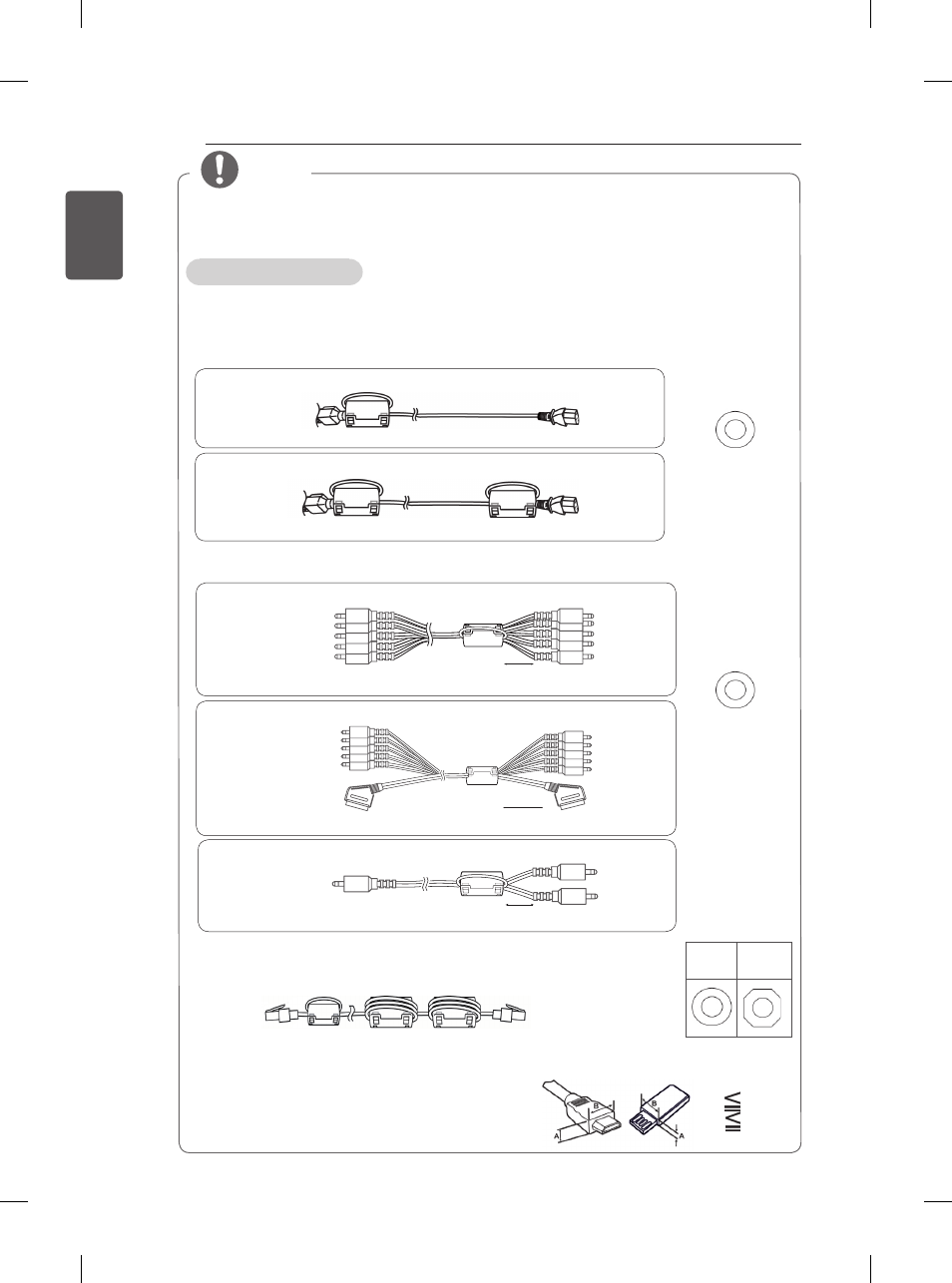

How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once.
2 Use the ferrite core to reduce the electromagnetic interference in the cable.
Place the ferrite core close to the TV.
y
y
For an optimal connection, HDMI cables and USB devices
should have bezels less than 10 mm thick and 18 mm width.
Use an extension cable that supports USB 2.0 if the USB cable
or USB memory stick does not fit into your TV’s USB port.
*A
10 mm
*B
18 mm
[Cross Section of
Ferrite Core]
(Black)
[Cross Section of
Ferrite Core]
(Black)
[to an External device]
[to an External device]
[Figure 2-2]
[to the TV]
10 mm(+ / - 5 mm)
[to an External device]
[to the TV]
10 mm(+ / - 5 mm)
Wind the component Y, Pb, Pr, L, R cable on the ferrite core once.
[Figure 2-1]
Gather and bind the component Y, Pb, Pr, L, R and scart cable with the ferrite core.
[Figure 2-3]
[to the TV]
10 mm(+ / - 5 mm)
Wind the PC audio cable on the ferrite core once.
3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable.
Wind the LAN cable once on the ferrite core B and thrice on the ferrite core A.
Place the ferrite core close to the TV and an External device.
A
(Gray)
B
(Gray)
[Cross Section of
Ferrite Core]
[to an External device]
B
A
[Figure 3]
A
- If there are five ferrite cores, follow as shown in Figures 1-1, 2, and 3.
- If there are six ferrite cores, follow as shown in Figures 1-2, 2, and 3.
[to a wall plug]
[to the TV]
[Figure 1-1]
Place the ferrite core close to a wall plug.
[to a wall plug]
[to the TV]
[Figure 1-2]
Place the ferrite core close to the TV and a wall plug.
NOTE
[to the TV]
