EXTERNAL CONTROL DEVICE SETUP

EXTERNAL CONTROL DEVICE SETUP

Image shown may differ from your TV.

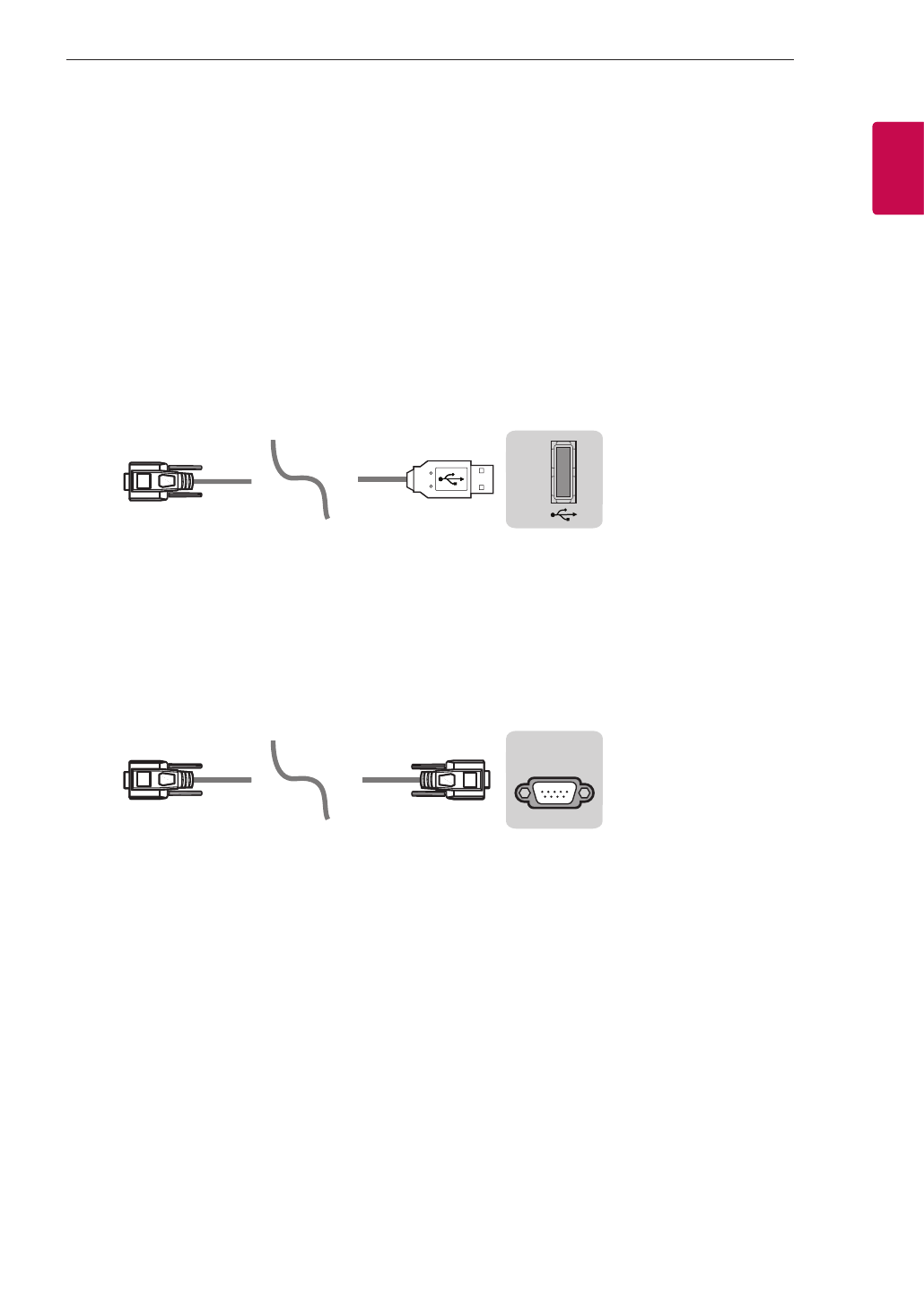

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer

or an A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

* Please be advised that not all models support this type of connectivity.
* Cable is not provided.

USB to Serial converter with USB Cable

USB Type

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter

which is not made nor provided by LG.

It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C With RS232C Cable

DE9 (D-Sub 9pin) Type

You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required

for the connection between the PC and the TV, which is specified in the manual.

USB IN

(TV)

(PC)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

1

3

2

1

3

2

The connection interface may differ from your TV.
