Air adjustment
This adjustment is only related to
the air adjustment of the oven
burner, and it should be done
befoore the by-pass adjustment.
If there is excessive air, the flame
is short and likely to
exf/ncfiy/s/i
easily. However if there is a little
amount of air; the ñames are long
and the end points yellow.
To adjust the air, loosen the air
adjustment handcuff which is
located near to the gas inlet of
the burner. By this way you can
adjust the aperture of the air
adjustment hole for the butane
gas you have to leave 4 mm
clearance and for the natural gas
you have to close completely.
For the natural gas, do the
necessary adjustment only when
the oven is not operated and cool.
Special attention should be given
that the ñames are 9-12mm and
blue-green coloured.
P.S.
There is no adjustment
device at the gas outlet of the
oven or at the top burners.
By-pass adjustment of Thermostate
In models with Removal of the control
panel
Open the oven door.
7b
dismount the fornt panel
unscrew the 'B'
screw.
■i:»:,'
. "i .
1 1 1 1 1 I ■ i ■ ■ ■ ■ rx " '
■
B
B
19
In models with Removal of the knobs
St In models with Removal of the
control panel

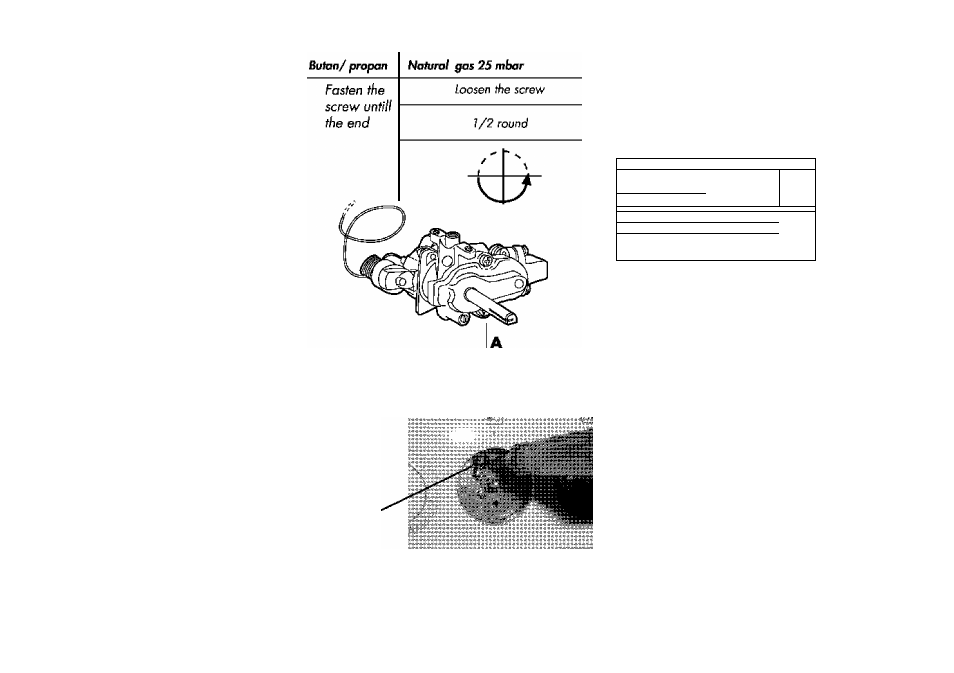

Using a screwdriver adjust the 'A' screw as
shown below.
For the appropriate functioning of the oven re-
checking the by-pass adjustment is extremely
important. In order to prowide maximum security
to the user these operations have to be done
with care.
Adjust the oven thermostat setting to
position
Sfwith Tap models position 3).
You wilf have to
wait
15 minutes
until to the oven that is stabilized.
When the thermostat setting is at position I;
- If the flame extinguishes loosen the A screw a
small amount.
- If the flames are longer than 2-3mm, fasten the
A screw.
If the temperature of the oven increases extrem^,
refer
to your service for
fhe
repairation of the
thermosfate.
