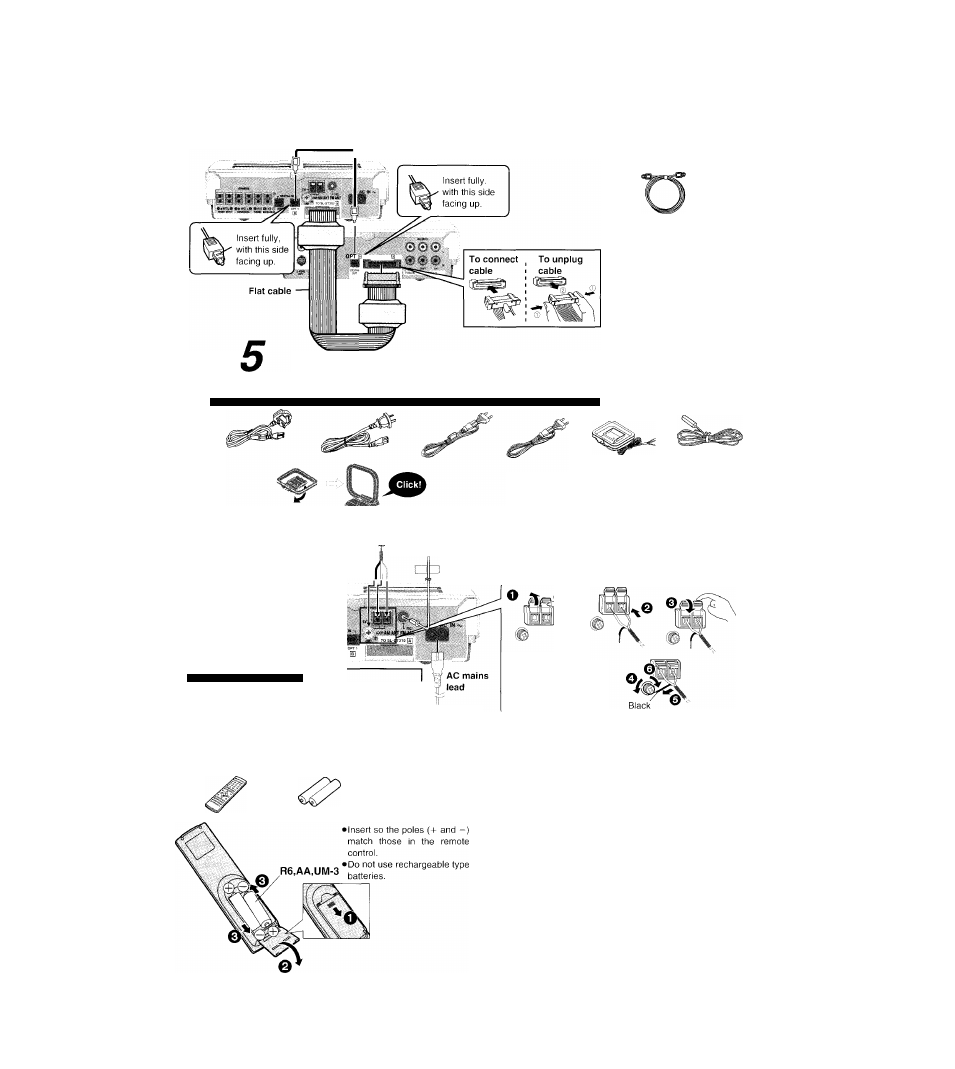

STEP4 Flat cable and optical cable
— Optical cable
Optical cable
I
«
to
■ S
.1
«0
STEP Antennas and AC mains lead
AC mains lead
For the United Kingdom | For Australia and N.Z. | For Conlinental Europe and Russia I For Southeast Asia
AM loop
antenna FM indoor
antenna
AM loop antenna
Stand the antenna up on its
base.
Keep loose antenna cord
away from other wires and
cords.
FM indoor antenna
Fix thè other end of
thè antenna where
reception is best.
Adhesive tape
For the United Kingdom only
BE SURE TO READ THE CAUTION FOR THE AC
MAINS LEAD ON PAGE 4 BEFORE CONNECTION.
Conserving power
The unit consumes power (approx. 0.7 W) even when it is
turned off with [cl)]. To save power when the unit is not to be
used for a long time, unplug it from the household mains
socket.
Remember to reset the radio stations and any other memory
items before using the unit again.
Information you enter into the unit’s memory remains intact
for up to two weeks after the AC mains lead is disconnected.
Unscrew the terminal
with a Phillips-head
screwdriver.
STEP
6
^To household
mains socket
The remote control
Remote control Batteries Do not;
• mix old and new batteries.
• use different types at the same time.
• heat or expose to flame.
•take apart or short circuit.
• attempt to recharge alkaline or manganese batteries.
• use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
Use
Aim at the sensor, avoiding obstacles, at a maximum range of 7 m
directly in front of the unit.
RQT6924
