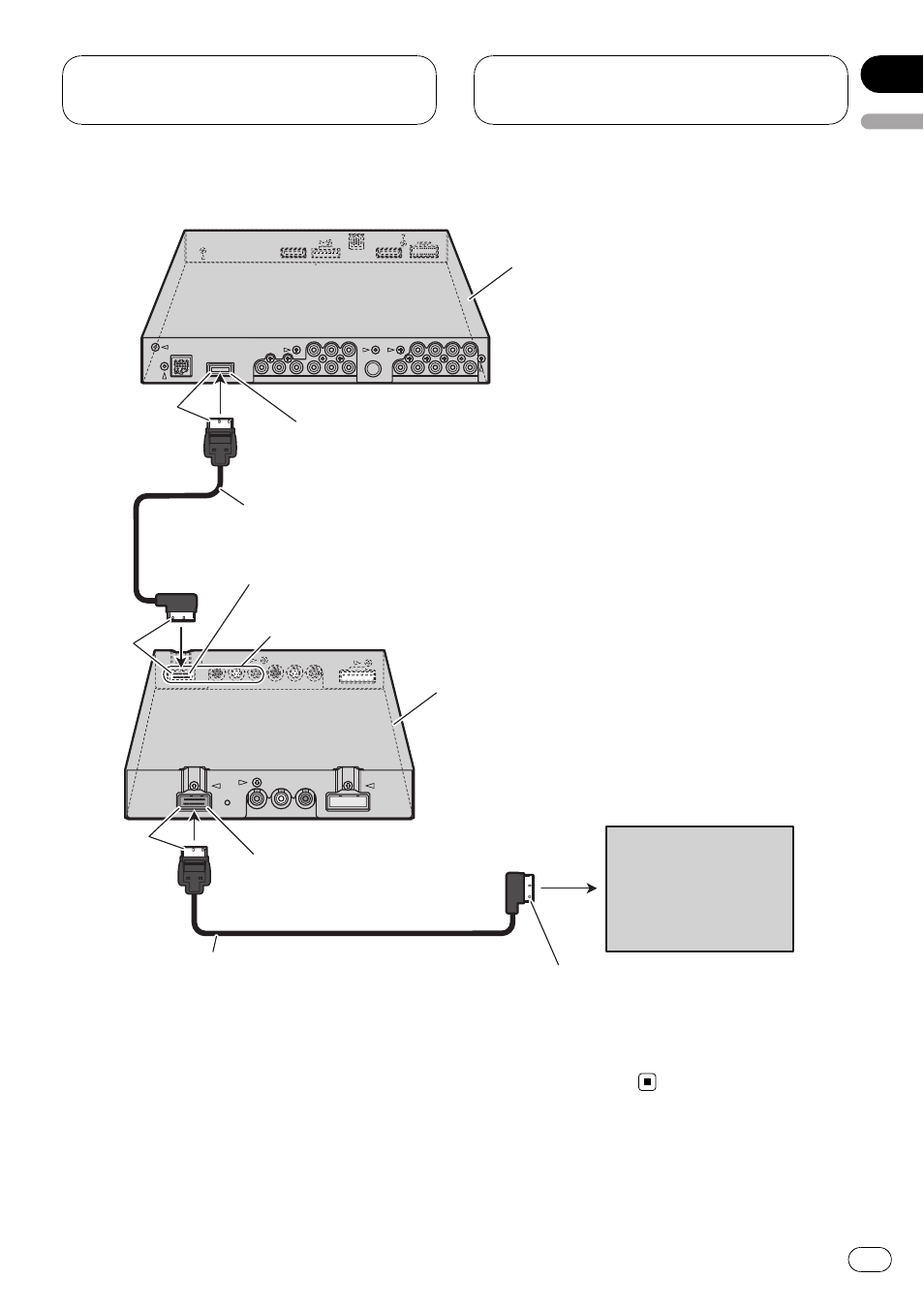

Connecting with component cables
Additional display
unit AVD-W9000
(sold separately)
Connect to
COMPONENT
(component input)
Hide-away unit
Hide-away unit (supplied
with AVH-P7900DVD)
26pin component cable
(e.g., CD-CP300)
(sold separately)
VCR1 IN (VCR1 input)
COMPONENT OUT
(component output)
COMPONENT OUT
(component output)
26pin component cable (e.g., CD-CP300)
(sold separately)
Blue
Blue
White
COMPONENT (component input)
! When you watch a DVD (built-in DVD
player of AVH-P7900DVD) on both AVH-
P7900DVD and this display unit, audio is
not output from the built-in speaker of this
display unit.
! The signal from COMPONENT OUT (com-
ponent output) and
VCR OUT (VCR output)
is not output when power to this display
unit is turned off.
Connection and
installation
En
17
English
Section
04
