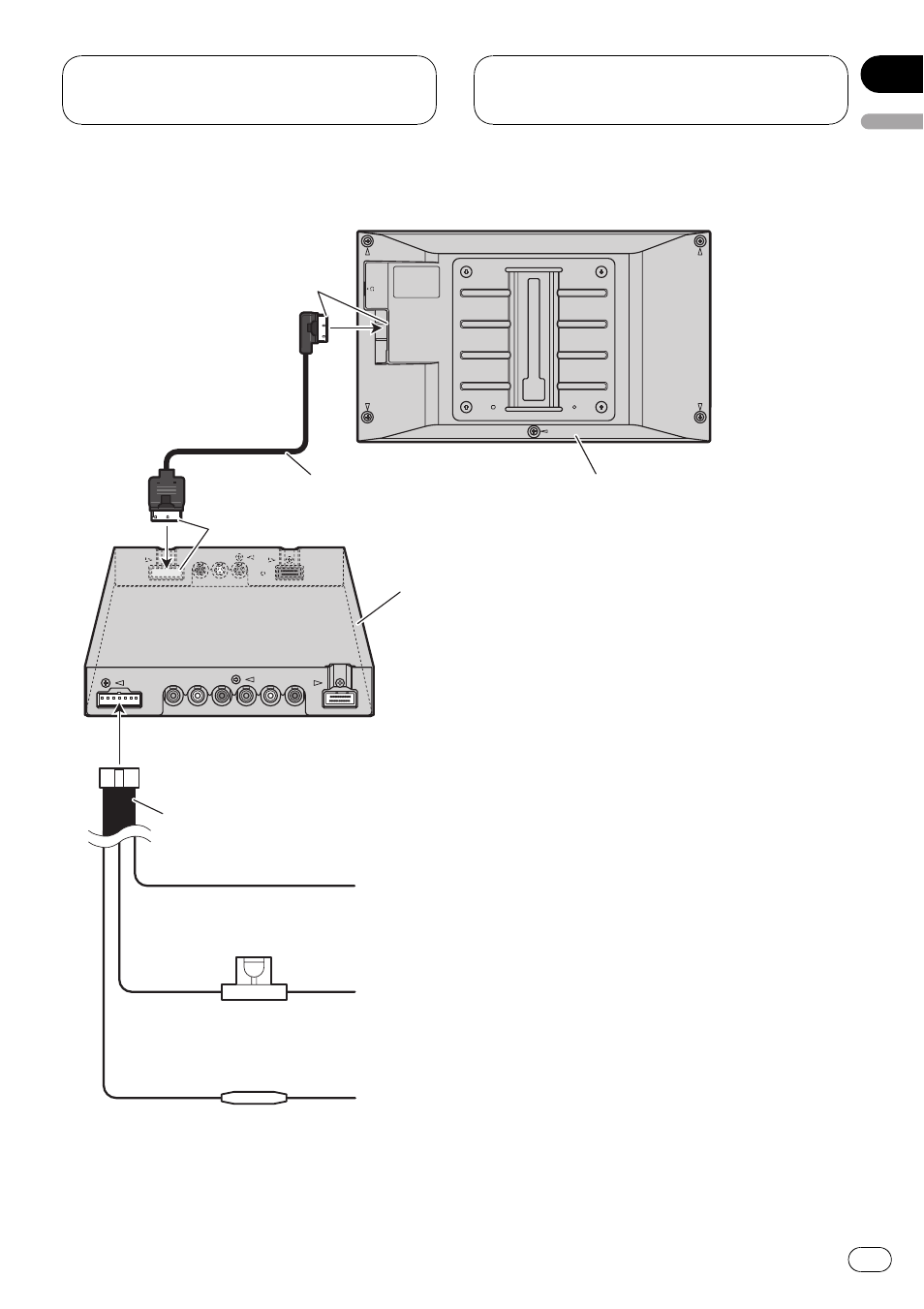

Connecting the power cable
Black (chassis ground)
Connect to a clean, paint-free metal location.
Fuse resistor
Red
Connect to terminal controlled by ignition switch (12 V DC).
Fuse (4 A)
Yellow
Connect to the constant 12 V supply terminal.
Power cable
Display unit
4 m
Pink
Pink
Display cable
Hide-away unit
Connection and
installation
En
15
English
Section
04
