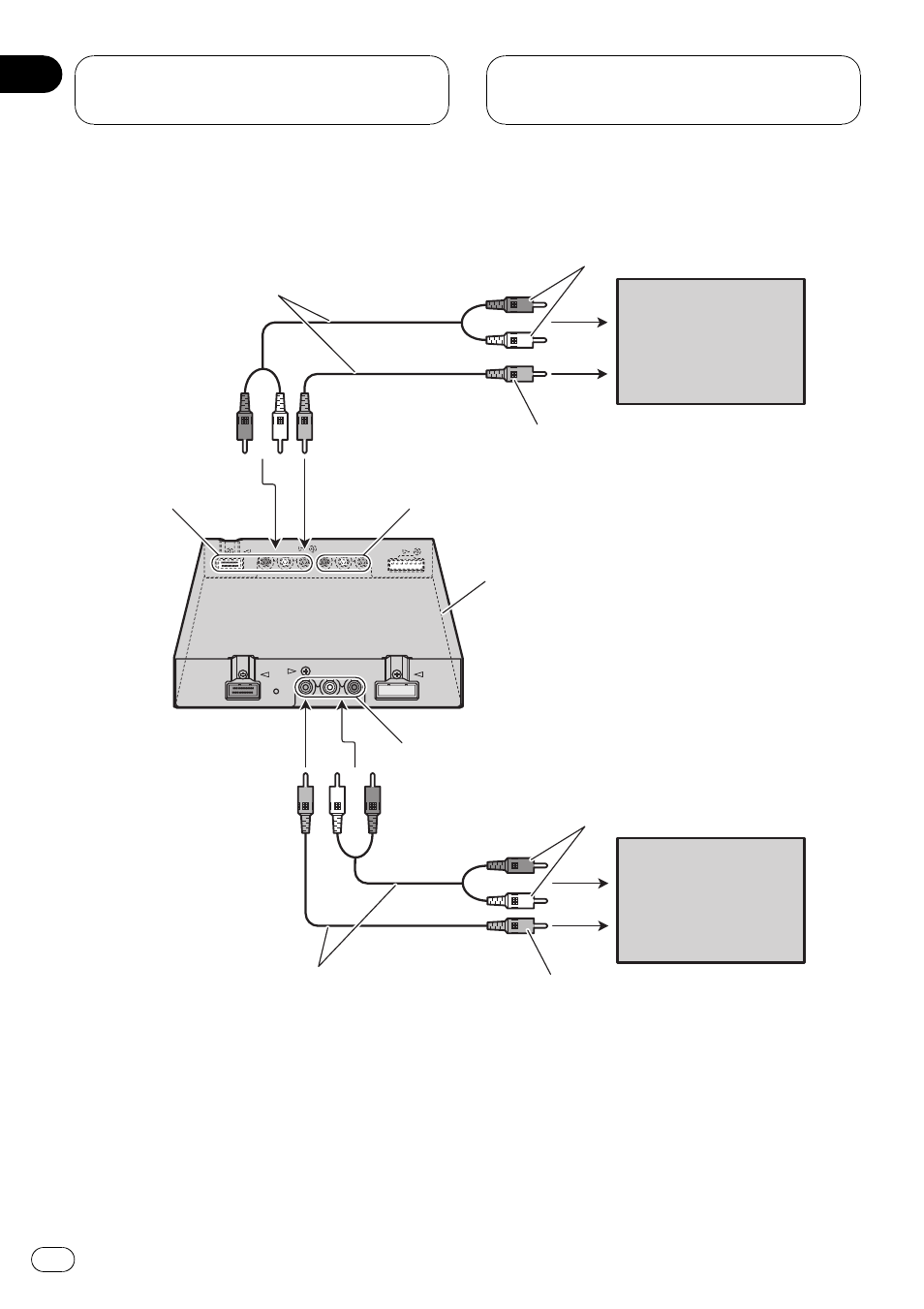

Connecting with RCA cables
External video
component
(sold separately)
Display unit with
RCA input jacks
(sold separately)
Connect to video output
Connect to audio outputs
Connect to video input
Connect to audio inputs
Hide-away unit
Connect with RCA cables
(sold separately)
Connect with RCA cables
(sold separately)
VCR2 IN
(VCR2 input)
VCR1 IN
(VCR1 input)
VCR OUT (VCR output)
! The signal from COMPONENT OUT (com-
ponent output) and
VCR OUT (VCR output)
is not output when power to this display
unit is turned off.
Connection and
installation
En
16
Section
04
