CAUTION
Be sure to use a CD-RM10 (sold separately) for
wiring. If you use other cables, there is a case
where wiring position differs, images and sounds
may be disturbed.
OK
G
V
R
L
G
R
V
L
L : Left audio (White)
R : Right audio (Red)
V : Video (Yellow)
G : Earth

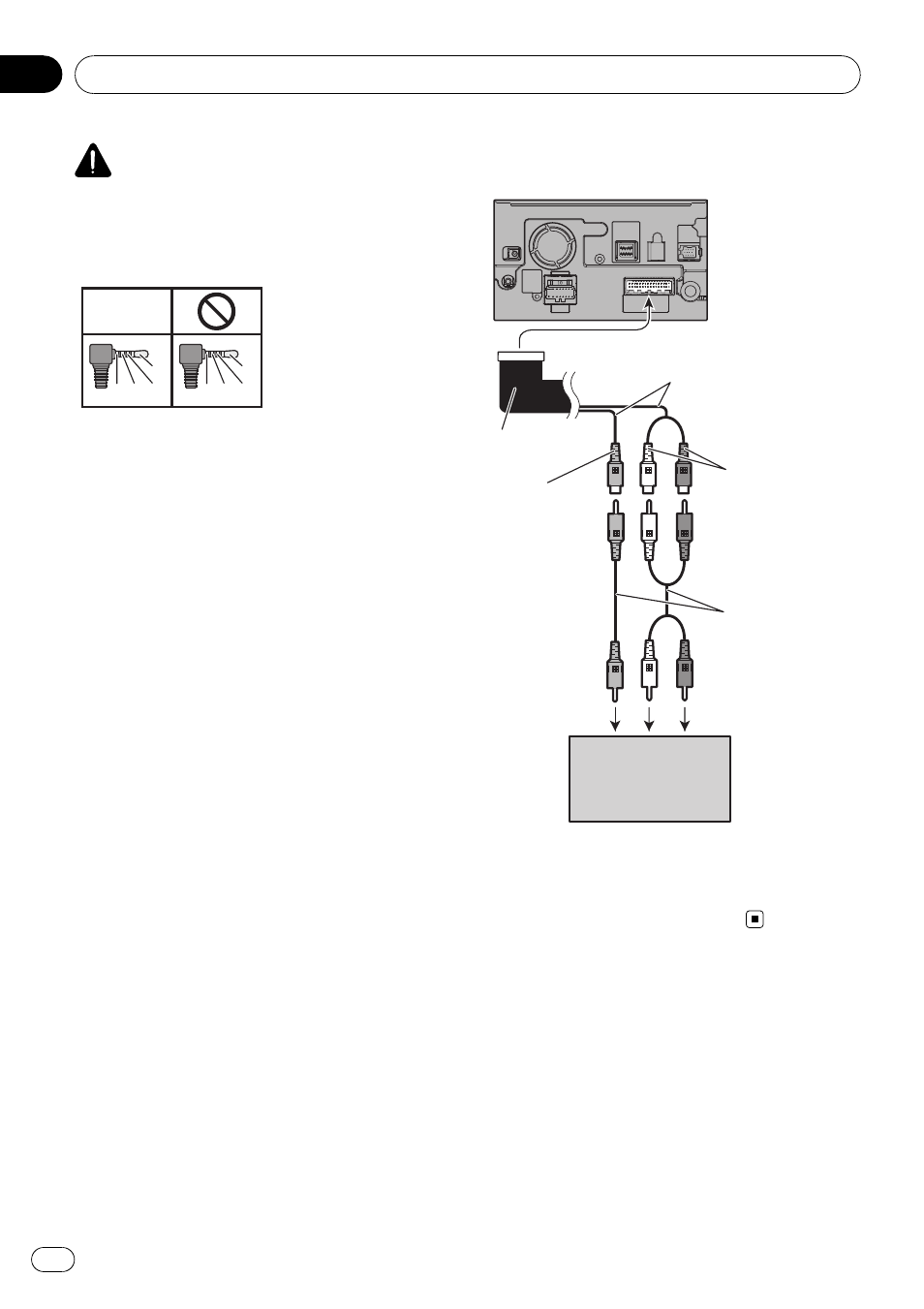

Using
“AV2 Input” (AV2)
To audio outputs
Yellow
(VIDEO INPUT)
20 cm
RCA connector
Red, white
(AUDIO INPUT)
RCA cables
(sold separately)
To video output
The navigation unit
External
component
(sold separately)
video
! It is necessary to set [AV2 Input] in [AV
Settings] to [Video] when connecting the
external video component. (For details,
refer to
“Operation Manual”.)
Connecting the System
Engb
18
Section
03
