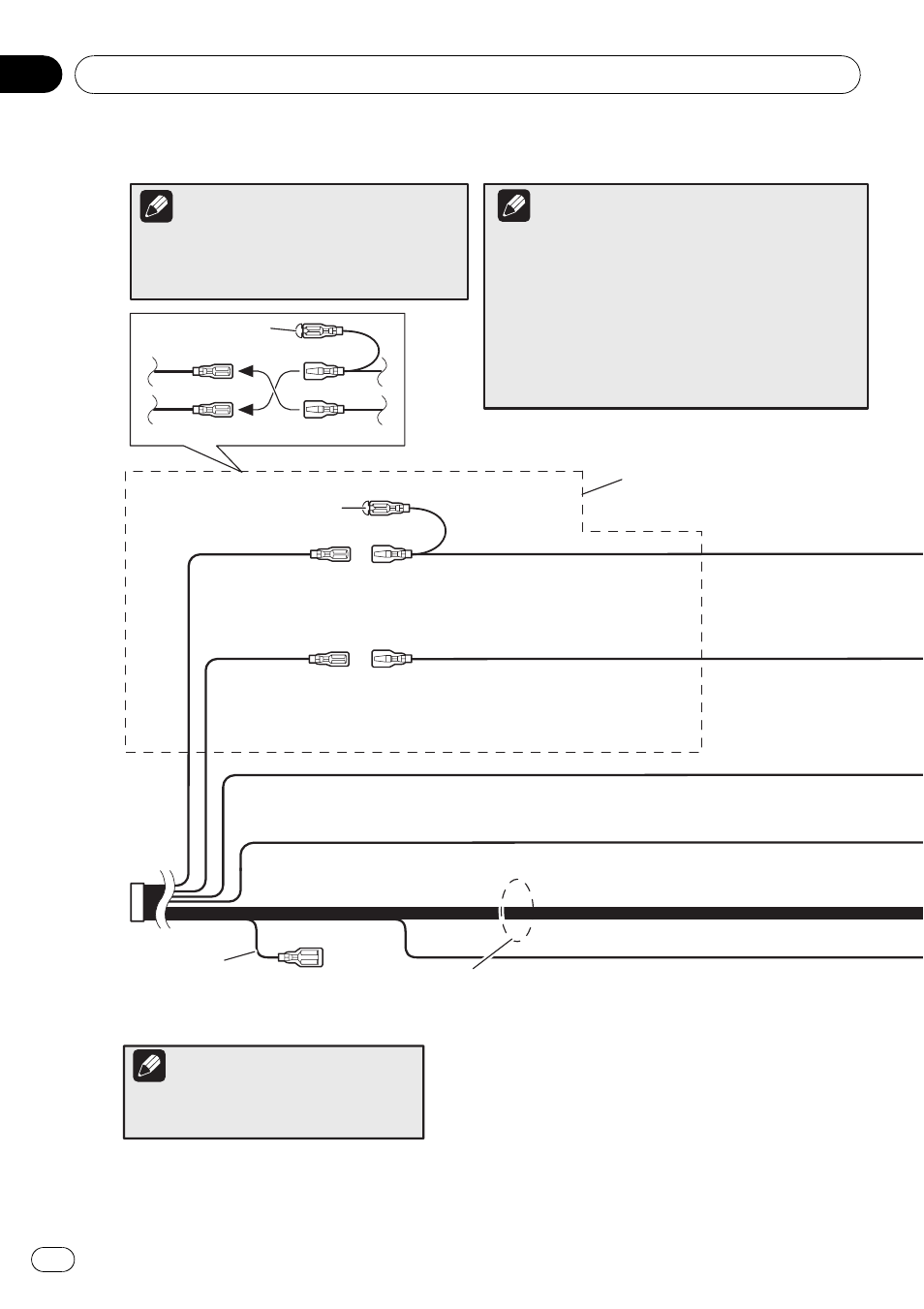

Connecting the power cord (1)
ISO connector
*1
*2
*4
*3
*5
Speaker leads
Clear: Front left

Black stripe on clear(2lines): Front left

Clear: Front right

Black stripe on clear(2lines): Front right

Clear: Rear left
 or Subwoofer  (*9)
Black stripe on clear(2lines): Rear left
 or Subwoofer  (*9)
Clear: Rear right
 or Subwoofer  (*9)
Black stripe on clear(2lines): Rear right
 or Subwoofer  (*9)
Depending on the kind of vehicle, the function
of *3 and *5 may be different. In this case, be
sure to connect *2 to *5 and *4 to *3.
Connect leads of the
same colour to each other.
Cap (*1)
When not using this terminal,
do not remove the cap.
Yellow stripe on clear
(2lines) (*3)
Back-up
(or accessory)
Red (*5)
Accessory
(or back-up)
Yellow stripe on clear
(2lines) (*2)
To terminal always supplied with power
regardless of ignition switch position.
Red (*4)
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
Orange/white
To lighting switch terminal.
Black (earth)
To vehicle (metal) body.
In some vehicles, the ISO connector may
be divided into two. In this case, be sure to
connect to both connectors.
Yellow/black
If the vehicle can send a mute signal to this
terminal, the mute function can be
activated on this navigation system when
the terminal is connected to *8.
Note
Note Notes
· When a subwoofer (*9) is connected to this
navigation system instead of a rear speaker, change
the rear output setting in the Initial Setting. (Refer to
“Operation Manual”.) The subwoofer output of this
navigation system is monaural.
· When using a subwoofer of 70 W (2
Ω), be sure to
connect with violet and violet/black leads of this
navigation system. Do not connect anything with
green and green/black leads.
Connecting the System
