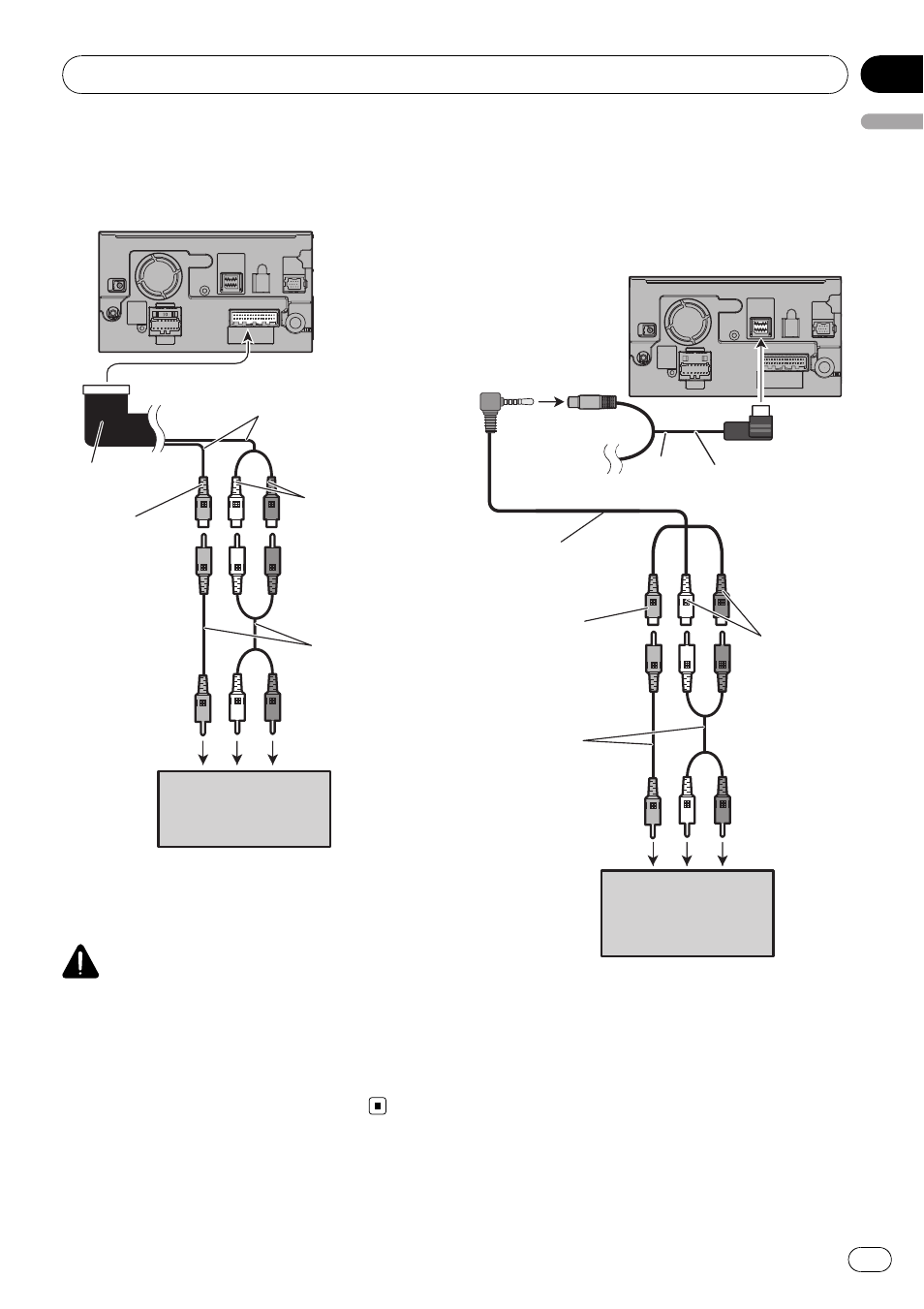

When connecting the rear
display
The navigation unit
To video input
Rear display with
RCA input jacks
To audio inputs
Yellow
(REAR MONITOR
OUTPUT)
15 cm
RCA connector
Red, white
(REAR MONITOR
OUTPUT)
RCA cables
(sold separately)
When using a rear display
connected to rear video output
WARNING
NEVER install the rear display in a location
that enables the driver to watch the video
source while driving.
This navigation system
’s rear video output is for
connection of a display to enable passengers in
the rear seats to watch the video source.
When connecting the
external video component
Using
“AV1 Input” (AV1)
The navigation unit
RCA cables
( sold separately)
Yellow
Red, white
External
component
(sold separately) video
To video output To audio outputs
CD-RM10
(sold separately)
USB connector
2 m
! It is necessary to set [AV1 Input] in [AV
Settings] to [Video] when connecting the
external video component. (For details,
refer to
“Operation Manual”.)
Connecting the System
Engb
17
English
Section
03
