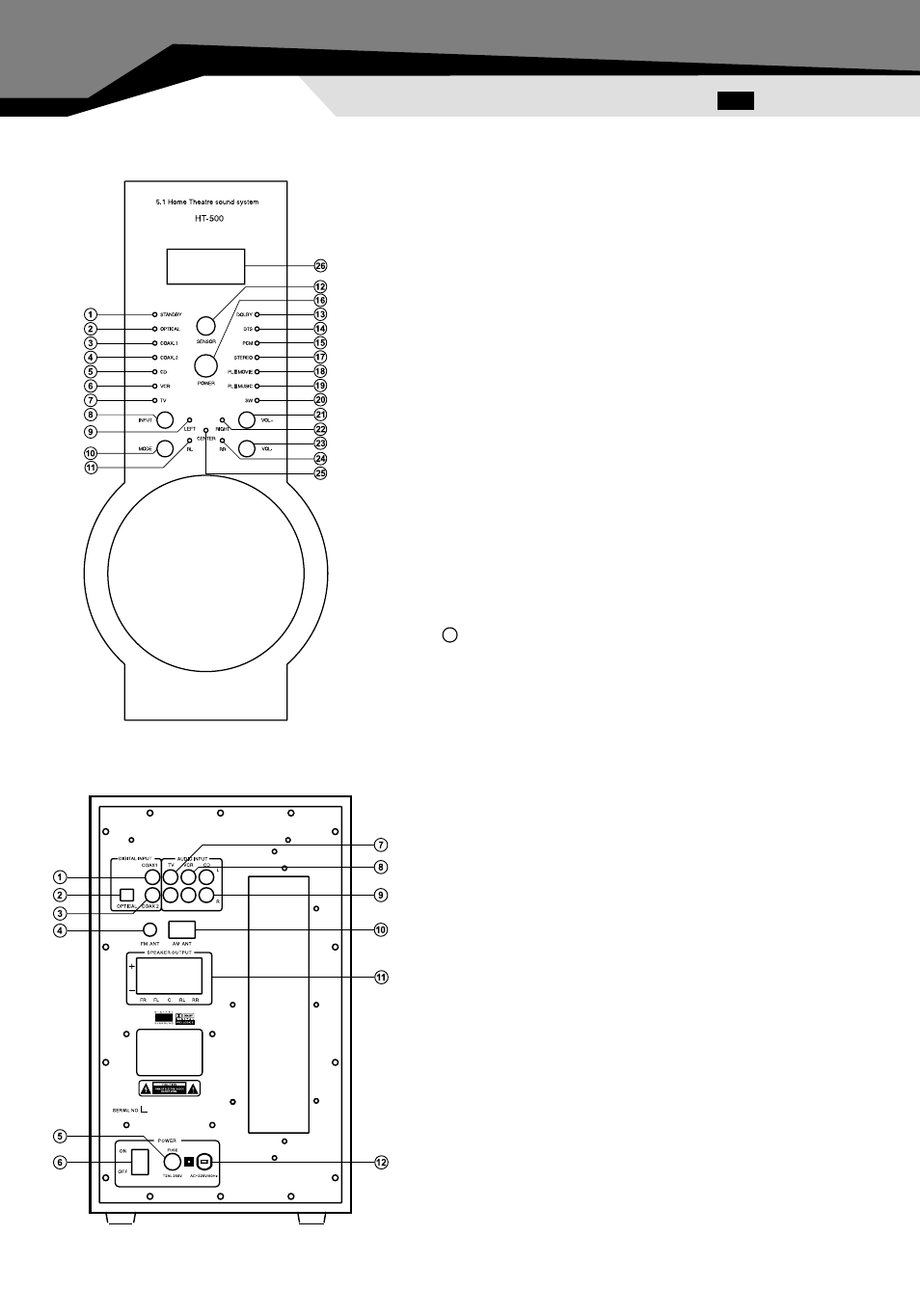

4. FRONT PANEL — CONTROLS AND FUNCTIONS
a
STANDBY Indicator
b
OPTICAL Indicator
c
COAXIAL1 Indicator
d
COAXIAL2 Indicator
e
CD Indicator
f
VCR Indicator
g
TV Indicator
h
INPUT Selection
i
LEFT Indicator
j
MODE Selection
k
RL Indicator
l
Remote Sensor
m
DOLBY DIGITAL Indicator
n
DTS Indicator
o
PCM Indicator
p
POWER Standby
q
STEREO Indicator
r
PL II MOVIE Indicator
s
PL II MUSIC Indicator
t
SUBW Indicator
u
Volume + Selection
v
RIGHT Indicator
w
Volume - Selection
x
RR Indicator
y
CENTER Indicator
26 LCD Display
5. REAR PANEL — CONTROLS AND FUNCTIONS
a
COAXIAL1 Input Jack
b
OPTICAL Input Jack
c
COAXIAL2 Input Jack
d
FM ANT: FM Antenna Input
e
Fuse Switch
f
POWER ON/OFF Switch
g
TV Input Jack
h
VCR Input jack
i
CD Input Jack
j
AM ANT:AM Antenna Input
k
Speaker Output
FR: Front Right Speaker Output
FL: Front Left Speaker Output
C: Center Speaker Output
RL: Rear Left Speaker Output
RR: Rear Right Speaker Output
l
AC Power Cord
