Operation manual
19
AV SYSTEM
6. REMOTE CONTROL AND THE SCREEN DISPLAY
1. Stand by key (STAND BY)
Press this key can stand by state the unit and the screen displays characters
« ». Press the key again or press input selection or operation mode selection

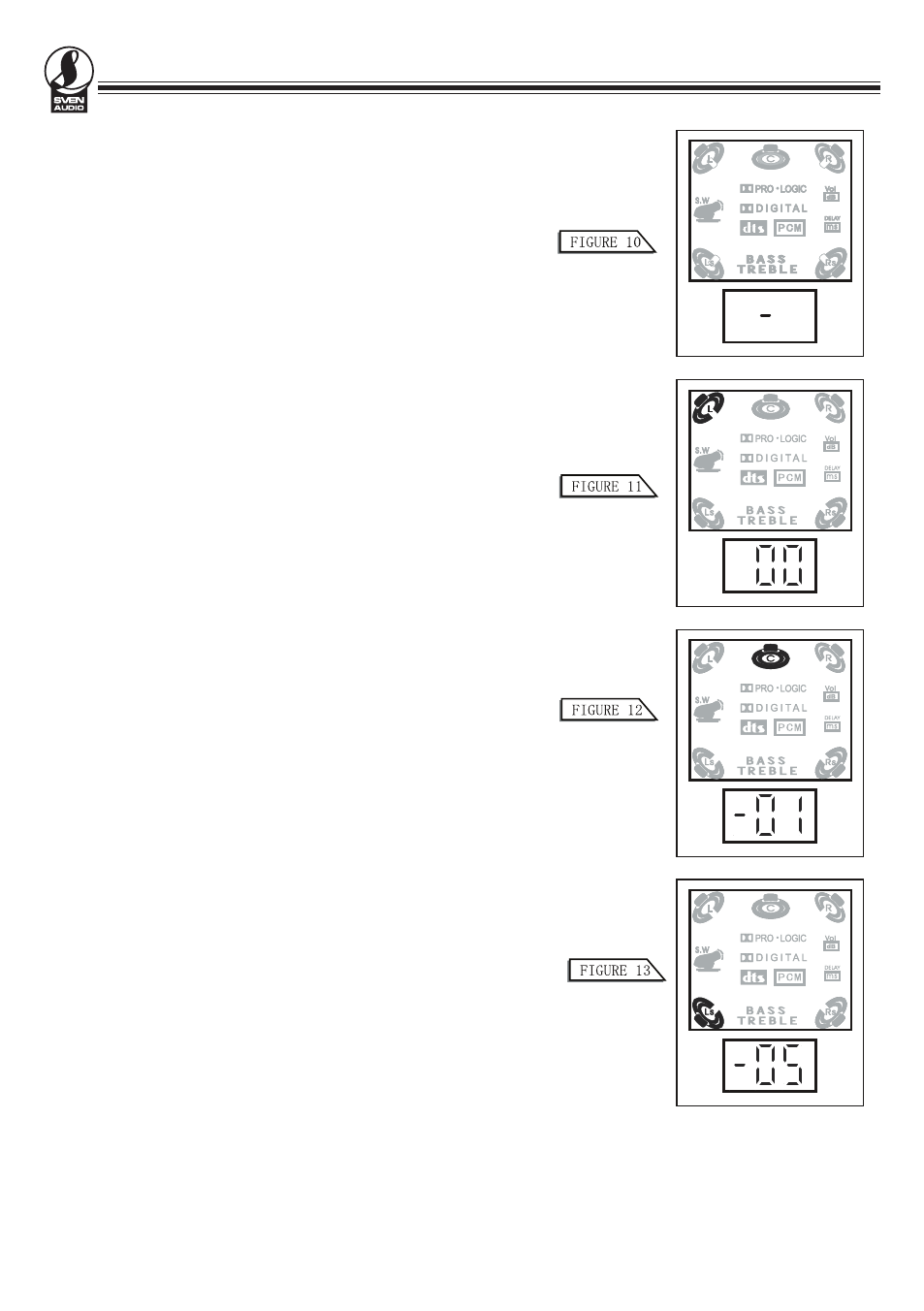

button the unit will be back out of stand by state. (Refer to Fig.10) (at front
pannel)
2. Input selection key (INPUT)
Function and usage of this key are the same as MENU button 3 on front panel.
3. Left front channel level key (L FRONT)
Press this key and turn the VOLUME/ADJ switch to adjust left front channel
level. (Refer to Fig. 11 )
Adjustment range:from 15dB to 0dB,step is 1dB
4. Center channel level key (CENTER)
Press this key and turn the VOLUME/ADJ switch to adjust center channel level.
(Refer to Fig.12 )
Adjustment range:from 15dB to 0dB,step is 1dB.
5. Left surround channel level key (L SUR)
Adjustment range:from 15dB to 0dB,step is 1dB
Press this key and turn the VOLUME/ADJ switch to adjust left surround chan
nel level. (Refer to Fig.13 )
3 Adjustment range:from 15dB to 0dB,step is 1dB.
6. 5.1 stereo selection key (5.1 STEREO)
Press this key ,the unit work in the station of 5 channels stereo output.
(Refer to Fig. 7)
