SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
LB63**-ZA, 32/39/42/47/50/55LB65**-ZA
B stand base
A stand base
1
2
1

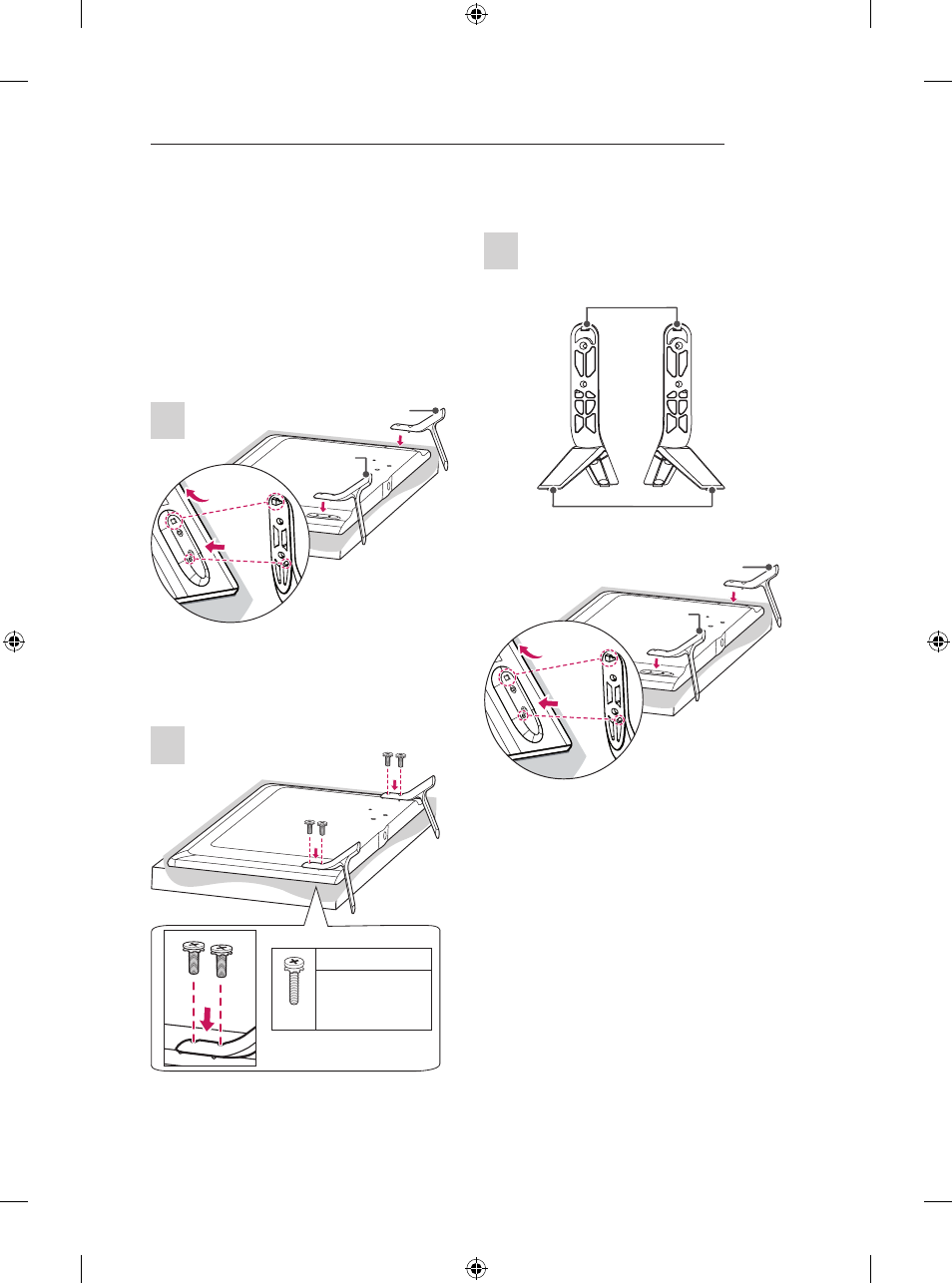

1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
4EA
M4 x L14
M4 x L20
(Only 32LB65**-
ZA)
70LB65**-ZA, LB67**-ZA/ZB/ZC/ZF, LB68**-ZD,
LB69**, LB73**-ZA
B stand Assy
A stand Assy
1
2
1
Stand Body
Stand Base
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
