MSM/MTM Series Installation Instructions
8
8. Mark the attachment points for the lower mounting slots.
(See Figure 4)
9. Drill one pilot hole at each marking for lower mounting
holes. (See Figure 4)
10. Install an anchor (QA) into each pilot hole using a hammer.
11. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat
washers (QB) to attach the mount to the wall through the
lower mounting holes. (See Figure 4)
12. Slide rails to approximate center of screen location.
Attaching Interface Brackets to TV
1. Align the center of the bracket with center of screen.
(See Figure 5)
NOTE: The diamond-shape hole in the bracket corresponds to
the center of the mount.

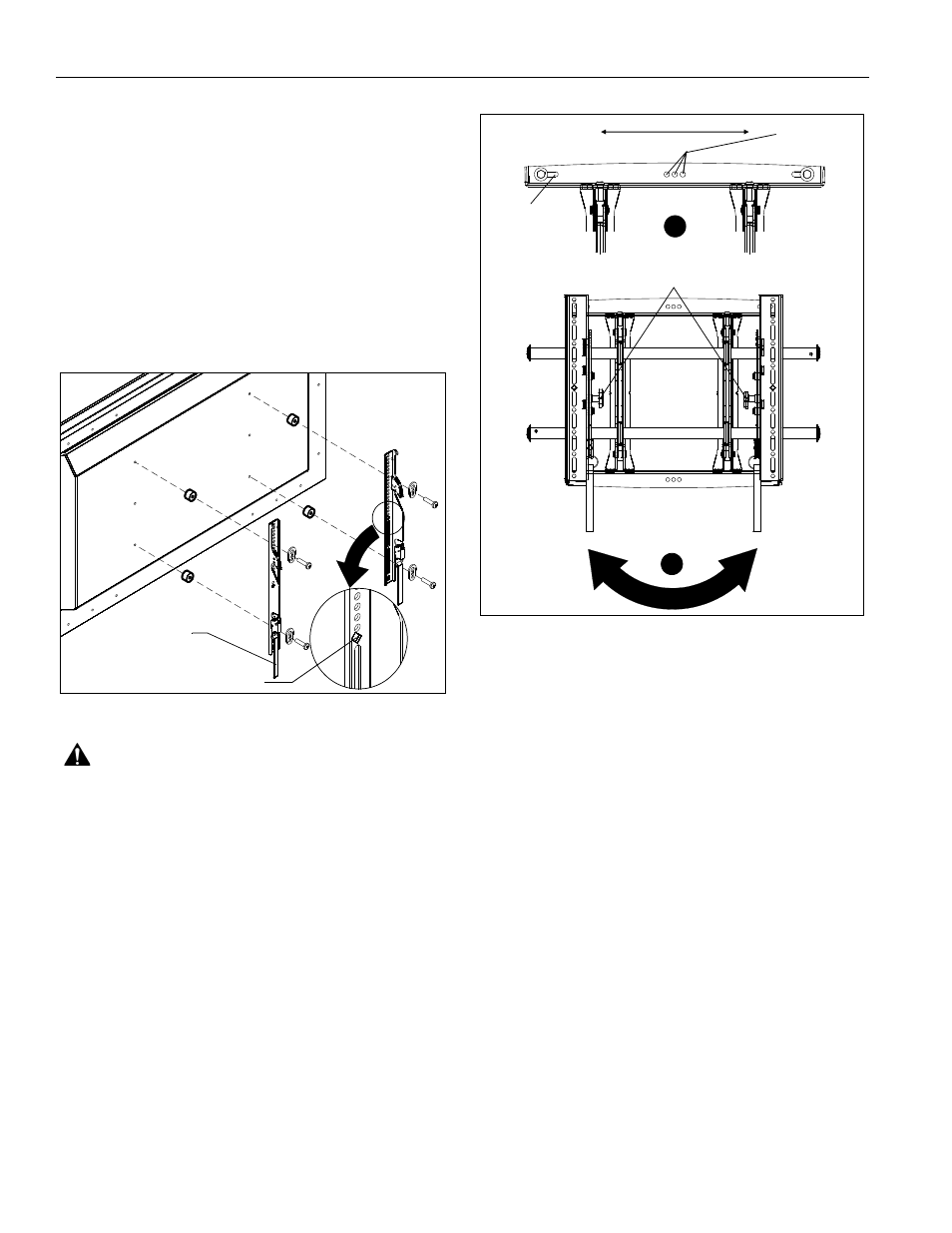

Figure 5
WARNING: IMPROPER INSTALLATION CAN LEAD TO
DISPLAY FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Using screws of
improper size may damage your display. Properly sized
screws will easily and completely thread into display
mounting holes. If spacers are required, be sure to use longer
screws of the same diameter.
2. Select correct screws, spacers (if necessary) and universal
washers from the hardware bag (A-N) for MSMU/MTMU
models; OR from the hardware bag included for MSM3XXX/
MTM3XXX models, and attach brackets to back of screen.
(See Figure 5)
Switching Interface Brackets (Optional)
If an installation situation makes adjusting the location of
interface brackets necessary, there are several options.
1.
The wall bracket may be adjusted side to side at the point of
attachment (mounting slots for dual stud installation,
mounting holes for single stud installation). (See Figure 6)
2. The location of the left and right interface brackets may be
switched, with the knobs on the MTM interface brackets
facing the inside of the mount. (See Figure 6)
Figure 6
Center of bracket
Pull strap
[Brackets V
and W shown]
1
2
Knobs
Mounting
Slot
Mounting
Holes
