MSM/MTM Series Installation Instructions
10

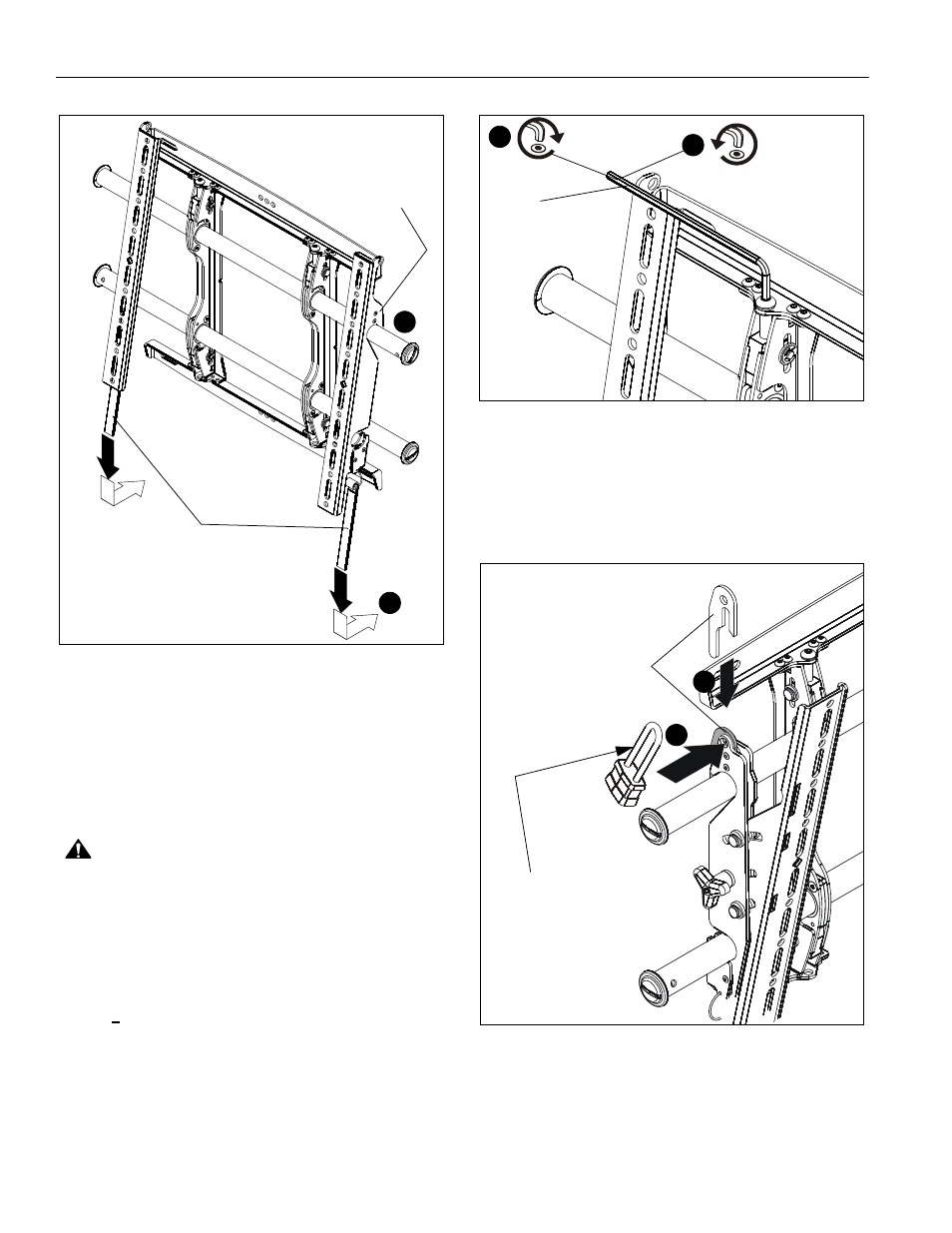

Figure 9
2. Hang top hook of interface brackets onto the top bar of the
mount. (See Figure 9)
NOTE: The screen initially installs into the "kickstand mode" to
allow easy cable access.
3. Slide screen and bars to desired viewing position.
4. Route cables between wall and bars.
CAUTION: PINCH POINTS! Keep fingers, hands and
cables out of pinch point areas.
5. Pull downward on the pullstraps and swing inward toward
wall, latching interface brackets to lower bar and locking
bottom of screen to the mount. (See Figure 9)
Adjusting Roll/Height of Wall Brackets
NOTE: The height adjust wall bracket allows adjustment of
+ 1/2".
1. Turn to right (tighten) to raise side of screen.
(See Figure 10)
2. Turn to left (loosen) to lower side of the screen.
Figure 10
Locking Mount (Optional)
1. Add optional security bracket (S or T) to the mount. (See
Figure 11)
2. Add padlock (not included) to complete security.
Figure 11
2
5
Top
Hook
(Screen not shown for clarity)
Pullstraps
Raises screen
Lowers screen
1
2
(U)
(Screen not
shown for
clarity)
(S)
1
2
(MTM Shown)
Padlock shackle diameter:
- Min: 1/4" (6.3mm)
- Max: 5/16" (7.9mm)
