Stereo mode

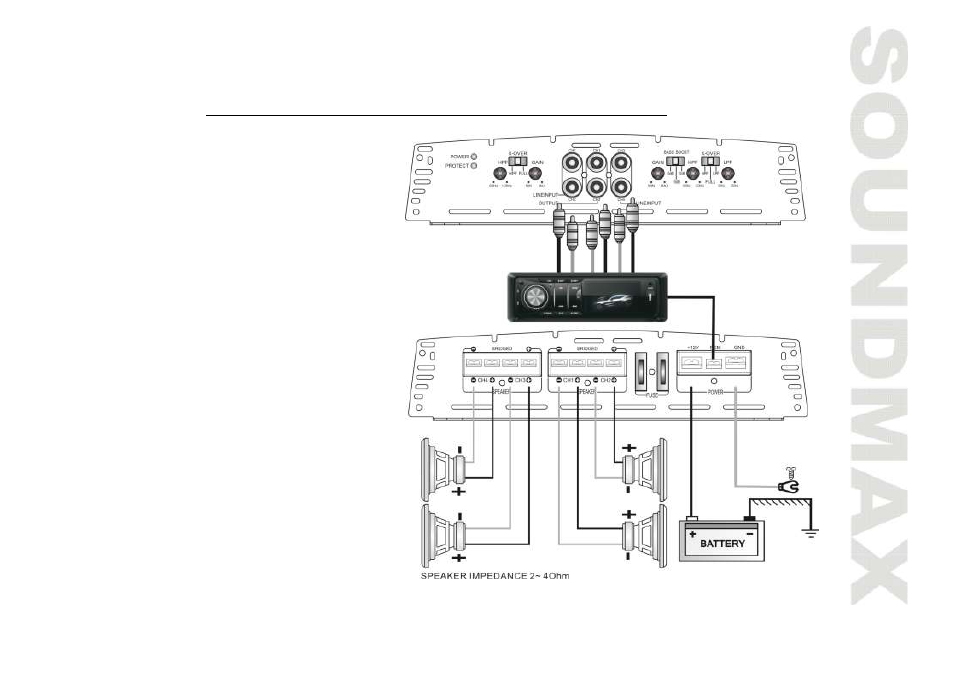

Connect and set the amplifier as shown in Fig. 3, when the stereo has four outputs and the unit is used to
drive four loudspeakers. The high-pass filter must be activated if the amplifier drives satellite
loudspeakers.
See section HIGH-PASS FILTER WITH ADJUSTABLE CROSS-OVER FREQUENCY to catch how to regulate
the high pass filter.
Fig. 3
