11

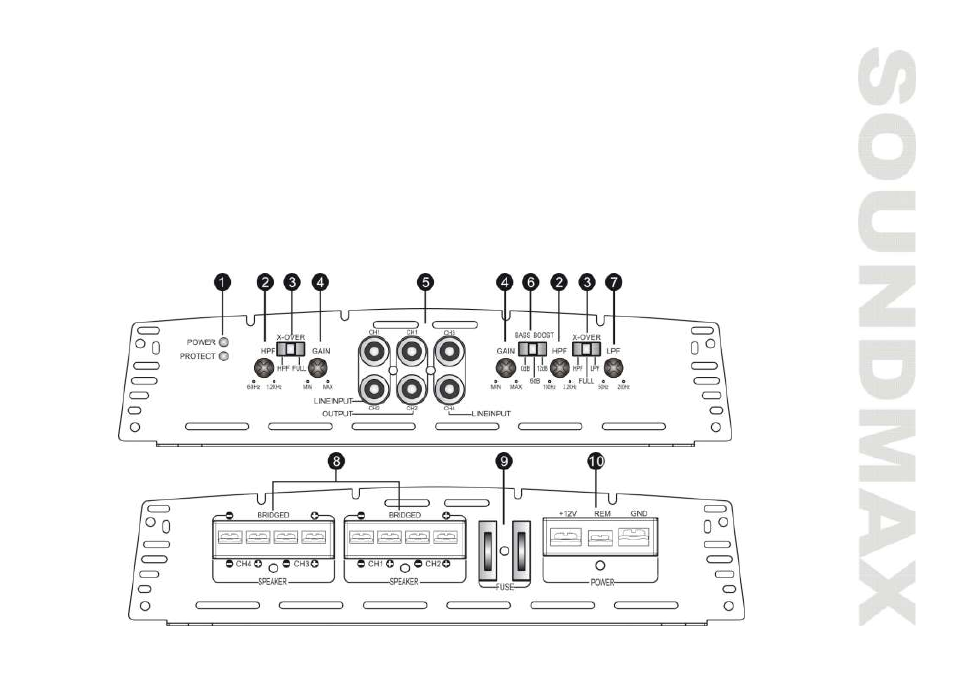

Operating elements and in/outputs
(1) Indicator light (Green light means amplifier is working. Red light means self-protection mode of the
amplifier).
(2) High-pass filter (HPF) adjusting knob, the frequency ranges from 60Hz to 1.2kHz for CH1/2 and
from 100Hz to 2.2kHz for CH3/4
(3) X-over switch (HPF/FLAT/LPF)
(4) GAIN control
(5) CH1/CH2/CH3/CH4 inputs
(6) Bass-boost control
(7) Low-pass filter (LPF) adjusting knob, the frequency ranges from 50Hz to 250Hz
(8) Speaker connecting terminals
(9) Fuse x2
(10) +12 Power terminal, REM Remote turn-on terminal, GND Ground terminal.
