Seated Row Assembly Guide : Assembling the Equipment 14
Attaching the Seat Pad
The seat mechanism is preassembled, except for the seat pad and the gas
spring.
To attach the seat pad:
1. Position the pad over the seat bracket so that the screw holes in the seat
and the bracket line up.

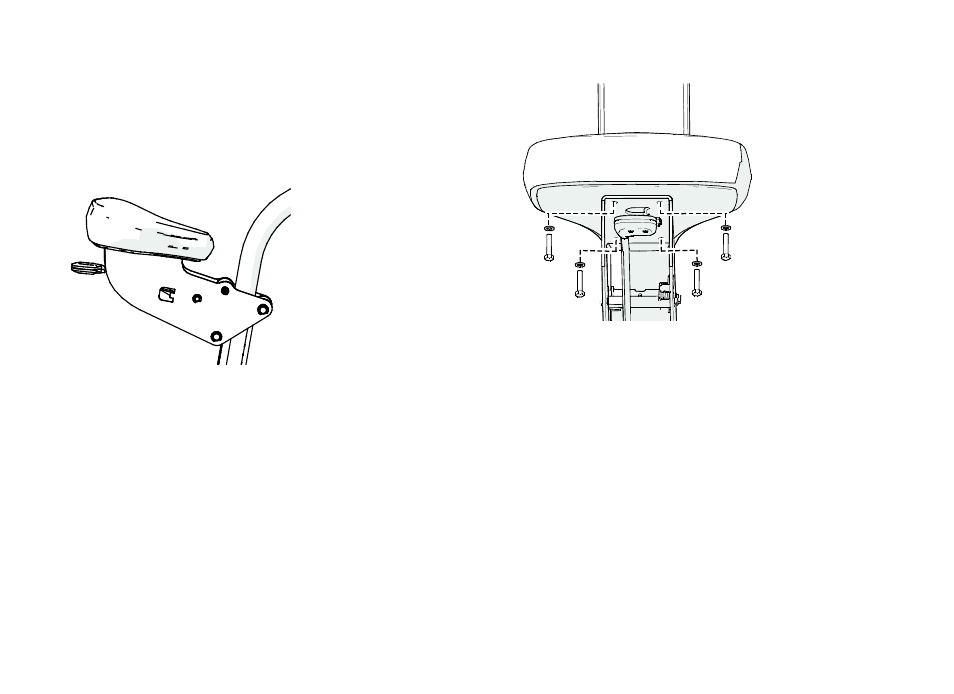

Figure 9: Seat position
2. Insert four ⁵₁₆-inch x 1¹₂-inch hex head screws with 9mm flat washers into
the screw holes in the pad, as shown in the following figure.
Figure 10: Seat attachment
3. Position the pad if necessary, then tighten the fasteners completely.
