Seated Row Assembly Guide : Assembling the Equipment
9
Attaching the Uprights to the Base Frame
Perform the following procedure to attach both side uprights to the base
frame.
To attach the side uprights to the base frame:
1. Position the left side upright on the base frame so that the screw holes on
the base frame and the upright line up.
Note: Ask that your assistant hold the side uprights while you secure them
into position.
2. Add one M12 x 35mm socket head cap screw and one 13mm flat washer to
each of the screw holes. Finger tighten the fasteners.

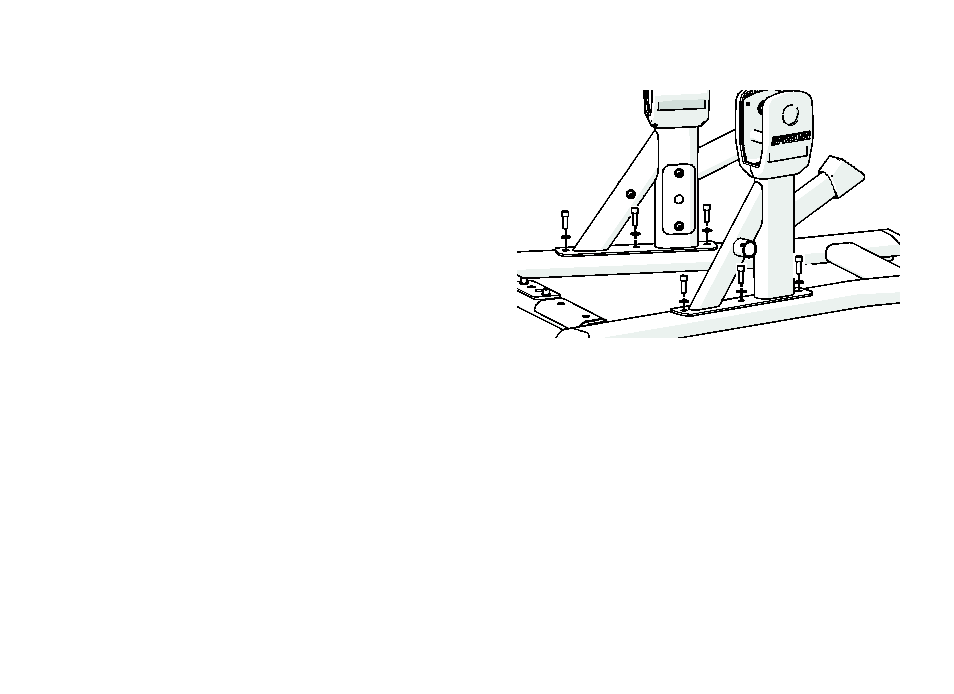

Figure 4: Side upright attachment
3. Repeat steps 1 and 2 to attach the right side upright.
