Installing the Crossbar
Note: Have your assistant hold the crossbar in place while you perform this
procedure.
To attach the crossbar to the side uprights:
1. Position the crossbar between the side uprights as shown in the following
figure.

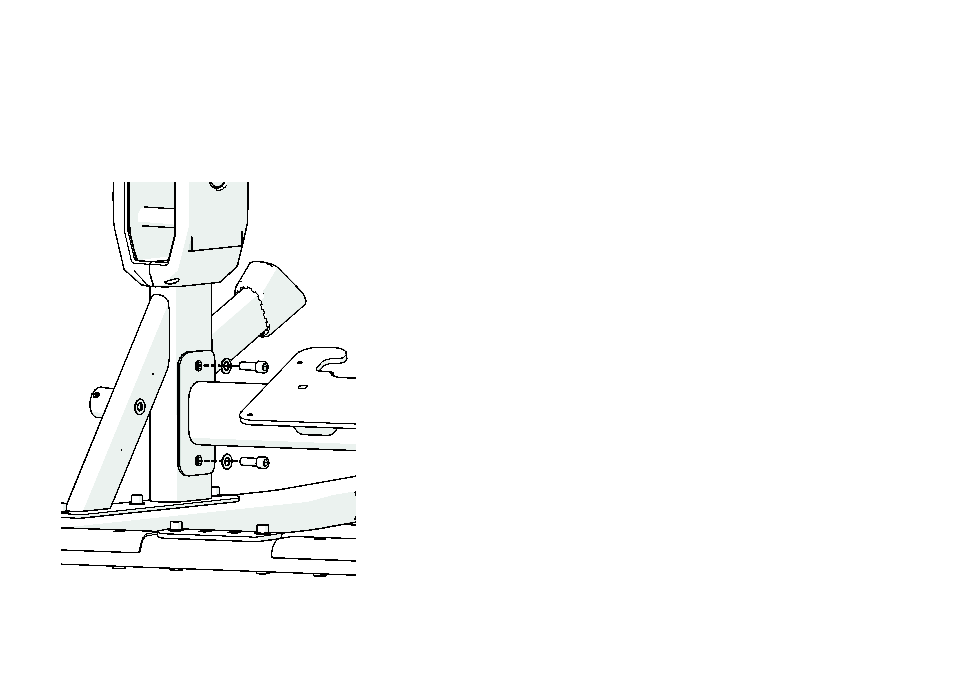

Figure 5: Crossbar attachment
2. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw.
Insert the screw into the upper screw hole at one end of the crossbar and
tighten it partially.
3. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw.
Insert the screw through the lower screw hole and then tighten the screw
partially.
4. Repeat steps 2 through 4 to attach the crossbar on the other side of the
frame.
