Installation/Connection
Connection

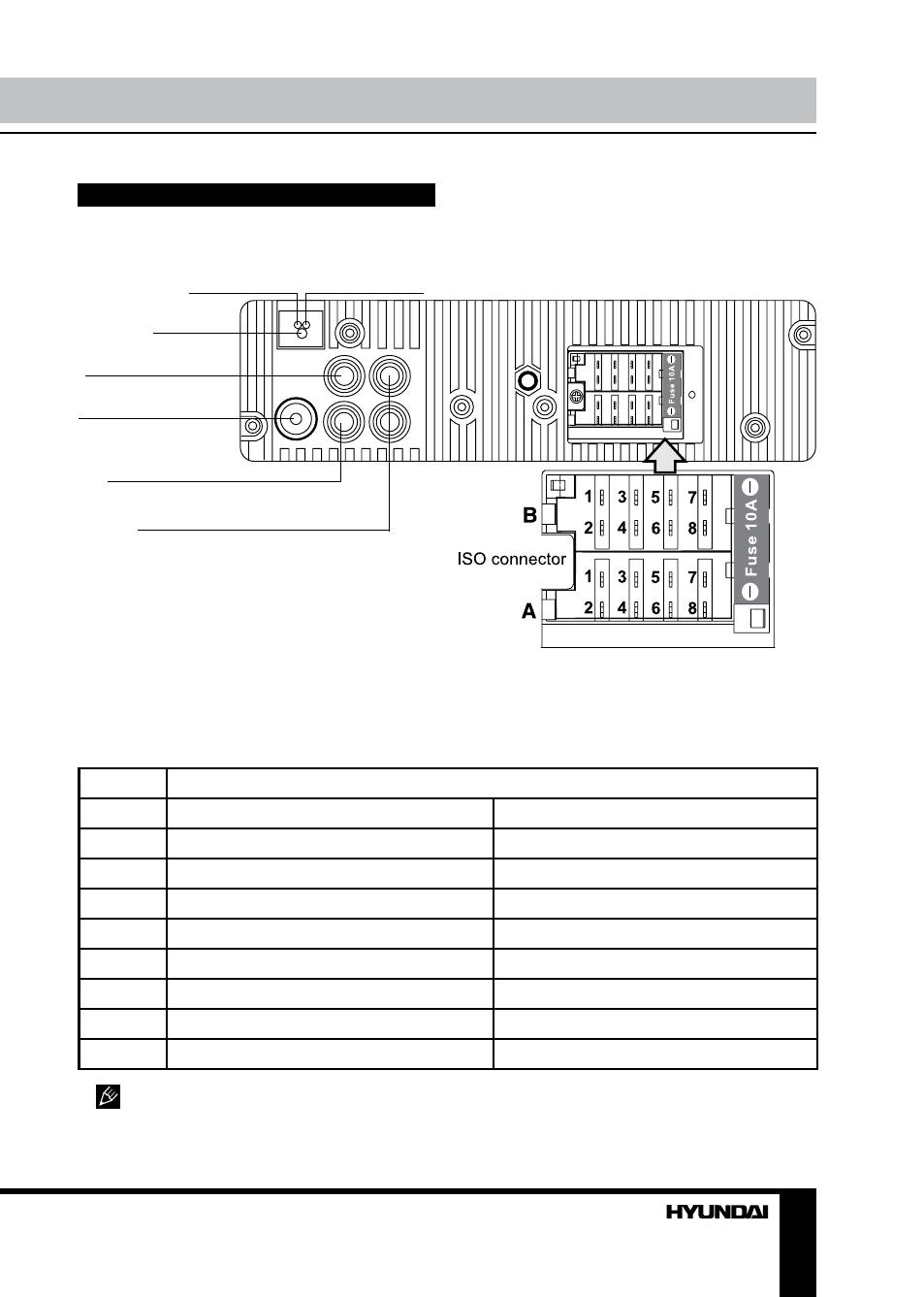

Connection diagram
Radio antenna socket
Video output (yellow)
Rear view camera input (yellow)
RCA line out (left=white; right=red)
TV antenna
Reverse (pink) Parking (purple)
ISO connection table
Location Function
Connector A Connector B
1 - Rear right (+) - Blue
2 - Rear right (-) - Blue/White
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/White
5 Power antenna/Orange Front left (+) - Green
6 Panel light/White Front left (-) - Green/White
7 Ignition key (+12V)/Red Rear left (+) - Brown
8 Ground/Black Rear left (-) - Brown/White
Power antenna wire is intended for power supply of the antenna and for remote control of
an additional amplifier.
