Installation/Connection
Connection

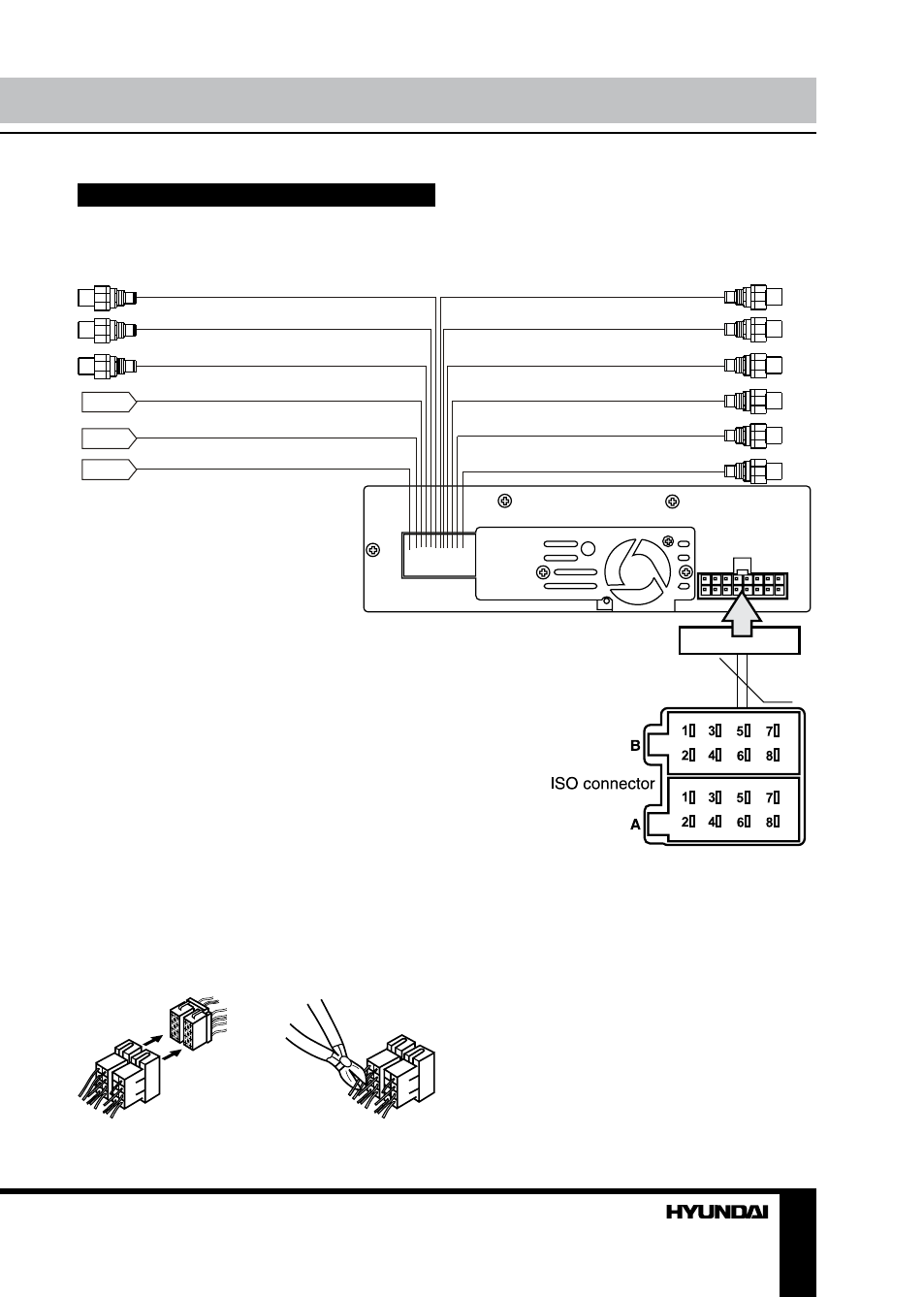

Connection diagram
15
Camera
(black wire with yellow head)
Rear output left
(grey wire with red head)
Subwoofer
(black wire with green head)
Rear output left
(grey wire with white head)
Rear video out
(black wire with yellow head)
Line output front left
(brown wire with white head)
TV antenna
(black wire with black head)
Line output front right
(brown wire with red head)
Radio antenna
(black wire with black head)
GPS antenna (option)
Line output rear left
(grey wire with white head)
Line output rear right
(grey wire with red head)
Using the ISO Connector
1. If your car is equipped with the ISO
connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO
connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.
Cut the connector, connect the colored leads
of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.
1. 2.
