1. Install the sleeve into the dashboard; ensure it is installed with the
correct side and there are no obstacles (wires, dashboard elements,
etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the
size of the dashboard to fix the sleeve in place.

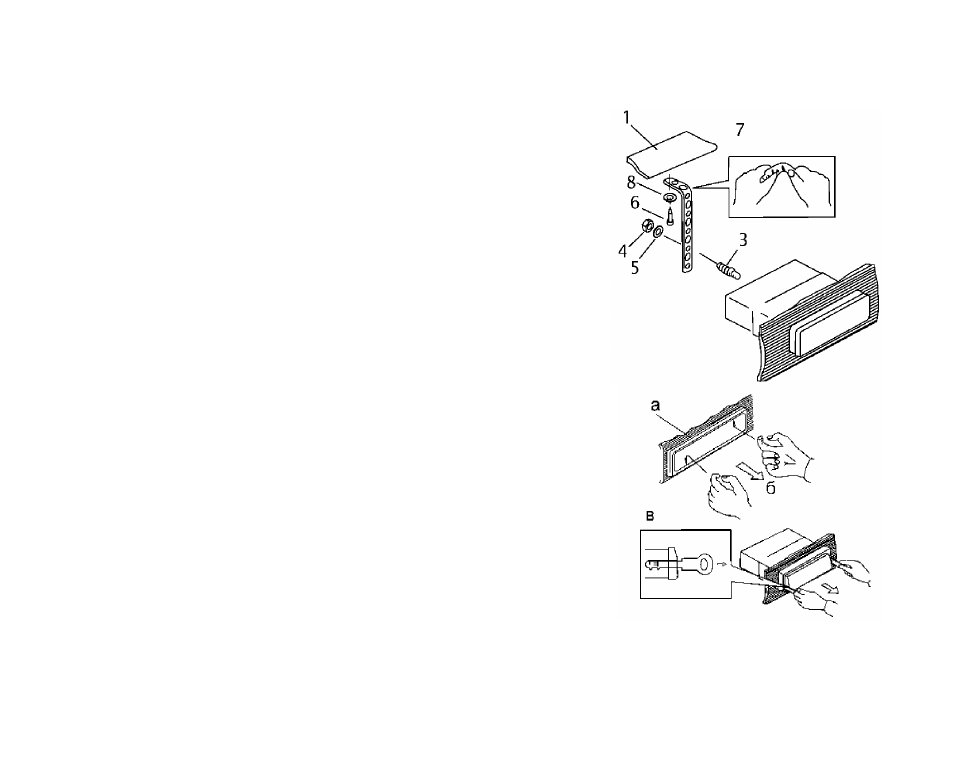

3. Use the metal strap to fix the rear side of the unit. Determine a place
for fixing and install the strap as shown in the picture. You can bend
the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are
correct.
5. Install the unit into the sleeve until the side locks are fixed.
Dismantling the unit
a - Trim frame
6 - Frame uninstall direction
B - Release key insertion
1. Switch ol^ the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame
(apply some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to
click, as shown in the picture. To extract the unit from the dashboard,
pull the release keys or the unit body to pull it out. Before detaching
the unit, ensure it is not fixed with the metal strap.
