Speaker Connections

r Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers.

<Right>

(White)

(White
w/black stripe)

(Gray)

(Gray
w/black stripe)

<Wrong> ■

Use ungrounded speaker only.

The maximum speaker input should be 45 W or more. (If used with the optional

power amplifier, the speaker input should be higher than the maximum amplifier

output.)

The speaker impedance should be 4 - 8 Q..

This unit uses the BTCL circuit, so each speaker should be connected separately

using parallel vinyl insulated cords.

The speaker cords and the power amplifier unit should be kept away (about 30 cm

apart) from the antenna and antenna extension cord.

• Never connect the speaker cord to

the body of the car.

• Do not use a 3-wire type speaker

system having a common earth

lead.

• Do not connect more than one

speaker to one set of speaker

leads.

Fuse

Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or

connecting the unit directly without a fuse, could cause fire or damage to the unit.

If the fuse replacement fails, contact your nearest authorized Panasonic Service Center.

Maintenance

Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for

routine exterior cleaning. Never use benzine, thinner, or other solvents.

CQ-RG133W

19

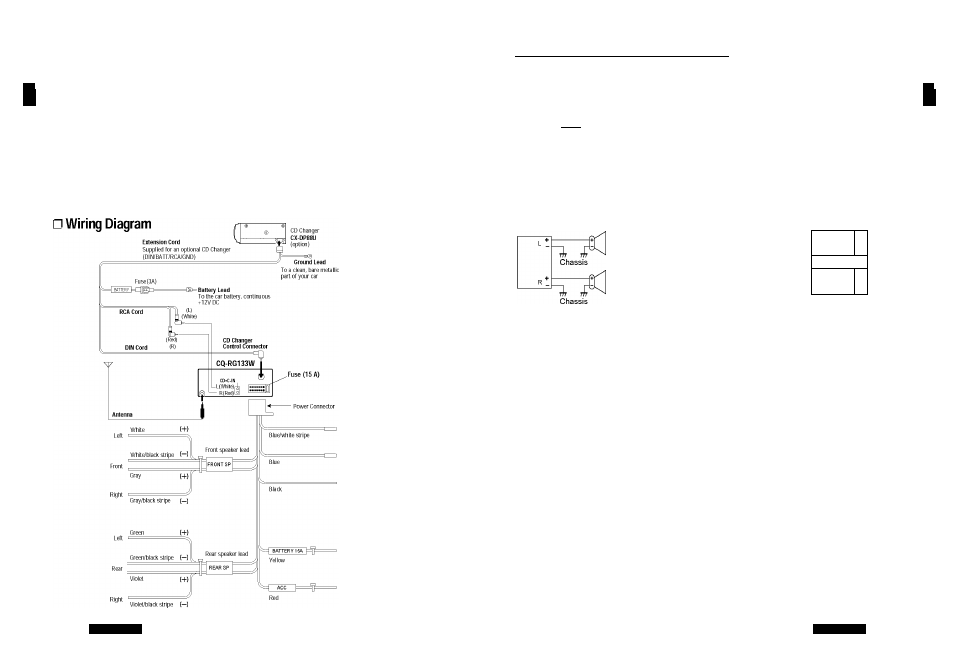

Electrical Connections

Preparation:

• This unit can be connected to an optional CD changer (CX-DP88U).

• For connection to a CD changer, refer to the operating instructions of the CD Changer (CX-DP88U).

Caution:

• This product is designed to operate with a 12 V DC, negative ground battery system.

• To prevent damage to the unit, be sure to follow the connection diagram below.

• Strip about 5mm of the lead ends for connection (only non-ISO connector cords).

• Do not insert the power connector into the unit until the wiring is completed.

• Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and

keep cable terminals free from touching any metal parts.

• Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when

the battery terminals are disconnected.

External amplifier control power lead

Ground lead
(To a clean, bare metallic
part of the car chassis.)

Battery lead
(To the car battery,
continuous +12 V DC)

ACC power lead

(To ACC power, +12 V DC)

18

CQ-RG133W

H

14

H

15

R

L

L

R

R

Not Used
