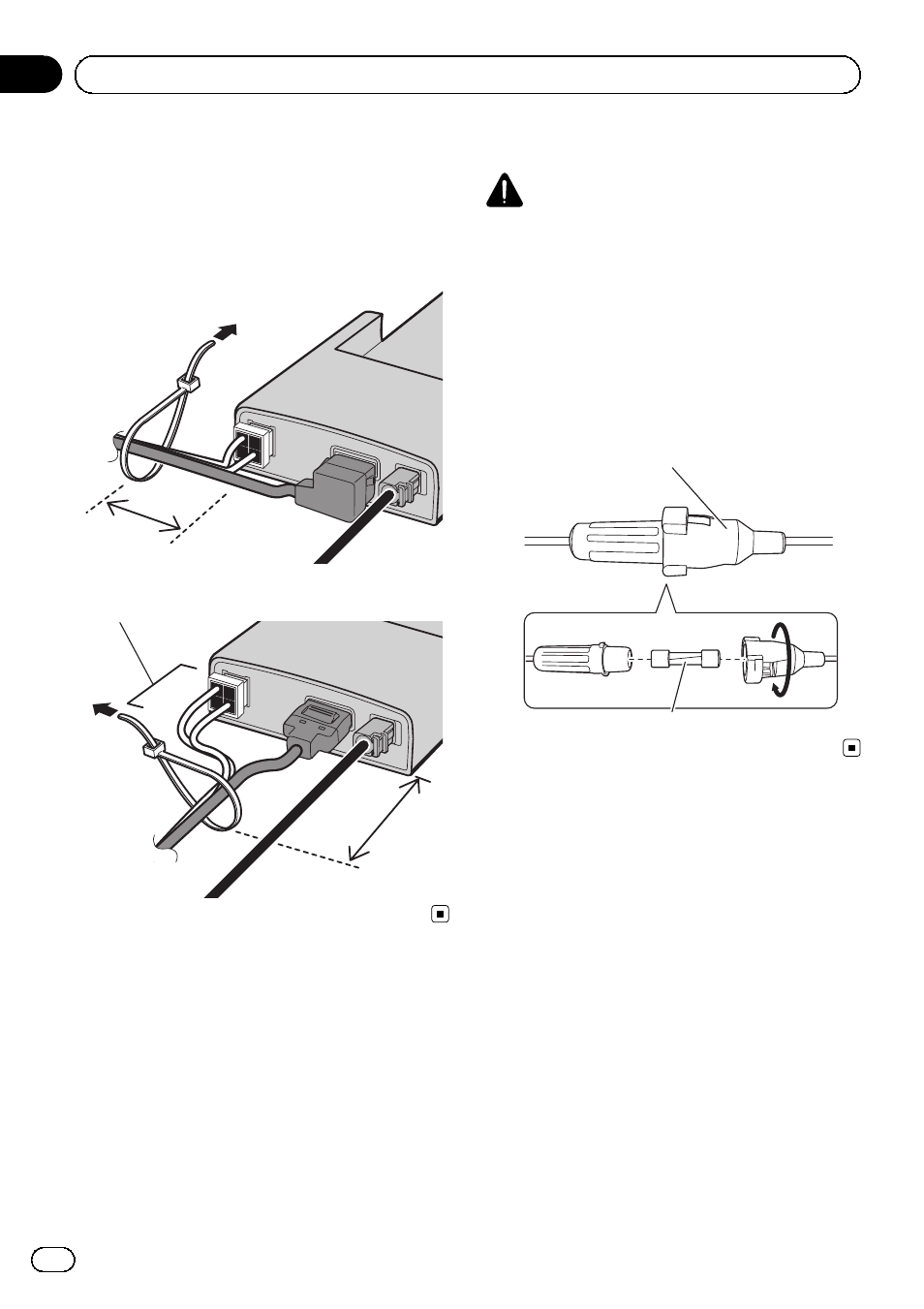

Tying the cables
Tie loose cables in a bundle to prevent the
cables breaking.
% Tie loose cables with the lock tie.
4 cm to 8 cm
Leave enough slack part between each terminal and
tying part.
4 cm to 8 cm
Replacing the fuse
WARNING
! When replacing the fuse, be sure to use one
with the same rating.
! Keep the removed fuse out of the reach of
small children to prevent them from acciden-
tally swallowing it.
% Rotate in the clockwise direction to de-
tach the cap of the fuse holder.
Remove the fuse holder cap slowly so the fuse
does not pop out.
Fuse holder
Fuse (3.15 A, 250 V)
