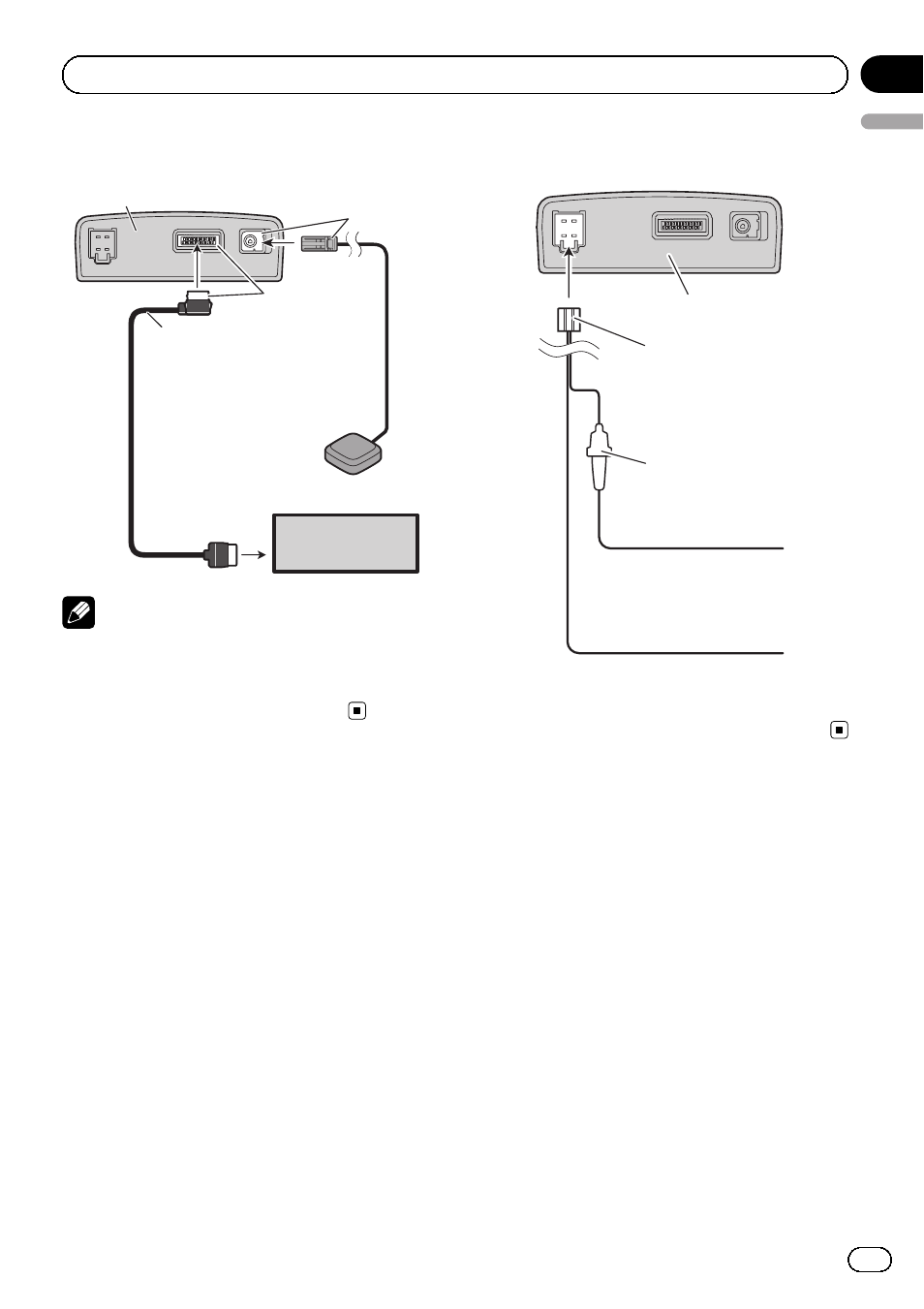

Connecting the system
26-pin cable
(supplied)
3.55 m
2 m
GPS aerial
Green
Yellow
Base unit
AV receiver
Note
The terminal form of the 26-pin cable may differ
depending on the terminal type of the AV receiver.
For details of connection, refer to the installation
manual supplied with the AV receiver.
Connecting the power cord
Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Black (earth)
To vehicle (metal) body.
Power cord
Base unit
Fuse holder
Engb
7
English
Section
03
Connecting the system
