Note

• Check all connections and systems before final

installation.

• Do not use unauthorized parts. The use of

unauthorized parts may cause malfunctions.

• Consult with your dealer if installation requires

drilling of holes or other modifications of the

vehicle.

• Do not install this unit where:

— it may interfere with operation of the vehicle.

— it may cause injury to a passenger as a result of

a sudden stop.

• Do not install the display where it may (i) obstruct

the driver’s vision, (ii) impair the performance of

any of the vehicle’s operating systems or safety

features, including air bags, hazard lamp buttons or

(iii) impair the driver’s ability to safely operate the

vehicle.

• The semiconductor laser will be damaged if it

overheats. Install this unit away from hot places

such as near the heater outlet.

• Optimum performance is obtained when the unit is

installed at an angle of less than 30°.

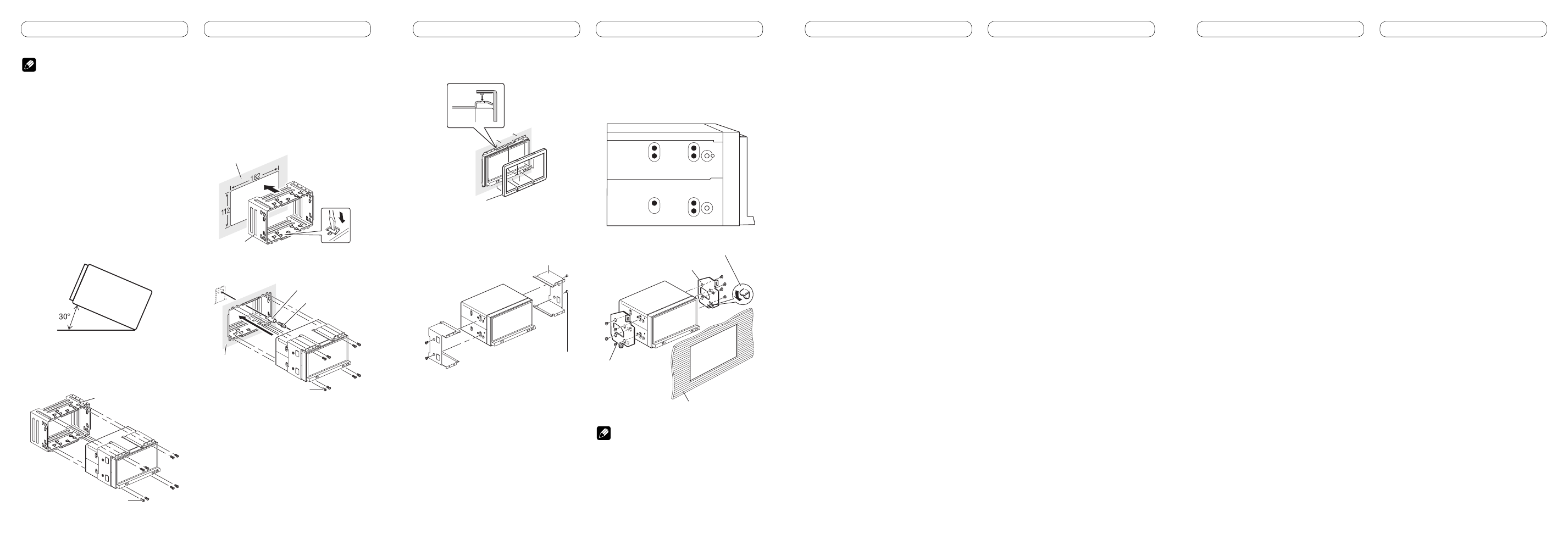

Before installing this unit

Remove the holder.

Loosen the screws (3 mm × 6 mm) to remove

the holder.

Installation with the holder

and side bracket

1. Install the holder into the dashboard.

After inserting the holder into the dashboard,

select and bend the tabs appropriate to the

thickness of the dashboard material. (Install

this unit as firmly as possible using the top and

bottom tabs. To secure this unit, bend the tabs

90 degrees.)

2. Install this unit and fasten the screws.

Rubber bush

Double-ended screw

Screw (3 mm × 6 mm)

Dashboard

Screw (3 mm × 6 mm)

Holder

Dashboard

Holder

3. Attach the trim ring.

Installation using the screw

holes on the side of the unit

1. Remove the side brackets.

2. Fastening the unit to the factory

radio-mounting bracket.

Position the unit so that its screw holes are

aligned with the screw holes of the bracket, and

tighten the screws at 3 or 4 locations on each

side.

Note

In some types of vehicles, discrepancy may

occur between the unit and the dashboard. If this

happens, use the supplied frame to fill the gap.

Trim ring

Side bracket

Screw for fixing the side

bracket (5 mm × 8 mm)

Factory radio

mounting bracket

If the pawl gets in the way,

bend it down.

Dashboard or console

Binding screw or

flush surface screw

Be sure to use the

screws supplied

with this unit.

Installation

Installation
