Connections
Connecting to an AV Device

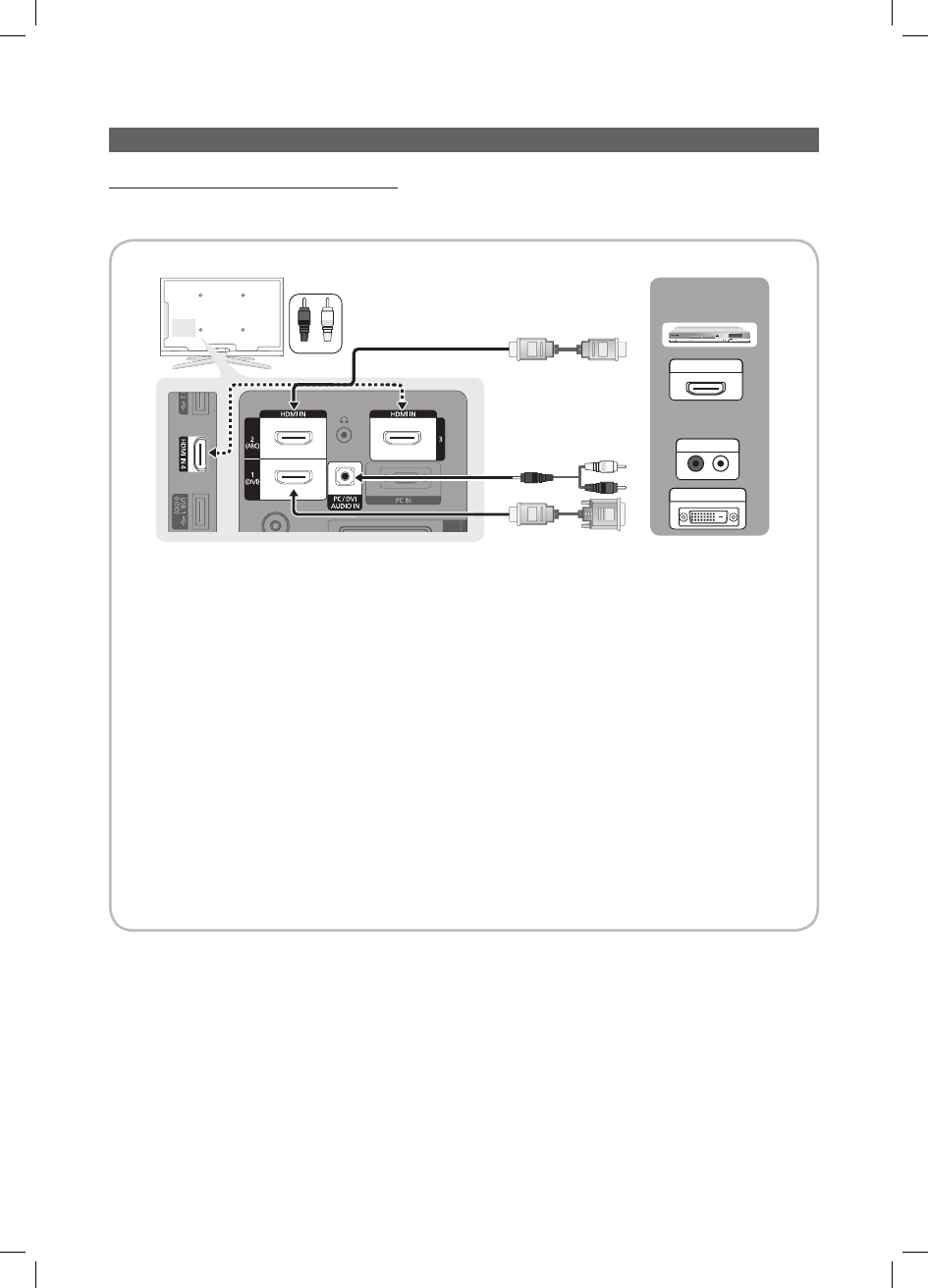

Using an HDMI or HDMI/DVI cable (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver
HDMI IN 1(DVI)
✎
, 2(ARC) , 3 , 4 / PC/DVI AUDIO IN
For better picture and audio quality, connect to a digital device using an HDMI cable. x
An HDMI cable supports digital video and audio signals, and does not require an audio cable.xx x
To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables. –
The picture may not display normally (if at all) or the audio may not work if an external device that uses an
x
older xxversion of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the
external device about the HDMI version and, if out of date, request an upgrade.
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
x
occur.
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the
x
ethernet function via HDMI.
This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the
x
ARC function is supported by the HDMI IN 2(ARC) port only.
If – 3D Auto View is set to On, some functions such as Internet@TV may be disabled. In this case, set
3D Auto View or 3D Mode to Off.
The ARC function allows digital audio to output via the x HDMI IN 2(ARC ) port. It can be enabled only when the
TV is connected with an audio receiver that supports the ARC function.
R-AUDIO-L P R P B Y
DVI OUT
W
R
R-AUDIO-L P R P B Y
HDMI OUT
W G R R W Y B
Red White
R-AUDIO-L P R P B Y
AUDIO OUT
