19 (E)
Installation
 Mounting the camera
[Multi-purpose camera AK-HC1500G ]
When mounting the camera, take sufficient care to ensure that the camera will not come off or fall down.
 Mount the lens onto the multi-purpose camera.
(1) Lenses that can be used
• Use any of the portable lenses which are listed below.
Fujinon HA18, HA1, HA series
Canon HJ17e, HJ1e series
(2) Lenses that cannot be used
• Do not use the large-sized lenses (with a weight of 5 kg or more
and a length of 400 mm or more) with the model numbers which
are listed below since when they are mounted on the camera,
the camera’s overall balance will be upset.
Fujinon HA4 series
Canon HJ40 series, J5 series

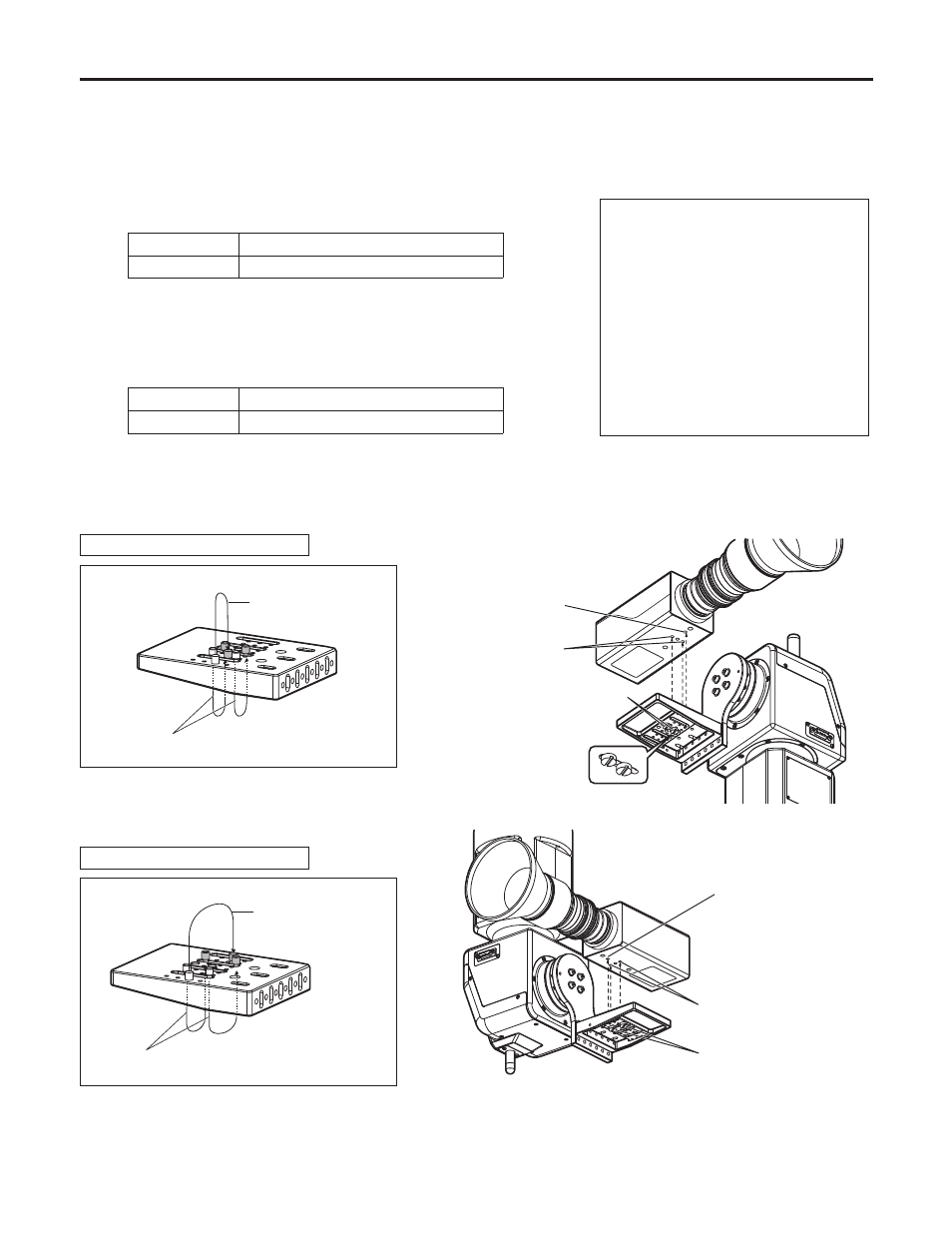

 Align the multi-purpose camera with the guide pins and mount it.
Change the positions of the guide pins and screws of the camera mounting base as shown in the figure below, and then
attach the camera mounting base to the rotary arm.
 Do not use the rubber piece.
 Tighten up the two mounting screws securely using the tool.
 Just as for a convertible camera, change the positions of the guide pins and screws of the camera mounting base as shown
in the figure above, and then attach the camera mounting base to the rotary arm.
Set the guide pin.
Mount the camera
with the mounting
screws.
Mounting screws
Mount the camera with
the mounting screws.
Set the guide pin.
Mounting screws
For a stand-alone installation
Camera Mounting base
Change the positions
of the guide pins.
Change the positions of the camera mounting
screws. (Change them over to the second row.)
For installation on the ceiling
Camera Mounting base
Change the positions
of the guide pins.
Change the positions of the camera mounting
screws. (Change them over to the third row.)
Note  The current rating of LENS
I/F () connector is 500 mA
(max).
Even with the lenses in a
series which can be used,
any lens whose maximum
current consumption
exceeds 500 mA cannot be
used.
Concerning the maximum
current consumption of
the lens, contact the lens
manufacturer.
