18 (E)
ENGLISH
Installation

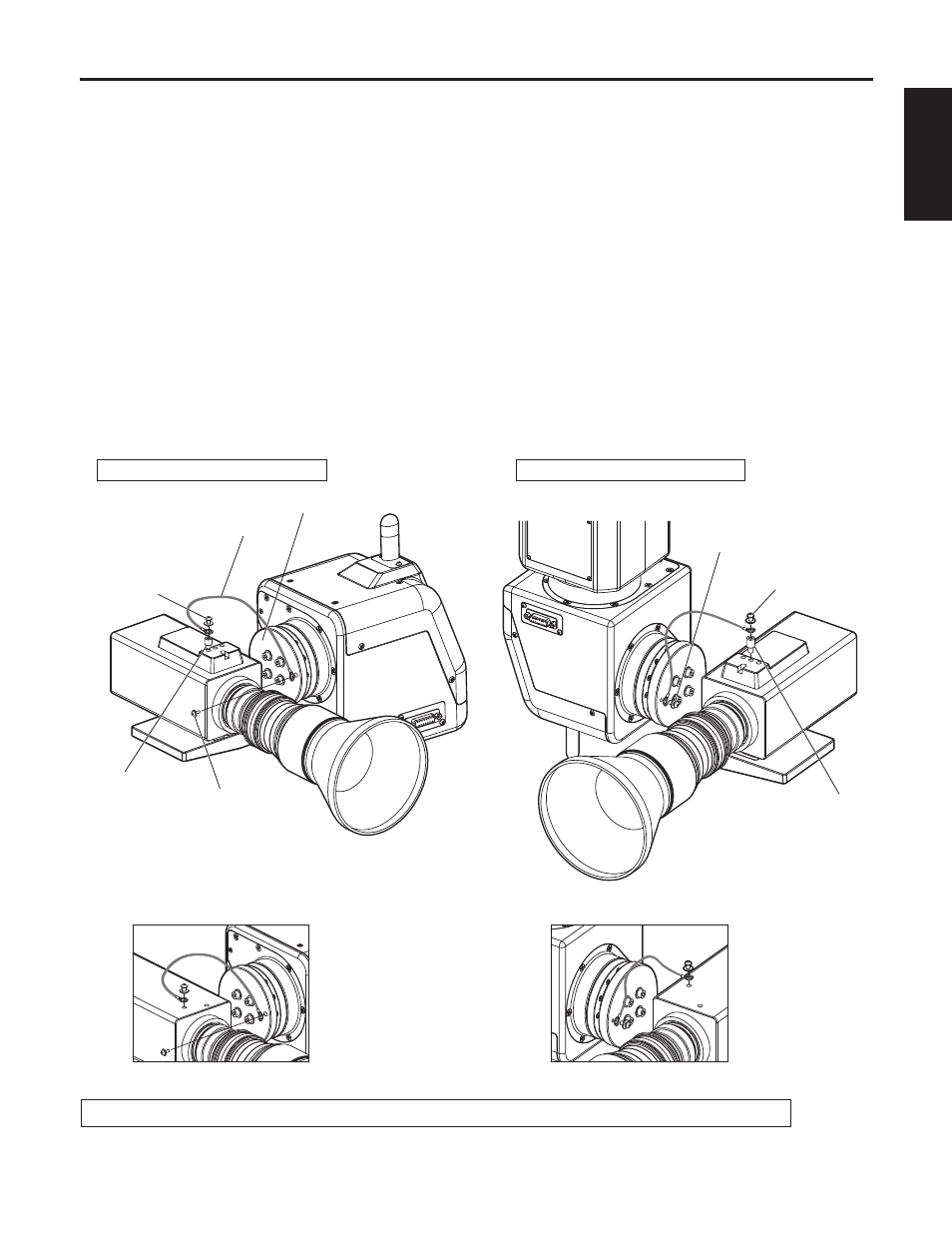

 Attaching the wire
[Convertible camera AW-E350/E650/E655/E750/E860 ]
The camera comes with a wire for preventing the camera from dropping. Follow the instructions below to use it to couple the
camera to the pan-tilt head.
When mounting the cameras with fan (AW-E655, AW-E750, AW-E860)

Use the wire mounting screw (M48 mm with flat washer and spring washer) to attach one end of the wire to the pan-tilt
head’s arm.
 Mount the mounting spacer on the top panel of the camera. (The mounting spacer is provided with the camera as an accessory.)
 Use the wire mounting screw (M48 mm with flat washer and spring washer) to attach the other end of the wire to the screw
hole of the mounting spacer.
When mounting the cameras without fan (AW-E350, AW-E650)

Use the wire mounting screw (M48 mm with flat washer and spring washer) to attach one end of the wire to the pan-tilt
head’s arm.
 Use the wire mounting screw (M48 mm with flat washer and spring washer) to attach the other end of the wire to the screw
hole of the top panel of the camera.
 Be absolutely sure to tighten up the mounting spacer and screws securely using a tool such as a screwdriver.
 Camera: AW-E350, AW-E650  Camera: AW-E350, AW-E650
For installation on the ceiling
M48 mm wire
mounting screw
with flat washer and
spring washer
Mounting spacer
( supplied with
AW-E750)
M48 mm
wire mounting
screw with flat
washer and
spring washer
 Camera: AW-E750
For a stand-alone installation
M48 mm wire
mounting screw
with flat washer
and spring washer
Mounting spacer
( supplied with
AW-E750)
Wire
Arm
M48 mm wire
mounting screw
with flat washer
and spring washer
 Camera: AW-E750
