Installation/Connection
7

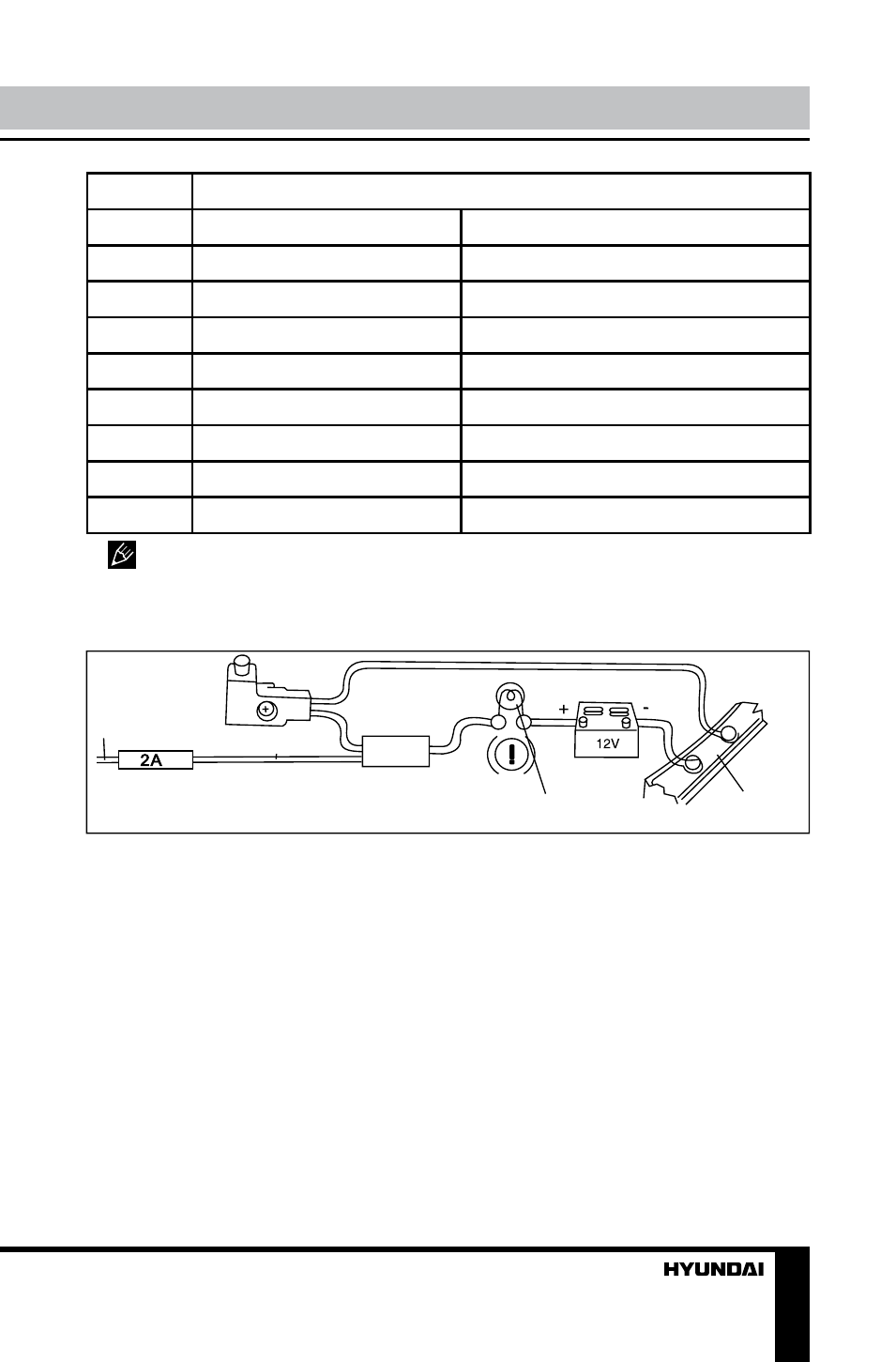

Location Function
Connector B Connector A
1 Rear right (+) - Blue -
2 Rear right (-) - Blue/White -
3 Front right (+) - Grey -
4 Front right (-) - Grey/White Battery +12V/Yellow
5 Front left (+) - Green Power antenna/Orange
6 Front left (-) - Green/White -
7 Rear left (+) - Brown Ignition/Red
8 Rear left (-) - Brown/White Ground/Black
Power antenna wire is intended for power supply of the antenna and for
remote control of an additional amplifier.
Parking wire connection
Parking brake
lead
Brake light Car frame
Battery
Purple Wire
If parking cable is connected to hand brake switch, the video display of the
monitor will be controlled by driving status, system setup and input video sources.
When the car is moving ahead, if the video is played, the screen shows warning.
The warning screen will prevent the driver from watching images.
