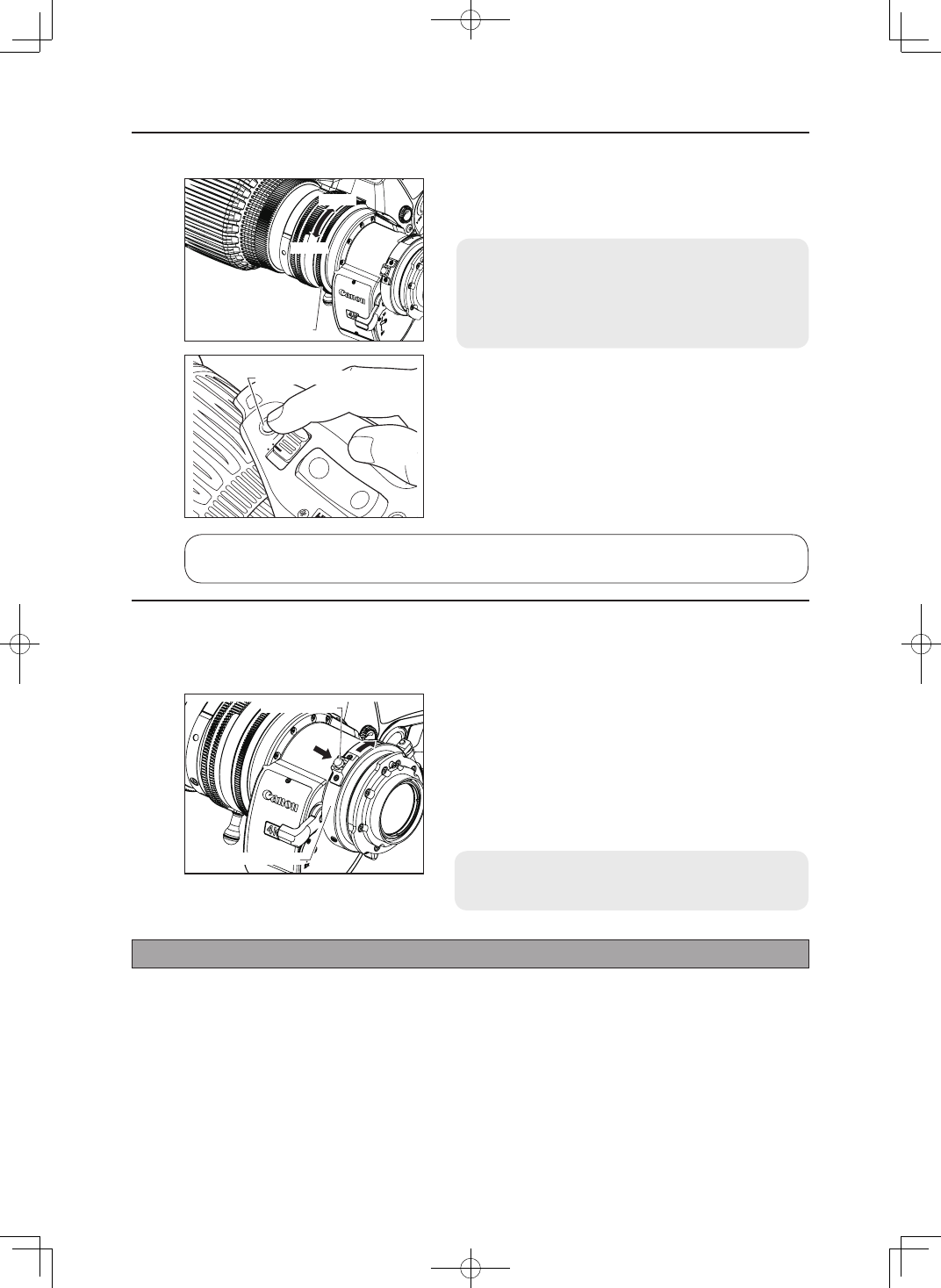

Страница 49: 5 operation
E17
To operate the macro, press the macro button to unlock the
macro ring. While holding it down, turn the macro ring at the
rear of the lens clockwise as viewed from the camera side to
allow macro shooting.
1
Set the lens to the widest angle by manual or servo zoom
operation.
2
Bring the object into focus by turning the macro ring.
Macro operation is also possible at any zoom position other
than the widest angle, but the object distance increases.
Slide the iris operation mode change-over switch to the "M"
position. The iris operation is performed by turning the iris ring
on the lens body.
NOTE
The iris operation mode change-over switch must be set
to the M position before performing manual iris operations.
The lens may be damaged if manual iris operations are
forcibly performed with the knob at the A position.
IRIS
I.G.
A
M
T
W
Instant Auto-Iris Switch
5-4-2. Manual Iris Operation
When the instant auto-iris switch is pressed during manual iris
operation mode, the iris changes to automatic operation mode
while the switch is held down.
Macro Button
Macro Ring
5-5. MACRO OPERATION
In macro shooting, the object distance becomes shorter than the normal minimum object distance (M.O.D.).
The minimum object distance by macro operation for this lens is 10mm at the widest angle.
In macro shooting, when zooming to change the focal length, the focal point varies.
The multi-point focus shooting technique uses this characteristic. The focal point is shifted by the zoom
operation. Follow the steps bellow :
1
Zoom in to a far object, and bring it into focus by normal focus operation.
2
Zoom out to a near object and bring into focus by macro operation.
3
Zoom in to the far object again while not touching the macro button set by above step 2, and bring into
focus again by normal focus operation.
Multi-point Focus Shooting
5 OPERATION
Close
Open
Iris ring
The adjustment and the setting can also be made on the information display. Refer to "Information
Display Manual" in the supplied CD-ROM.
