KayakDD-2 Цифровой Эфирный Микшер
Руководство по Инсталляции и Обслуживанию 41
Fastening screw
Lock nut
Washer
Panel Fastening Procedure:
The length of the screw is dependent on the
thickness of the tabletop! The M4 screw
should be approx. 25 mm of (1 inch) longer
than the thickness of the tabletops.
Screw lock nut completely on the fastening
screw and put on a washer.
Then turn the fastening screw from below
through the drillings in the table in the
thread drillings of the frame.
At least turn the locking nut up to fix the
panel.
M4 thread drilling
Thread drillings
for panel fastening
(17.24 inch)
(0.2 inch)
(2.95 inch)
(10.55 inch)
799
Bold dimensions are [mm]

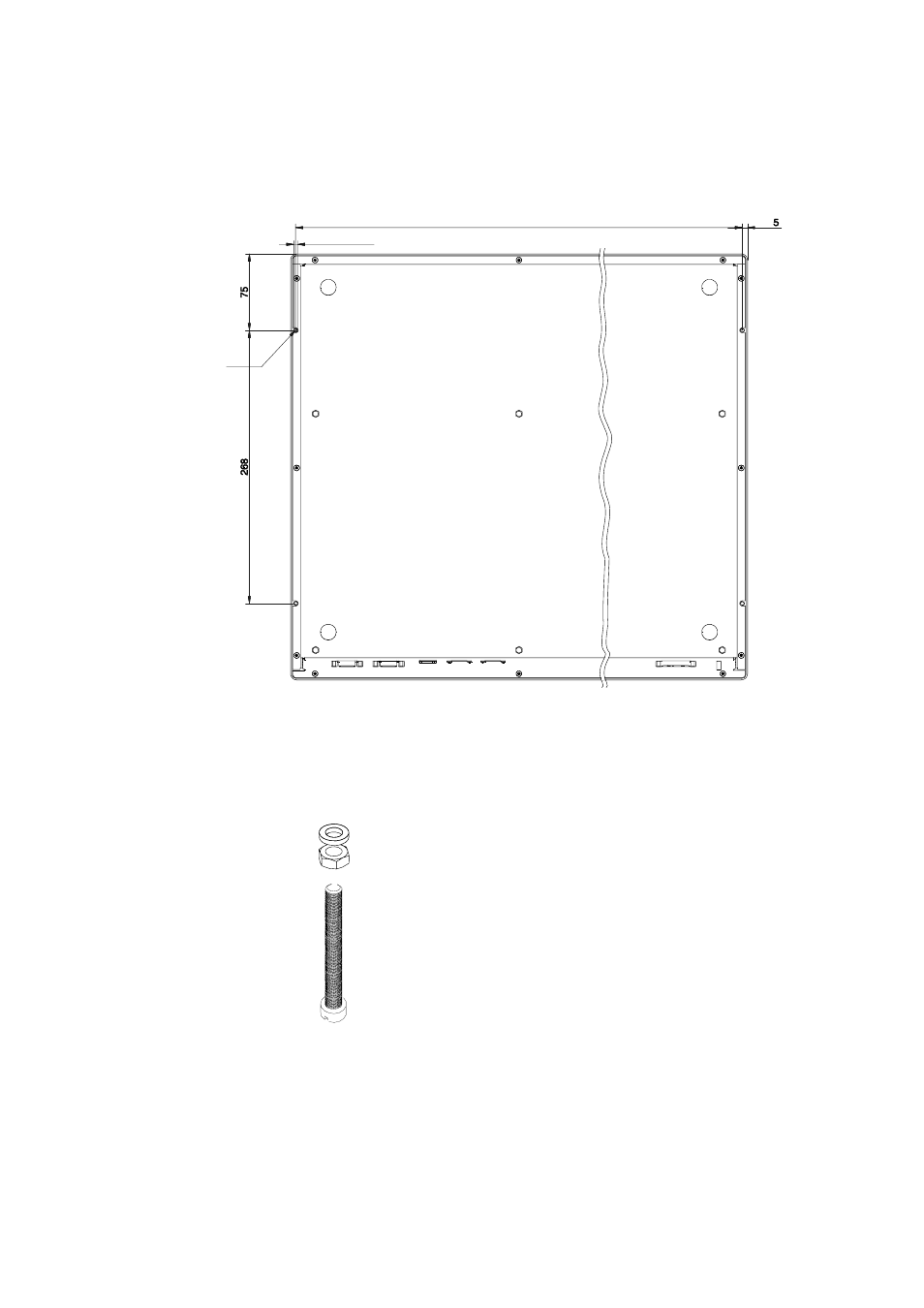

Рисунок 11
Вид снизу, Расстояние между точками крепления
Рисунок 12
Процедура крепления панели
Процедура Крепления панели
Длина болтов зависит от толщины
столешницы! Длина ботов М4 должна
быть на 25 мм длиннее толщины
столешницы. Наверните гайку на болт до
конца и положите шайбу. Вверните болт
снизу сквозь отверстие в столе в гнездо
панели. Зафиксируйте крепление гайкой.
Шайба
Гайка
Болт
крепления
