Cybex Free Weight Owner’s Manual
Page 10
SEE SERIAL NO
DECAL PLACEMENT DETAIL
SEE CYBEX
DECAL DETAIL
SEE DECAL
PLACEMENT DETAIL
A
A
1.00±.12
SECTION A-A
CENTER DECAL
ON TUBE.
SERIAL NO.
DECAL DETAIL
2X 2.50±.12
CYBEX DECAL DETAIL
SCALE 1:4
2X CENTER DECAL
ON TUBE.
1.00±.12
CENTER DECAL
ON TUBE.
DECAL DETAIL
SCALE 1:4
16260 Barbell Rack
4X
12X
12X
9
4
3
8
5
5
1
2
X4
1 1 11040-790 DECAL, MADE IN U.S.A.
2 4 16010-311 FOOT PAD
3 1 16260-200 W/ MAIN FRAME BARBELL RACK
4 4 16260-300 BAR PLATE
5 2 3900-433 DECAL, CYBEX 1.00 HOR
6 1 51198 WARRANTY BOOKLET (NOT SHOWN)
8 12 HN704901 LOCKNUT, .375-16 NYLON
9 12 JC700420 BHSCS .375-16 X 1.25
ITEM QTY PART NO. DESCRIPTION

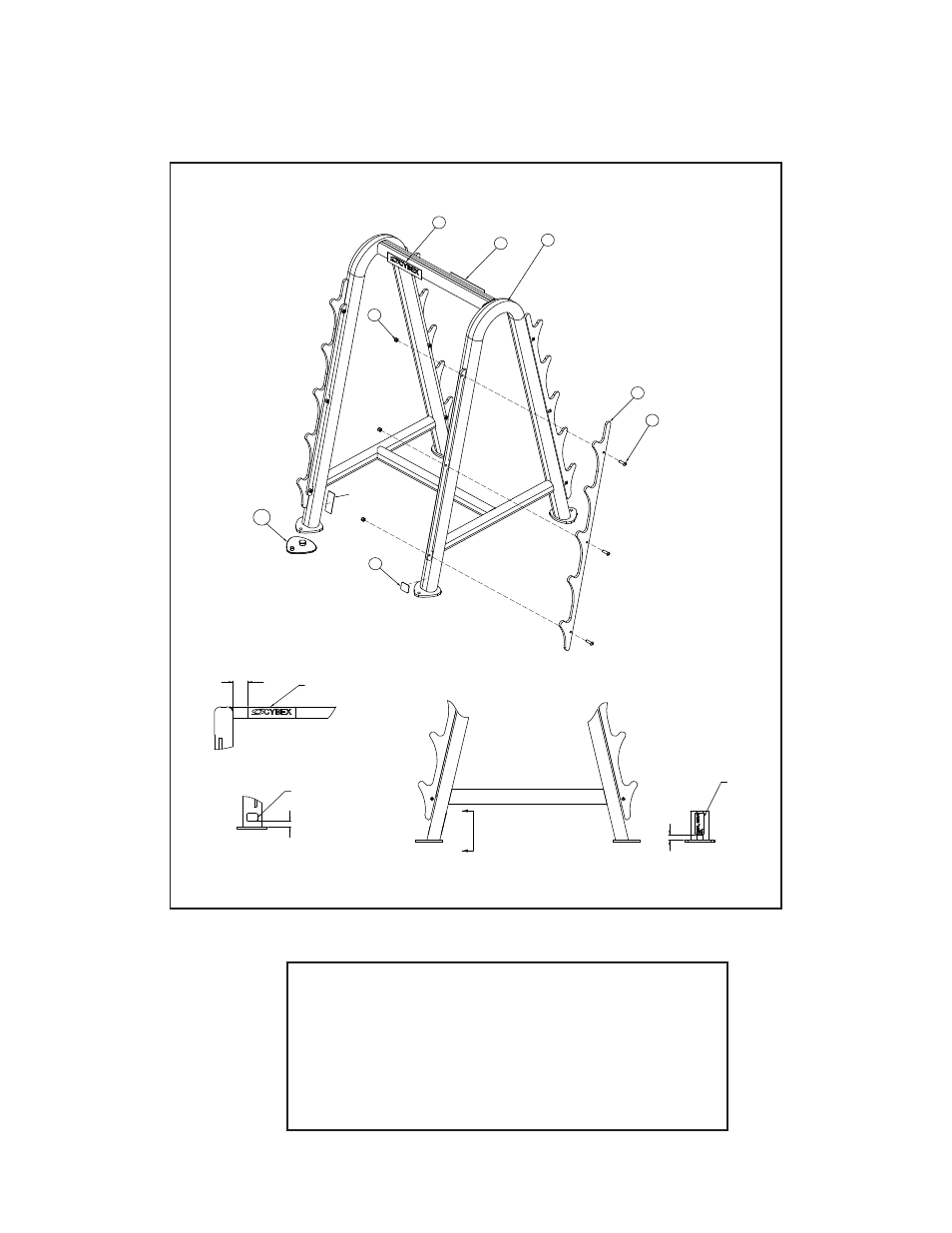

16260 MAIN ASSEMBLY/DECAL DETAIL
