Emergency control shall be used if the remote control board is lost or
broken, or batteries are low. Using an emergency control button situated
on the indoor unit control panel you may select COOL or AUTO mode of
the conditioner work. Pressing this button, select a mode of the
conditioner work: AUTO, COOL, the conditioner is OFF, AUTO again, etc.

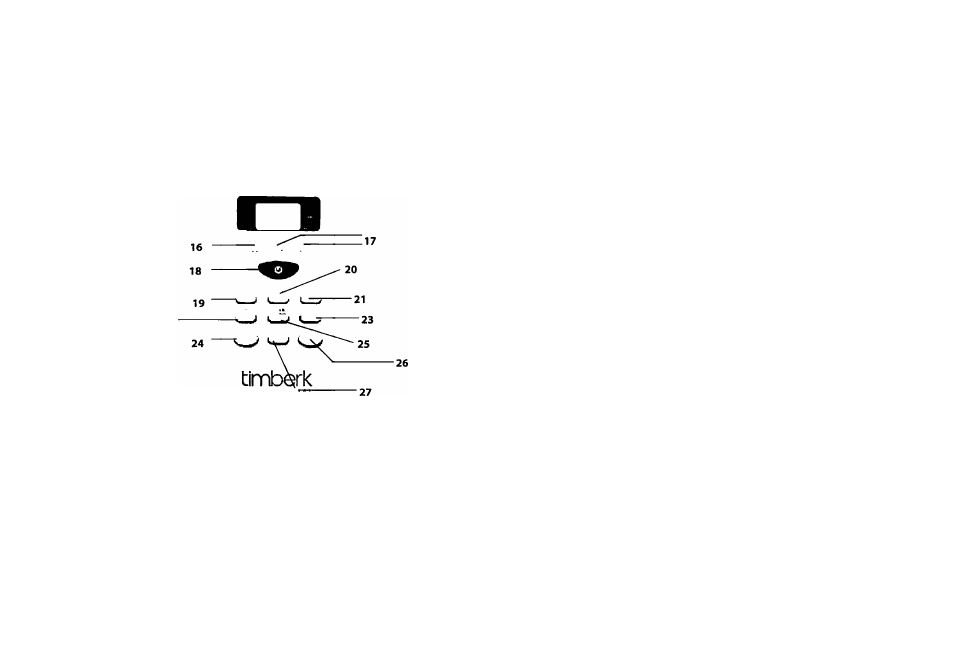

Figure 3. Description of the remote control board
22
p n O F E 6 6 I 0*r
16. Select-mode button "MODE". Using this button, you may select a
required mode: Auto, Cool, Dry, Heat, Fan.
17. Button "TEMP" (decrease/increase) for setting of the required air
temperature from 16 to 32°C. Using this button, you may set the required
airtemperature indoors.
18. Button"ON/OFF". Using this button, you may turn the conditioner on or
off.
19. Button "FAN SPEED". Using this button, you may select rotation speed
oftheindoorunitfan:"Auto","High","Middle","Low".
In "Auto" mode the fan speed will change automatically. In dry mode the
fan speed will remain unchanged "Low".
20. Button "SWING". Using this button, you may regulate position of air-
relief blinds and forward treated air to various directions.
21. Button "AIR FLOW". Using this button, you may turn the blind swinging
on and off.
22. Button "TIMER". Using this button, you may set the time for turning the
conditioner on and off (from 1 to 24 hours). If the conditioner is off, you may
set the timefor automatic turning on in a set time interval. And vice versa, if
the conditioner is on, you may set the time for automatic turning off.
23. Button "SLEEP". Using this button, you may turn the sleep mode on and
off. In this mode thefan speed will be low.
24. Button "TURBO". Using this button, you may turn the turbo mode on
and off. In this mode the conditioner shows the maximum cooling (in cool
mode) or heating (in heat mode) capacity. This mode cannot be used in
modes: Auto, Dry, Fan.
25. Button "HOLD". Using this button, you may lock all other buttons of the
control board, including the button on indoor unit control panel.To unlock
this mode you should press this button once more.
26. Button"CLEAN".This button is not used forthis series of conditioners.
27. Button"LAMP".This button is not used forthis series of conditioners.
Indication of the control board display shall correspond to selected modes.
Work with remote control board
Mounting and replacement of batteries: mount two LR03 alkaline
batteries, according to polarity indicated on the remote control board.
In order to avoid malfunction of the remote control board do not insert
used batteries or batteries of various types.
If the conditioner is not used for a long time, remove batteries from the
board or else electrolyte may leak and damage the board.
In normal operation of the conditioner average service life of batteries will
be about a half-year.
Replace batteries, if command receiving is not confirmed with an audio
signal, or if the display does not show a sign of command transfer.
When generating commands from the remote control board, point an IR-
radiator on a remote-control signal receiver situated on the indoor unit.
Hold the remote control board at the distance of no more than 8 m from
the indoor unit.
