In models with covered terminal block"
In mix models a cable supplied with a plug with your oven (H05 V V-F 3G 1.5 mm2)
* If o coble without o plug is provided together with your oven
Take care to connect as below:
Brown cable = L (Live)
Blue cable = N (Neutral)
Green/Yellow cable = E (Earth )
* If your oven is supplied without supply cord use schema-1 to
choose supply cord and use schema-ll for installation of cord.
The cable length should be max 2m long for isolation safety.
■o
oo
o
Loo
-OihO
AC 220/230/240 V
-0-0
—0-0
—o«o
-^0^0
L
q
-O
—OihO
3N AC 380/400/415 V
*

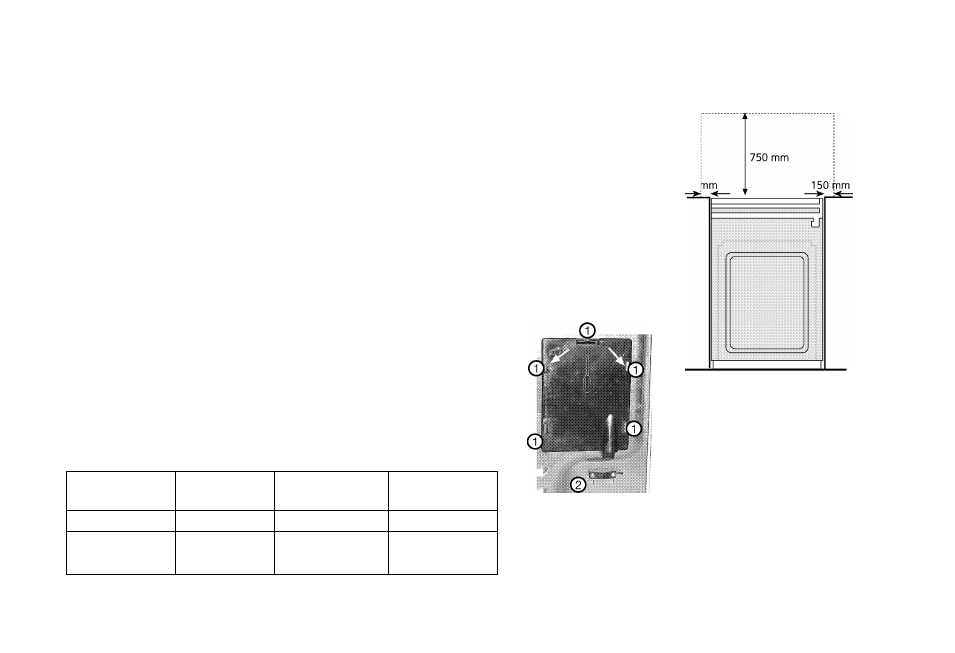

Open the terminal block cover (1).
* Connect the supply cable according to wiring diagram on the rear cover.
* Assembly the terminal block cover to its place.
* The mains cable must pass through the cable clamp (2).
* Fix the supply coble to main body with two screw via coble tightener (2).
Your oven is suitable for single and three phase connection.
* The mains cable should be routed away from the appliance and in particular
ventilation slots, the vent outlet and should not be obstructed when pushed
in to position between the appliance and the wall and/or cabinet.
-^0-0
Loo
-Oo^O
0^0
Loo
-OihO
2N AC 380/400/415 V
Schema II
Connection Type
Monophase
Three phase
with Neutral
Two phase
with Neutral
Voltage
220/2301
240 V
380/400/415 V
380/400/415 V
Supply cord type
(max 2m long)
3x2,5 mm2
H05 VV-F
5x2,5 mm2
H05 VV-F
4x2,5 mm2
H05 VV-F
Schema I
Location for models
having any top gas
burner
150
Adjacent side walls above the
appliance must not be nearer to the
cooker than 150 mm and should be of
heat resistant material. Leave at least
750 mm learance above the hotplates.
The appliance should be located on a
level surface.
The two front feet can be adjusted as
required. To ensure that your appliance
is standing level adjust the two front
feet by turning clockwise or
counterclockwise until the product is in
firm contact with the floor.
