High level input connecting
The high level input(s) should only be used when your receiver lacks RCA outputs.
If the RCA outputs are not present, connect the speaker outputs from the receiver to the high level input
connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.

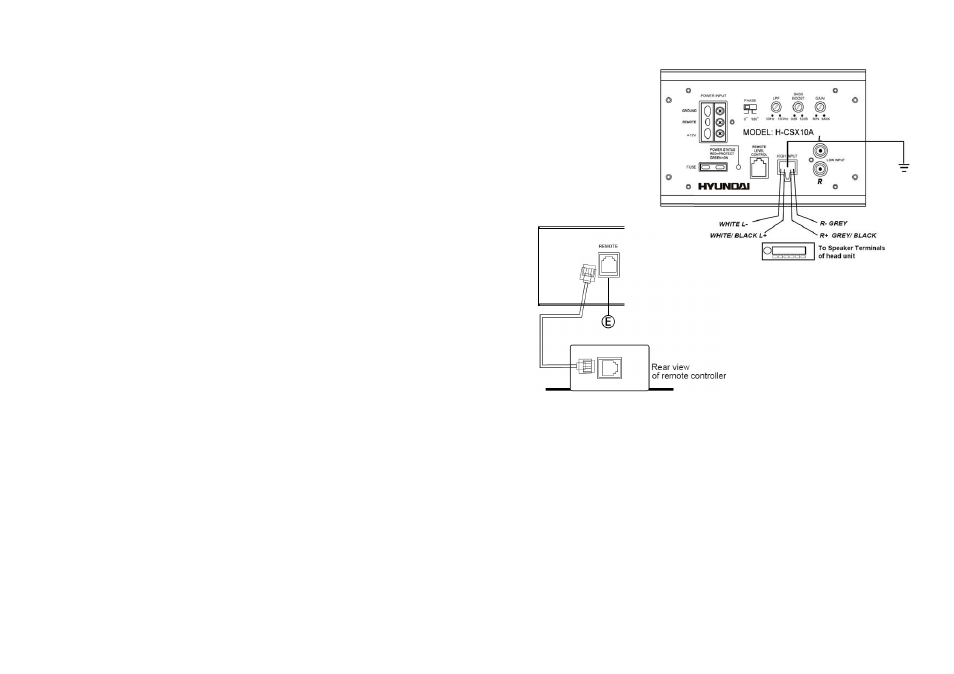

Connecting scheme see on the pic. 3.
Note: Inputs may be high level (from the receiver's speaker) or low level (from special low level outputs).
Low level is preferred for best performance.
Attention: Use only the low level or high level input, do not use both at one time.
Remote control connecting
Connecting scheme see on the pic. 4.
Connect the remote control to REMOTE jack on subwoofer.
Fuse connecting
Power fuse protect both the amplifier and the electrical system of your car from
fault conditions. If you must replace a fuse in your HYUNDAI powered
subwoofer, use a fuse of exactly the same type and rating. Using a different
type or rating of fuse may result in damage to your amp or vehicle or cause a
fire.
Pic. 4
Pic. 3
