The 3 Types of Power
Supplies
To try out the Movie Camera at home, we recommend
that you use the AC Adaptor Q.
O AC Adaptor (supplied)
• To use the Movie Camera indoors.
•To charge the Battery. (-» 18)
© Battery (supplied)
• To use the Movie Camera outdoors, and also
indoors when there is no AC mains socket nearby.
(■+18)
0
Car Battery Cord (optional) or Car Battery Charger
(optional)
• To use the Movie Camera in a car.

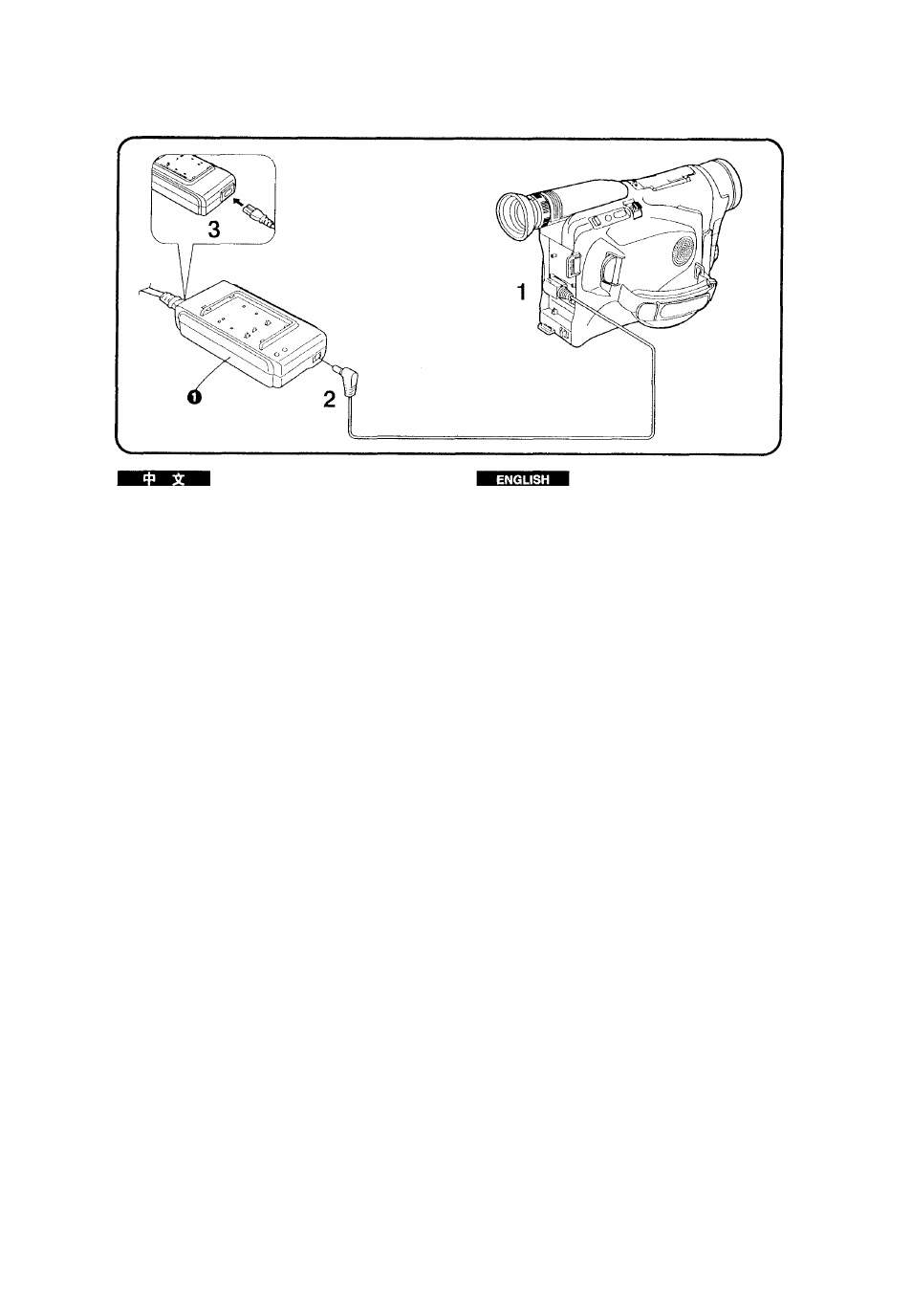

Using the AC Adaptor as Power
Supply Unit
1
Connect the DC Input Cable to the
[DC IN] Socket on the Movie Camera.
2
Connect the other end of the cable to
the [DC OUT] Socket on the AC
Adaptor.
3
Connect the AC Mains Cable to the AC
Adaptor and to an AC mains socket.
• The AC Adaptor features automatic universal voltage
adjustment (AC 100-240 V, 50/60 Hz), therefore, there
is no need for any manual voltage adjustment lor use in
other countries.
