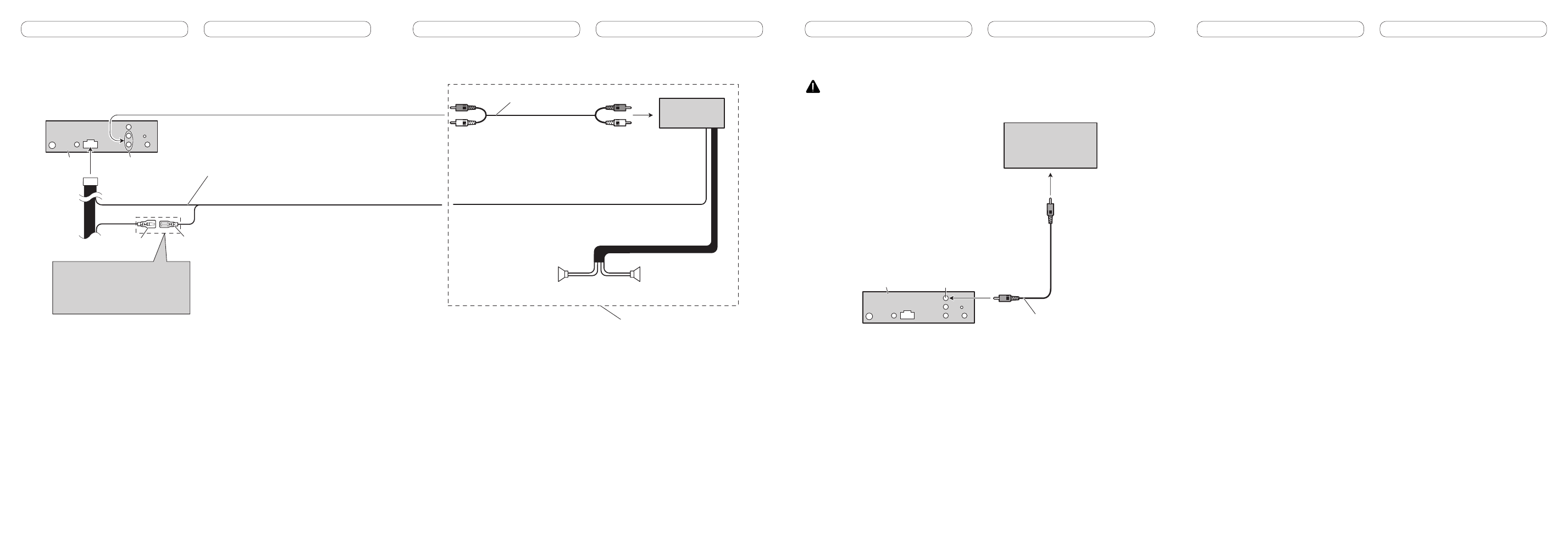

Connecting to separately sold power amp
Connect with RCA cables
(sold separately)
Perform these connections when
using the optional amplifier.
Power amp (sold
separately)
System remote control
Blue/white
Connect to system control terminal of the
power amp (max. 300 mA 12 V DC).
Blue/white (6*)
Connect to auto-antenna relay control
terminal (max. 300 mA 12 V DC).
The pin position of the ISO connector
will differ depends on the type of
vehicle. Connect 5* and 6* when Pin 5
is an antenna control type. In another
type of vehicle, never connect 5* and 6*.
Blue/white (5*)
Rear speaker
Rear speaker
This product
Rear output
When using a display connected video outputs
WARNING
Never install the display in a location where it is visible to the driver while driving.
Display with RCA
input jacks
(sold separately)
To video input
RCA cable
(sold separately)
1.5 m
This product
Video output
