KRAMER ELECTRONICS, LTD. 26
The TP-123-od / TP-124-od Transmitter / Receiver Set
21
4. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity on both 1 the TP-123-od and the
TP-124-od.
5. If required, on the TP-124-od adjust 2 the video output signal level and/or
cable compensation equalization level.

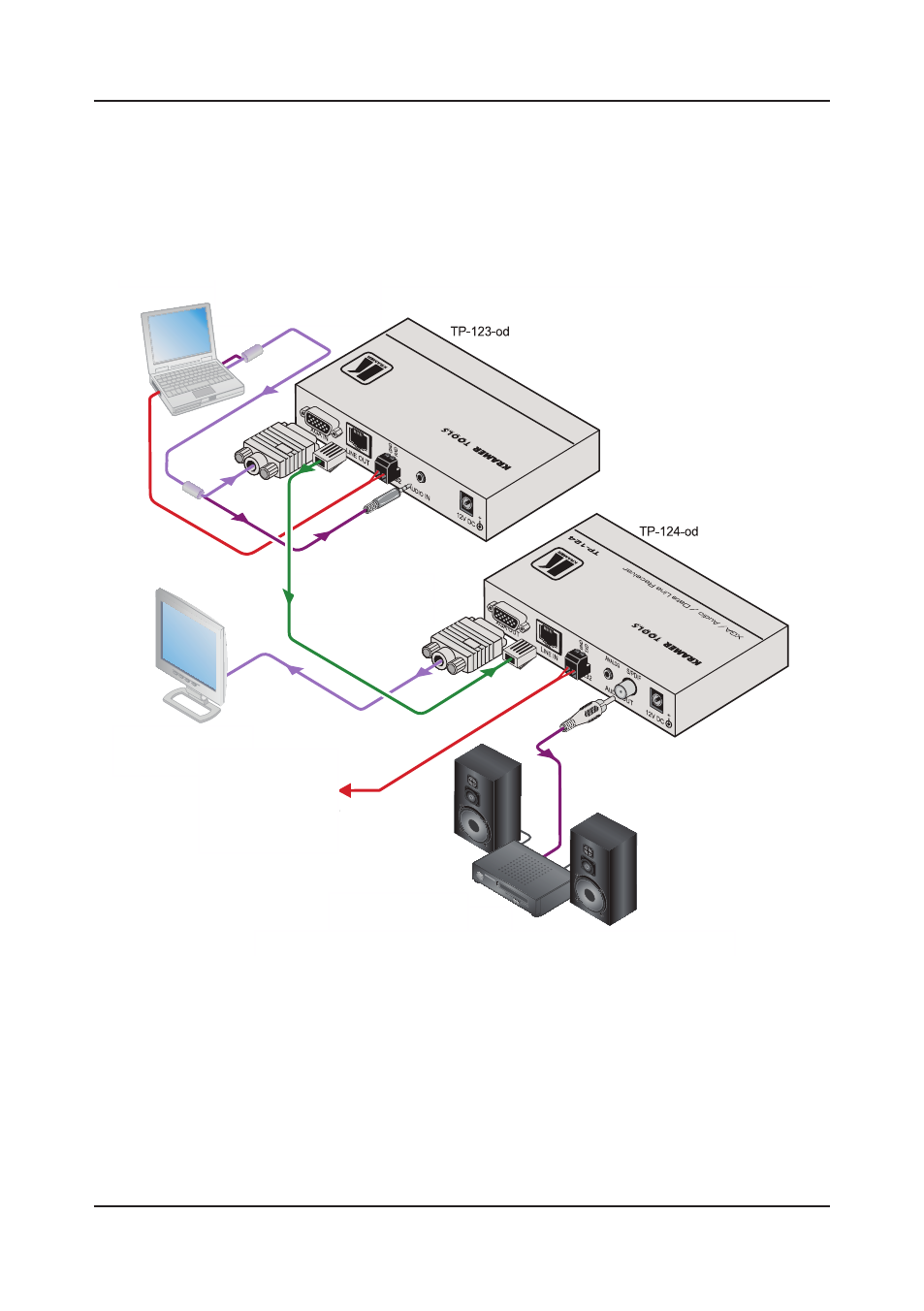

Figure 9: Connecting the TP-123-od and the TP-124-od
1 If you cannot connect the power to both the TP-123-od and TP-124-od, you can just connect the power to any one unit
2 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
Рис. 9. Подключение TP-123-od к TP-124-od
Источник.сигнала.VGA./.
аудиосигнала./.команд.
управления.RS-232
Набор.передатчик/приемник.TP-123-od./.TP-124-od
Кабель.STP.
(длина.более.
100.м)
Дисплей
Устройство,.
управляемое.
командами.RS-
232.(например,.
коммутатор) AV-ресивер
