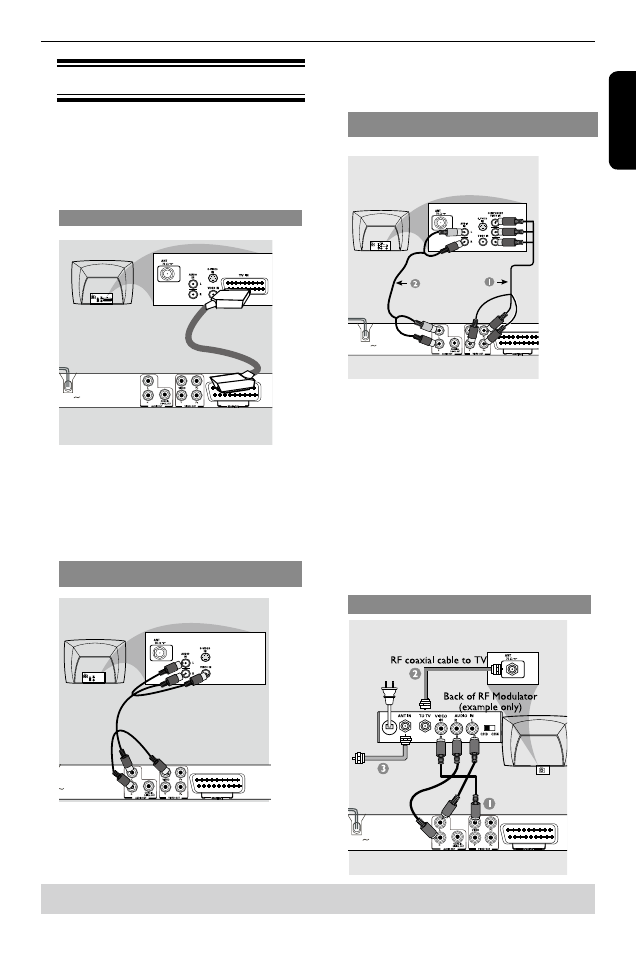

Connecting to television
I MPORTANT!
– You only need to make one video connection
from the following options, depending on the
capabilities of your television.
– Connect the DVD player directly to the
television.
Using SCART socket
MAINS
A Use the scart cable to connect the DVD SCART OUT
to the corresponding scart input socket on the TV
(cable not supplied).
If your DVD player will not be connected to a Stereo
System or AV Receiver to hear better sound, scart is
enough for both audio and video connections.
Using Composite Video Jack(CVBS)
MAINS
A
Use the composite video cable (yellow) to connect
the DVD player' s VIDEO(CVBS) jack to the video
input jack(or labelled as A/V in, Video In or
Composite) on the TV(cable supplied).
To hear the sound of this DVD player through your
TV, use the audio cables(white/red)to connect
AUDIO OUT(L/R)jacks of the DVD player to
corresponding AUDIO IN jacks on the TV(cable
supplied).
Using Component Video Jacks(Y, P
B
, P
R
)
MAINS
IMPORTANT!
-The progressive scan video quality is only
possible when using Y, P B, P R and a progressive
scan TV is required.
A Use the component video cables (green/blue/red) to
connect the DVD player' s Y, P B, P R jacks to the
corresponding Component video input jacks (or
labelled as Y, P b, P r ) on the TV (cable not supplied).
B Use the audio cables (white/red) to connect AUDIO
OUT (L/R) jacks of the DVD player to the
corresponding AUDIO IN jacks on the TV(cable not
supplied).
C Proceed to page 11 for detailed Progressive Scan set
up.
Using a RF modulator
MAINS
Connections
Helpful hint: Before making or changing any connections, make sure that all the devices are
disconnected from the power outlet.
