I/2 ON/STANDBY
-Turns the player on or switches it to
standby mode
Disc tray
- Place a disc here
Display
- Shows information about the current status
of the DVD Player
MAINS ~
- Connects to a standard AC outlet
AUDIO OUT (Left/Right)
- Connects to Audio input of a TV, an amplifier,
receiver or stereo system
COAXIAL(Digital audio out)
- Connects to coaxial Audio input of a digital audio
equipment
DVD display
The indicators vary depending on the kinds of disc you play.
Multifunctional indicator (indicates
operating status or messages, etc.)
Chapter/Track
number indicator
 "----" may also appear in other situation.

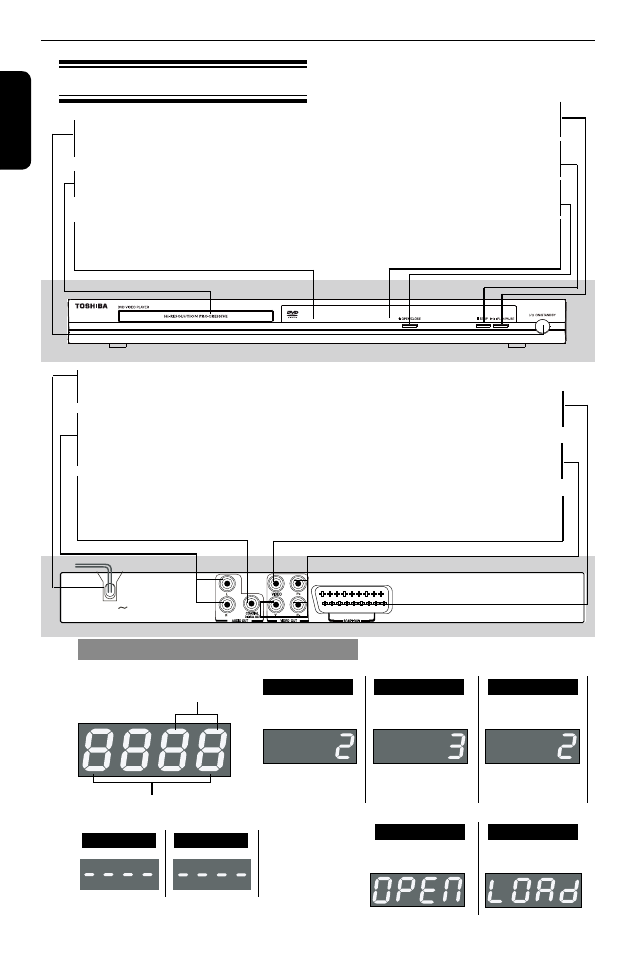

Product Overview
Front and Rear panels
B/X PLAY/ PAUSE
-Starts or pauses playback

STOP
- Stops playback
ç OPEN/CLOSE
- Opens or closes the disc tray
IR Sensor
- Points the remote control towards this sensor
SCART OUT
- Connects to SCART input of a TV
Y, P
B,
P
R
Component Video Out
- Connects to Y, P B, P R input of a TV
VIDEO Out (CVBS)
- Connects to CVBS Video input of a TV
MAINS
OPEN LOAD/CLOSE
DVD video disc VIDEO CD Audio CD
•During playback: •During playback: •During playback:
Example Example Example
Some discs may only
display chapter
numbers.
Some discs may only
display track
numbers.
Some discs may only
display track
numbers.
Bad disc No disc
