Power connection
Inputs

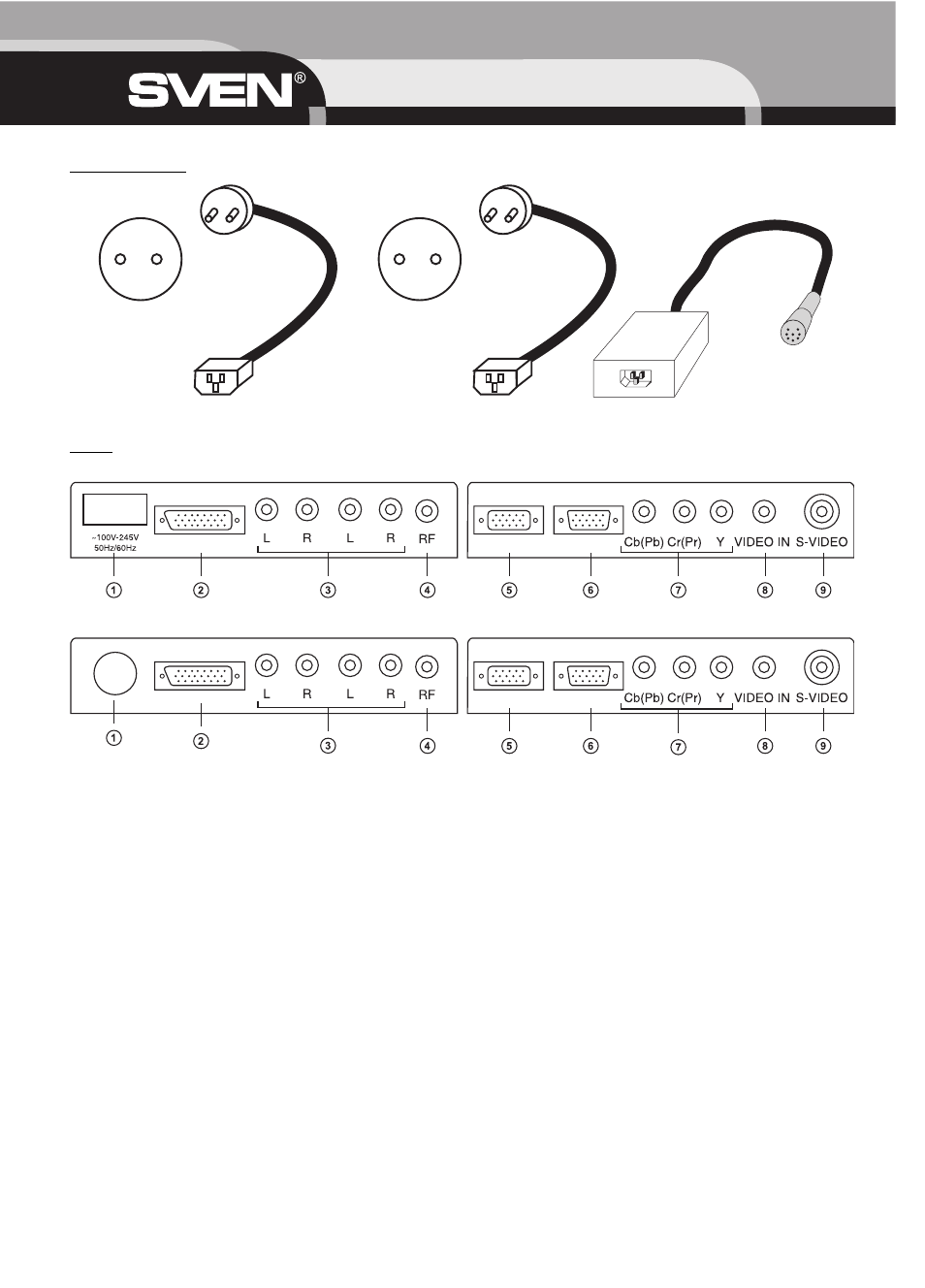

This Rear Panel is used in 26” or 32” LCD.
This Rear Panel is used in 40” LCD.
Remarks:
a
Power Socket.
b
SCART AV RGB input terminal: SCART input receivable.
c
AV Audio input terminals: VCD/DVD/VHS audio signal receivable.
d
RF input terminal: open/close circuit TV antenna or camera signal receivable.
e
Digital RGB (DVI) input terminal: DVI digital RGB signal receivable.
f
Analog RGB (PC) input terminal: PC analog RGB signal receivable.
g
DVD component input terminals: DVD (YCbCr/YPbPr) component signal receivable.
h
AV Video input terminals: VCD/DVD/VHS video signal receivable.
i
S Video input terminals: VCD/DVD S Video signal receivable.
Z
The use of a cable TV service connected to the RF input terminal will ensure consistent quality of reception across all channels. Use
of an outdoors antenna is another option but you must ensure that a proper antenna type and positioning is applied for your loca-
tion. The dealer staff or that of the service agent will recommend you the most adequate antenna for your area.
High quality 75 Om coaxial cable is recommended for the best result. It can eliminate the interference caused by radio and miscel-
laneous waves. Close proximity between the antenna and power cable should be avoided; lightning prevention should be taken into
account when installing the outdoor antenna.
