Installation/Connection
6
Connection

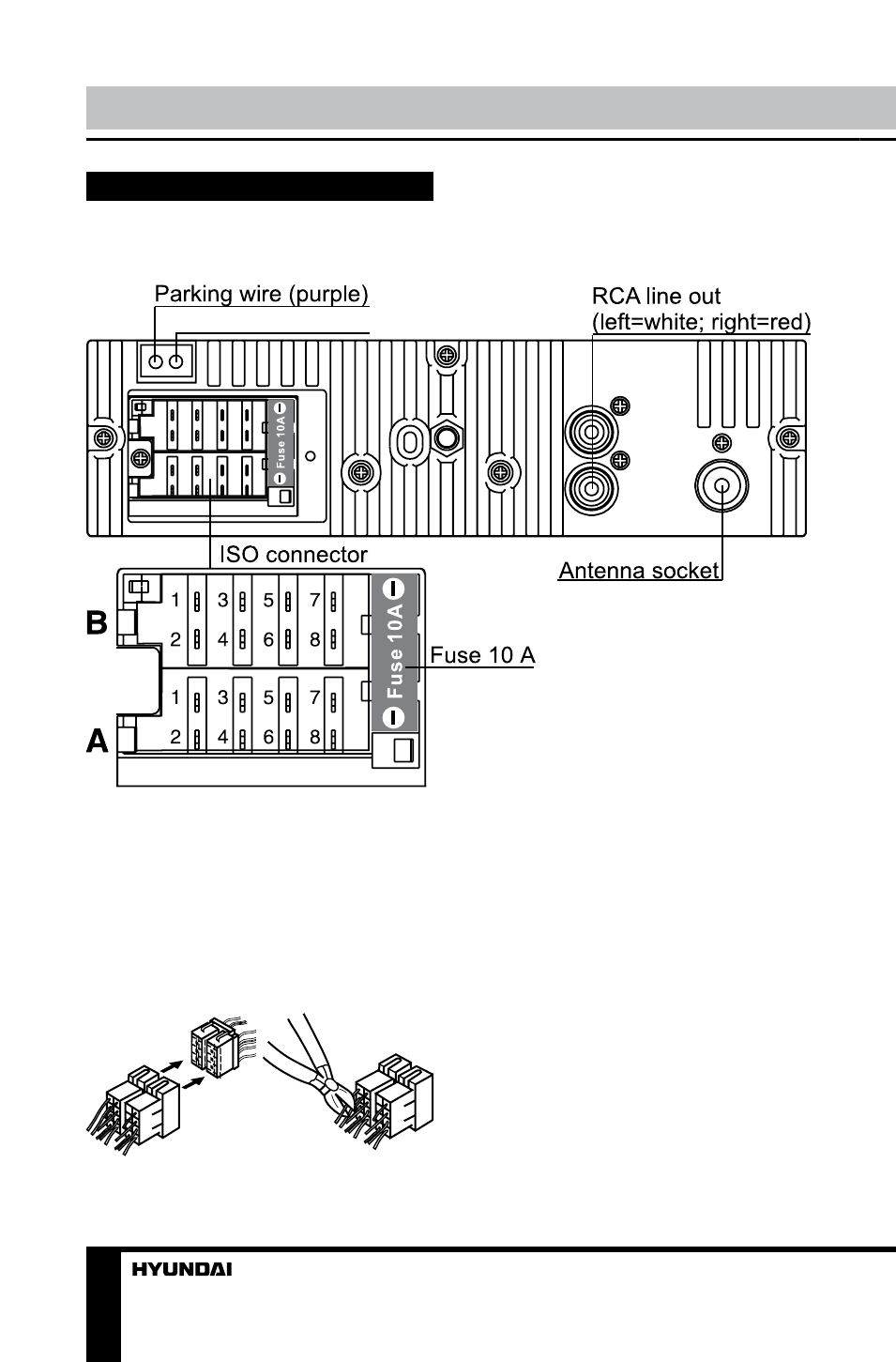

Connection diagram
Video output (Yellow)
Using the ISO Connector
1. If your car is equipped with the
ISO connector, then connect the ISO
connectors as illustrated.
2. For connections without the ISO
connectors, check the wiring in the
vehicle carefully before connecting,
incorrect connection may cause
serious damage to this unit.
Cut the connector, connect the
colored leads of the power cord to the
car battery as shown in the color code
table below for speaker and power
cable connections.
